Dynemech Wedge mounts, Series DB are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.

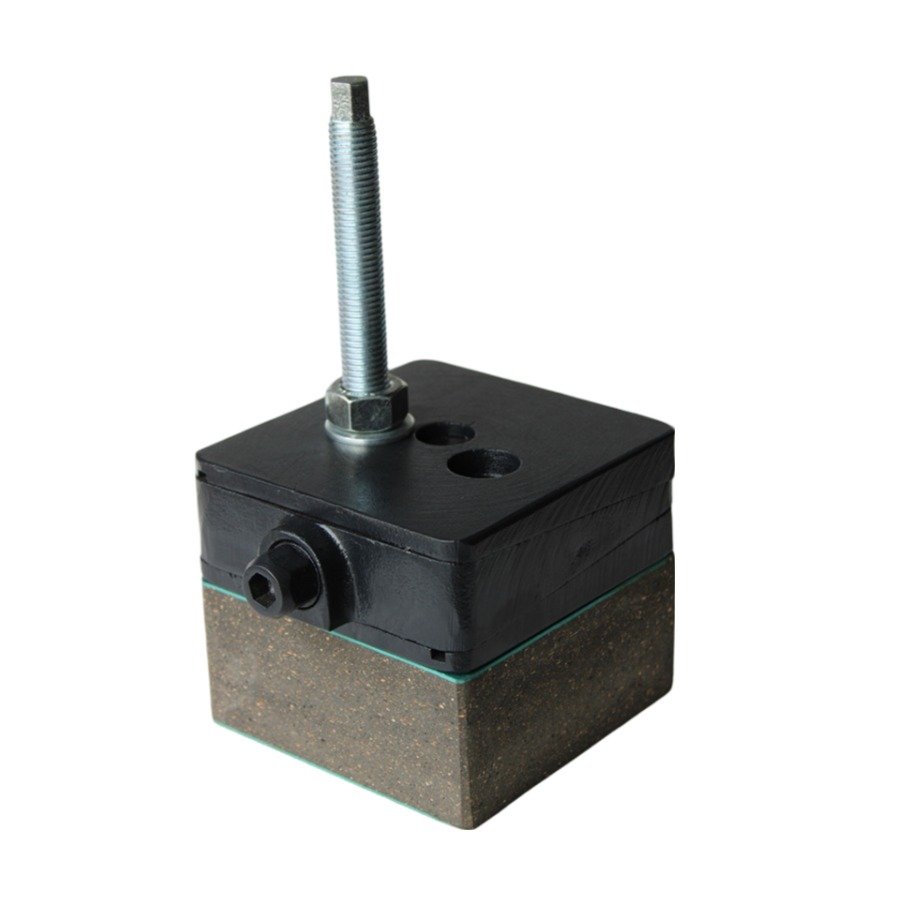

DB3-hs4-FG-M20x2.5×150-S-Z-8-DG
Model
Adjustment Configuration
Dimensional Details
Installation 01
Installation 02
Description
Application:
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses, crushers etc.
Technical Data
Model Catologue
Load Capacity Kg/pc
4800
Length (L) mm
200
Width (B) mm
200
Height (H) at mean position (mm)
100
Adjustment Range (mm)
+6/-6
Bottom pad Type
Dhs4
d (mm)
75
Bottom pad Thickness (mm)
50
BOLT SIZE (mm)
M20
SW1 (mm)
22
SW2 (mm)
12
Coeff. of Friction against Concrete
0.8
Natural Frequency at Max. Load (Hz)
5
Temperature Range (°C)
From -16 to 90
Color
Dark Grey/Green
e (mm)
27
