DRC-150
DYNEMECH MACHINERY RAISER DAMPING BLOCKS offer easy and quick installation of CNC machines. These blocks offer both levelling and vibration damping besides raising height of the machine for proper cleaning and repairing under it. Raiser Damping Blocks are assembled with insulation plates for vibration reduction. Ideal for CNC Turning/ Machining Centres, Cylindrical & Centreless Grinding Machines, Precision Machine Tools. Help implement TPM norms for machine installation. Proper maintenance, cleanliness, vibration reduction results in enhanced machine tool reliability (zero breakdowns), reduced operation and life cycle costs which are the driving factors for adoption of Total Productive Maintenance (TPM) practices. Machines are installed at a height of 100-150 mm which help implement TPM norms for machine installation. Series DRC are suitable for machines having plain hole in the base. Levelling is done by turning the bolt which lifts the cover plate along with the machine. Available both in 150mm height.
DRC-U
Product
DRC-U
Description
DYNEMECH MACHINERY RAISER DAMPING BLOCKS offer easy and quick installation of CNC machines. These blocks offer both levelling and vibration damping besides raising height of the machine for proper cleaning and repairing under it. Raiser Damping Blocks are assembled with insulation plates for vibration reduction. Ideal for CNC Turning/ Machining Centres, Cylindrical & Centreless Grinding Machines, Precision Machine Tools. Help implement TPM norms for machine installation. Proper maintenance, cleanliness, vibration reduction results in enhanced machine tool reliability (zero breakdowns), reduced operation and life cycle costs which are the driving factors for adoption of Total Productive Maintenance (TPM) practices. Machines are installed at a height of 100-150 mm which help implement TPM norms for machine installation. Series DRC are suitable for machines having plain hole in the base. Levelling is done by turning the bolt which lifts the cover plate along with the machine. Available both in 150mm height.
Application
Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Documents
| Model | Load Capacity (Kg/Pc) | Bolt Size (Mm) | D (Mm) | Dia D (Mm) | H (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| DRC1-u-150-FG-GR | 350 | M12X100 | 98 | 109 | 150 | 8 | Du | 15 | 0.9 | 18 | From -16 to 90 |
| DRC2-u-150-FG-GR | 600 | M16X100 | 125 | 150 | 150 | 8 | Du | 15 | 0.9 | 18 | From -16 to 90 |
| DRC3-u-150-FG-GR | 900 | M16X100 | 150 | 170 | 150 | 10 | Du | 15 | 0.9 | 18 | From -16 to 90 |
| DRC4-u-150-FG-GR | 1400 | M18X150 | 180 | 210 | 150 | 10 | Du | 15 | 0.9 | 18 | From -16 to 90 |
| DRC5-u-150-FG-GR | 1900 | M20X150 | 204 | 240 | 150 | 12 | Du | 15 | 0.9 | 18 | From -16 to 90 |
| DRC6-u-150-FG-GR | 2500 | M20X150 | 235 | 270 | 150 | 12 | Du | 15 | 0.9 | 18 | From -16 to 90 |
DRC-U-10
Product
DRC-U-10
Description
DYNEMECH MACHINERY RAISER DAMPING BLOCKS offer easy and quick installation of CNC machines. These blocks offer both levelling and vibration damping besides raising height of the machine for proper cleaning and repairing under it. Raiser Damping Blocks are assembled with insulation plates for vibration reduction. Ideal for CNC Turning/ Machining Centres, Cylindrical & Centreless Grinding Machines, Precision Machine Tools. Help implement TPM norms for machine installation. Proper maintenance, cleanliness, vibration reduction results in enhanced machine tool reliability (zero breakdowns), reduced operation and life cycle costs which are the driving factors for adoption of Total Productive Maintenance (TPM) practices. Machines are installed at a height of 100-150 mm which help implement TPM norms for machine installation. Series DRC are suitable for machines having plain hole in the base. Levelling is done by turning the bolt which lifts the cover plate along with the machine. Available both in 150mm height.
Application
Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Documents
| Model | Load Capacity (Kg/Pc) | Bolt Size (Mm) | D (Mm) | Dia D (Mm) | H (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| DRC1-u-10-145-FG-GR | 350 | M12X100 | 98 | 109 | 145 | 8 | Du-10 | 10 | 0.9 | 18 | From -16 to 90 |
| DRC2-u-10-145-FG-GR | 600 | M16X100 | 125 | 150 | 145 | 8 | Du-10 | 10 | 0.9 | 18 | From -16 to 90 |
| DRC3-u-10-145-FG-GR | 900 | M16X100 | 150 | 170 | 145 | 10 | Du-10 | 10 | 0.9 | 18 | From -16 to 90 |
| DRC4-u-10-145-FG-GR | 1400 | M18X150 | 180 | 210 | 145 | 10 | Du-10 | 10 | 0.9 | 18 | From -16 to 90 |
| DRC5-u-10-145-FG-GR | 1900 | M20X150 | 204 | 240 | 145 | 12 | Du-10 | 10 | 0.9 | 18 | From -16 to 90 |
| DRC6-u-10-145-FG-GR | 2500 | M20X150 | 235 | 270 | 145 | 12 | Du-10 | 10 | 0.9 | 18 | From -16 to 90 |
DRC-U-12
Product
DRC-U-12
Description
DYNEMECH MACHINERY RAISER DAMPING BLOCKS offer easy and quick installation of CNC machines. These blocks offer both levelling and vibration damping besides raising height of the machine for proper cleaning and repairing under it. Raiser Damping Blocks are assembled with insulation plates for vibration reduction. Ideal for CNC Turning/ Machining Centres, Cylindrical & Centreless Grinding Machines, Precision Machine Tools. Help implement TPM norms for machine installation. Proper maintenance, cleanliness, vibration reduction results in enhanced machine tool reliability (zero breakdowns), reduced operation and life cycle costs which are the driving factors for adoption of Total Productive Maintenance (TPM) practices. Machines are installed at a height of 100-150 mm which help implement TPM norms for machine installation. Series DRC are suitable for machines having plain hole in the base. Levelling is done by turning the bolt which lifts the cover plate along with the machine. Available both in 150mm height.
Application
Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Documents
| Model | Load Capacity (Kg/Pc) | Bolt Size (Mm) | D (Mm) | Dia D (Mm) | H (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| DRC1-u-12-147-FG-GR | 350 | M12X100 | 98 | 109 | 147 | 8 | Du-12 | 12 | 0.9 | 18 | From -16 to 90 |
| DRC2-u-12-147-FG-GR | 600 | M16X100 | 125 | 150 | 147 | 8 | Du-12 | 12 | 0.9 | 18 | From -16 to 90 |
| DRC3-u-12-147-FG-GR | 900 | M16X100 | 150 | 170 | 147 | 10 | Du-12 | 12 | 0.9 | 18 | From -16 to 90 |
| DRC4-u-12-147-FG-GR | 1400 | M18X150 | 180 | 210 | 147 | 10 | Du-12 | 12 | 0.9 | 18 | From -16 to 90 |
| DRC5-u-12-147-FG-GR | 1900 | M20X150 | 204 | 240 | 147 | 12 | Du-12 | 12 | 0.9 | 18 | From -16 to 90 |
| DRC6-u-12-147-FG-GR | 2500 | M20X150 | 235 | 270 | 147 | 12 | Du-12 | 12 | 0.9 | 18 | From -16 to 90 |
DRC-M
Product
DRC-M
Description
DYNEMECH MACHINERY RAISER DAMPING BLOCKS offer easy and quick installation of CNC machines. These blocks offer both levelling and vibration damping besides raising height of the machine for proper cleaning and repairing under it. Raiser Damping Blocks are assembled with insulation plates for vibration reduction. Ideal for CNC Turning/ Machining Centres, Cylindrical & Centreless Grinding Machines, Precision Machine Tools. Help implement TPM norms for machine installation. Proper maintenance, cleanliness, vibration reduction results in enhanced machine tool reliability (zero breakdowns), reduced operation and life cycle costs which are the driving factors for adoption of Total Productive Maintenance (TPM) practices. Machines are installed at a height of 100-150 mm which help implement TPM norms for machine installation. Series DRC are suitable for machines having plain hole in the base. Levelling is done by turning the bolt which lifts the cover plate along with the machine. Available both in 150mm height.
Application
Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.
Documents
| Model | Load Capacity (Kg/Pc) | Bolt Size (Mm) | D (Mm) | Dia D (Mm) | H (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| DRC1-m-150-FG-GR | 450 | M12X100 | 98 | 109 | 150 | 8 | Dm | 15 | 0.7 | 30 | From -16 to 90 |
| DRC2-m-150-FG-GR | 800 | M16X100 | 125 | 150 | 150 | 8 | Dm | 15 | 0.7 | 30 | From -16 to 90 |
| DRC3-m-150-FG-GR | 1150 | M16X100 | 150 | 170 | 150 | 10 | Dm | 15 | 0.7 | 30 | From -16 to 90 |
| DRC4-m-150-FG-GR | 1750 | M18X150 | 180 | 210 | 150 | 10 | Dm | 15 | 0.7 | 30 | From -16 to 90 |
| DRC5-m-150-FG-GR | 2400 | M20X150 | 204 | 240 | 150 | 12 | Dm | 15 | 0.7 | 30 | From -16 to 90 |
| DRC6-m-150-FG-GR | 3200 | M20X150 | 235 | 270 | 150 | 12 | Dm | 15 | 0.7 | 30 | From -16 to 90 |

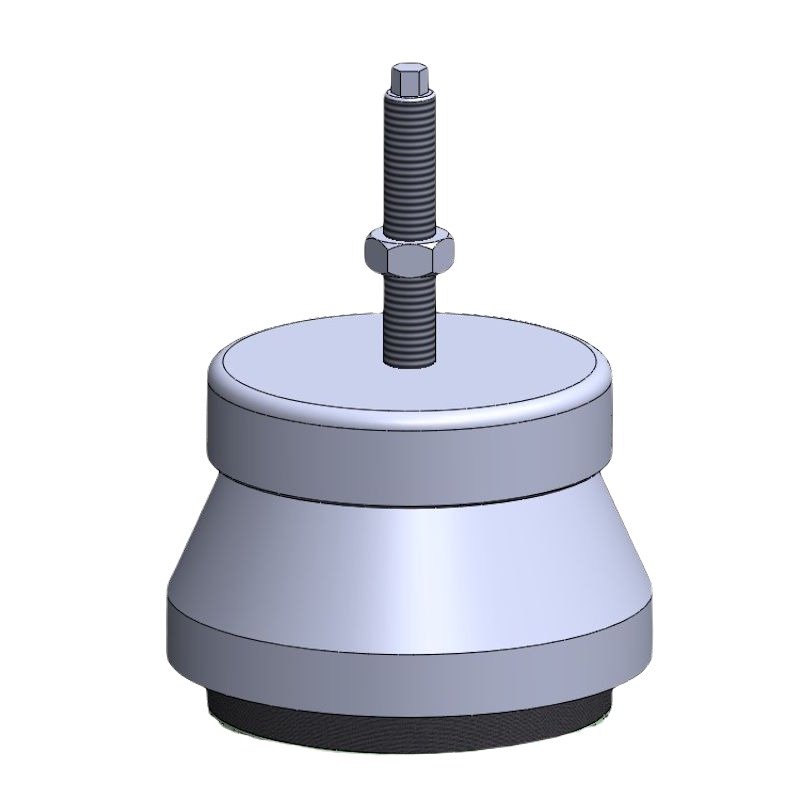

DRC-I
Product
DRC-I
Description
DYNEMECH MACHINERY RAISER DAMPING BLOCKS offer easy and quick installation of CNC machines. These blocks offer both levelling and vibration damping besides raising height of the machine for proper cleaning and repairing under it. Raiser Damping Blocks are assembled with insulation plates for vibration reduction. Ideal for CNC Turning/ Machining Centres, Cylindrical & Centreless Grinding Machines, Precision Machine Tools. Help implement TPM norms for machine installation. Proper maintenance, cleanliness, vibration reduction results in enhanced machine tool reliability (zero breakdowns), reduced operation and life cycle costs which are the driving factors for adoption of Total Productive Maintenance (TPM) practices. Machines are installed at a height of 100-150 mm which help implement TPM norms for machine installation. Series DRC are suitable for machines having plain hole in the base. Levelling is done by turning the bolt which lifts the cover plate along with the machine. Available both in 150mm height.
Application
Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.
Documents
| Model | Load Capacity (Kg/Pc) | Bolt Size (Mm) | D (Mm) | Dia D (Mm) | H (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| DRC1-i-160-FG-GR | 890 | M12X100 | 98 | 109 | 160 | 8 | Di | 25 | 0.8 | 7 | From -16 to 90 |
| DRC2-i-160-FG-GR | 1720 | M16X100 | 125 | 150 | 160 | 8 | Di | 25 | 0.8 | 7 | From -16 to 90 |
| DRC3-i-160-FG-GR | 2470 | M16X100 | 150 | 170 | 160 | 10 | Di | 25 | 0.8 | 7 | From -16 to 90 |
| DRC4-i-160-FG-GR | 3180 | M18X150 | 180 | 210 | 160 | 10 | Di | 25 | 0.8 | 7 | From -16 to 90 |
| DRC5-i-160-FG-GR | 5320 | M20X150 | 204 | 240 | 160 | 12 | Di | 25 | 0.8 | 7 | From -16 to 90 |
| DRC6-i-160-FG-GR | 6870 | M20X150 | 235 | 270 | 160 | 12 | Di | 25 | 0.8 | 7 | From -16 to 90 |

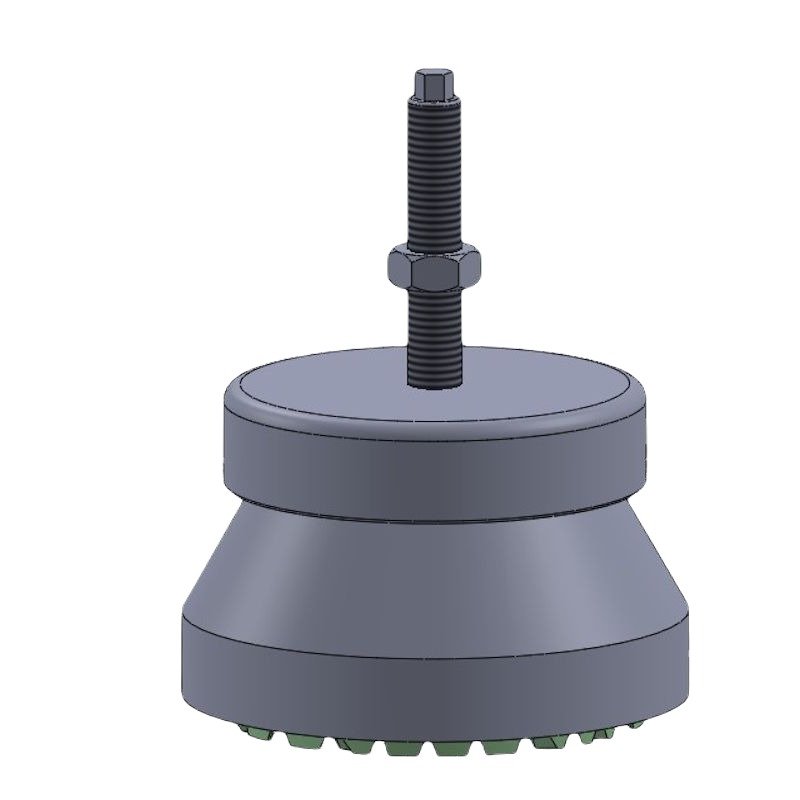

DRC-P1
Product
DRC-P1
Description
DYNEMECH MACHINERY RAISER DAMPING BLOCKS offer easy and quick installation of CNC machines. These blocks offer both levelling and vibration damping besides raising height of the machine for proper cleaning and repairing under it. Raiser Damping Blocks are assembled with insulation plates for vibration reduction. Ideal for CNC Turning/ Machining Centres, Cylindrical & Centreless Grinding Machines, Precision Machine Tools. Help implement TPM norms for machine installation. Proper maintenance, cleanliness, vibration reduction results in enhanced machine tool reliability (zero breakdowns), reduced operation and life cycle costs which are the driving factors for adoption of Total Productive Maintenance (TPM) practices. Machines are installed at a height of 100-150 mm which help implement TPM norms for machine installation. Series DRC are suitable for machines having plain hole in the base. Levelling is done by turning the bolt which lifts the cover plate along with the machine. Available both in 150mm height.
Application
Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.
Documents
| Model | Load Capacity (Kg/Pc) | Bolt Size (Mm) | D (Mm) | Dia D (Mm) | H (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| DRC1-p1-150-FG-GR | 250 | M12X100 | 98 | 109 | 150 | 8 | Dp1 | 15 | 0.8 | 7 | From -16 to 90 |
| DRC2-p1-150-FG-GR | 490 | M16X100 | 125 | 150 | 150 | 8 | Dp1 | 15 | 0.8 | 7 | From -16 to 90 |
| DRC3-p1-150-FG-GR | 700 | M16X100 | 150 | 170 | 150 | 10 | Dp1 | 15 | 0.8 | 7 | From -16 to 90 |
| DRC4-p1-150-FG-GR | 900 | M18X150 | 180 | 210 | 150 | 10 | Dp1 | 15 | 0.8 | 7 | From -16 to 90 |
| DRC5-p1-150-FG-GR | 1520 | M20X150 | 204 | 240 | 150 | 12 | Dp1 | 15 | 0.8 | 7 | From -16 to 90 |
| DRC6-p1-150-FG-GR | 1960 | M20X150 | 235 | 270 | 150 | 12 | Dp1 | 15 | 0.8 | 7 | From -16 to 90 |
DRC-P2
Product
DRC-P2
Description
DYNEMECH MACHINERY RAISER DAMPING BLOCKS offer easy and quick installation of CNC machines. These blocks offer both levelling and vibration damping besides raising height of the machine for proper cleaning and repairing under it. Raiser Damping Blocks are assembled with insulation plates for vibration reduction. Ideal for CNC Turning/ Machining Centres, Cylindrical & Centreless Grinding Machines, Precision Machine Tools. Help implement TPM norms for machine installation. Proper maintenance, cleanliness, vibration reduction results in enhanced machine tool reliability (zero breakdowns), reduced operation and life cycle costs which are the driving factors for adoption of Total Productive Maintenance (TPM) practices. Machines are installed at a height of 100-150 mm which help implement TPM norms for machine installation. Series DRC are suitable for machines having plain hole in the base. Levelling is done by turning the bolt which lifts the cover plate along with the machine. Available both in 150mm height.
Application
Medium Presses, Punching Presses, Centreless Grinding Machines, Gear Shapers, High Speed Machines on upper floors.
Documents
| Model | Load Capacity (Kg/Pc) | Bolt Size (Mm) | D (Mm) | Dia D (Mm) | H (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| DRC1-p2-155-FG-GR | 320 | M12X100 | 98 | 109 | 155 | 8 | Dp2 | 20 | 0.8 | 12 | From -16 to 90 |
| DRC2-p2-155-FG-GR | 610 | M16X100 | 125 | 150 | 155 | 8 | Dp2 | 20 | 0.8 | 12 | From -16 to 90 |
| DRC3-p2-155-FG-GR | 880 | M16X100 | 150 | 170 | 155 | 10 | Dp2 | 20 | 0.8 | 12 | From -16 to 90 |
| DRC4-p2-155-FG-GR | 1130 | M18X150 | 180 | 210 | 155 | 10 | Dp2 | 20 | 0.8 | 12 | From -16 to 90 |
| DRC5-p2-155-FG-GR | 1900 | M20X150 | 204 | 240 | 155 | 12 | Dp2 | 20 | 0.8 | 12 | From -16 to 90 |
| DRC6-p2-155-FG-GR | 2450 | M20X150 | 235 | 270 | 155 | 12 | Dp2 | 20 | 0.8 | 12 | From -16 to 90 |

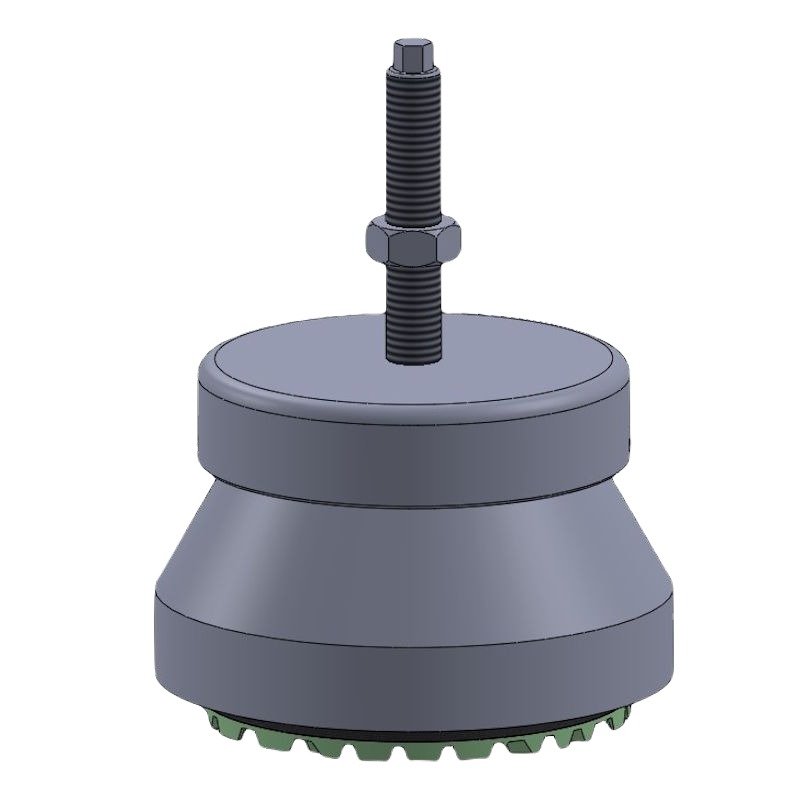

DRC-P3
Product
DRC-P3
Description
DYNEMECH MACHINERY RAISER DAMPING BLOCKS offer easy and quick installation of CNC machines. These blocks offer both levelling and vibration damping besides raising height of the machine for proper cleaning and repairing under it. Raiser Damping Blocks are assembled with insulation plates for vibration reduction. Ideal for CNC Turning/ Machining Centres, Cylindrical & Centreless Grinding Machines, Precision Machine Tools. Help implement TPM norms for machine installation. Proper maintenance, cleanliness, vibration reduction results in enhanced machine tool reliability (zero breakdowns), reduced operation and life cycle costs which are the driving factors for adoption of Total Productive Maintenance (TPM) practices. Machines are installed at a height of 100-150 mm which help implement TPM norms for machine installation. Series DRC are suitable for machines having plain hole in the base. Levelling is done by turning the bolt which lifts the cover plate along with the machine. Available both in 150mm height.
Application
Tool Room Machines on suspended Floors, Light Weight Presses, Compressors etc.
Documents
| Model | Load Capacity (Kg/Pc) | Bolt Size (Mm) | D (Mm) | Dia D (Mm) | H (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| DRC1-p3-159-FG-GR | 380 | M12X100 | 98 | 109 | 159 | 8 | Dp3 | 24 | 0.8 | 7 | From -16 to 90 |
| DRC2-p3-159-FG-GR | 730 | M16X100 | 125 | 150 | 159 | 8 | Dp3 | 24 | 0.8 | 7 | From -16 to 90 |
| DRC3-p3-159-FG-GR | 1060 | M16X100 | 150 | 170 | 159 | 10 | Dp3 | 24 | 0.8 | 7 | From -16 to 90 |
| DRC4-p3-159-FG-GR | 1360 | M18X150 | 180 | 210 | 159 | 10 | Dp3 | 24 | 0.8 | 7 | From -16 to 90 |
| DRC5-p3-159-FG-GR | 2280 | M20X150 | 204 | 240 | 159 | 12 | Dp3 | 24 | 0.8 | 7 | From -16 to 90 |
| DRC6-p3-159-FG-GR | 2940 | M20X150 | 235 | 270 | 159 | 12 | Dp3 | 24 | 0.8 | 7 | From -16 to 90 |
DRC-S1
Product
DRC-S1
Description
DYNEMECH MACHINERY RAISER DAMPING BLOCKS offer easy and quick installation of CNC machines. These blocks offer both levelling and vibration damping besides raising height of the machine for proper cleaning and repairing under it. Raiser Damping Blocks are assembled with insulation plates for vibration reduction. Ideal for CNC Turning/ Machining Centres, Cylindrical & Centreless Grinding Machines, Precision Machine Tools. Help implement TPM norms for machine installation. Proper maintenance, cleanliness, vibration reduction results in enhanced machine tool reliability (zero breakdowns), reduced operation and life cycle costs which are the driving factors for adoption of Total Productive Maintenance (TPM) practices. Machines are installed at a height of 100-150 mm which help implement TPM norms for machine installation. Series DRC are suitable for machines having plain hole in the base. Levelling is done by turning the bolt which lifts the cover plate along with the machine. Available both in 150mm height.
Application
Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Documents
| Model | Load Capacity (Kg/Pc) | Bolt Size (Mm) | D (Mm) | Dia D (Mm) | H (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| DRC1-s1-155-FG-GR | 200 | M12X100 | 98 | 109 | 155 | 8 | Ds1 | 20 | 0.8 | 15 | From -16 to 90 |
| DRC2-s1-155-FG-GR | 375 | M16X100 | 125 | 150 | 155 | 8 | Ds1 | 20 | 0.8 | 15 | From -16 to 90 |
| DRC3-s1-155-FG-GR | 575 | M16X100 | 150 | 170 | 155 | 10 | Ds1 | 20 | 0.8 | 15 | From -16 to 90 |
| DRC4-s1-155-FG-GR | 800 | M18X150 | 180 | 210 | 155 | 10 | Ds1 | 20 | 0.8 | 15 | From -16 to 90 |
| DRC5-s1-155-FG-GR | 1100 | M20X150 | 204 | 240 | 155 | 12 | Ds1 | 20 | 0.8 | 15 | From -16 to 90 |
| DRC6-s1-155-FG-GR | 1500 | M20X150 | 235 | 270 | 155 | 12 | Ds1 | 20 | 0.8 | 15 | From -16 to 90 |

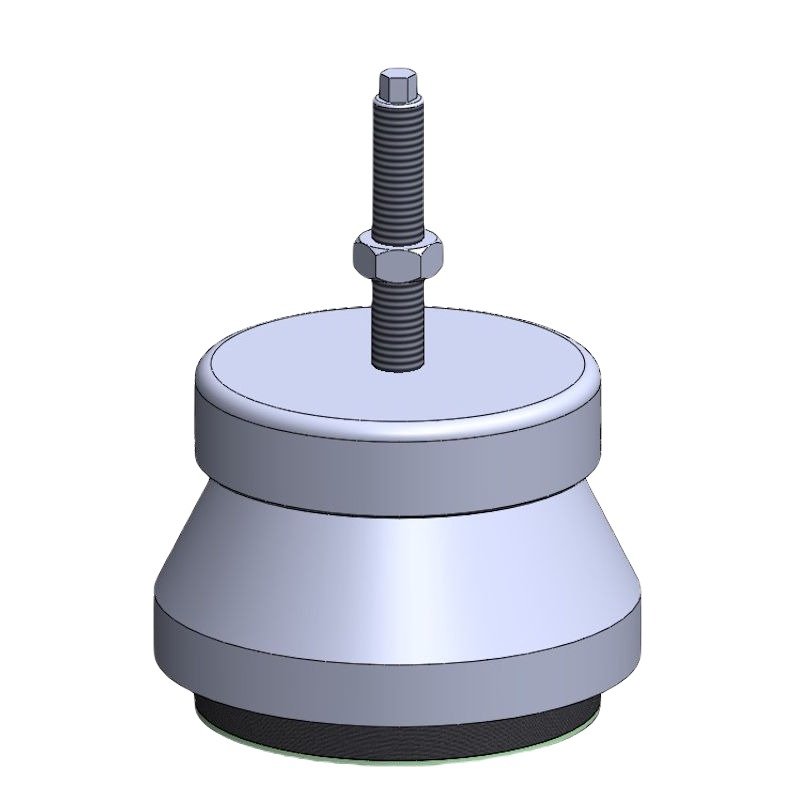

DRC-S2
Product
DRC-S2
Description
DYNEMECH MACHINERY RAISER DAMPING BLOCKS offer easy and quick installation of CNC machines. These blocks offer both levelling and vibration damping besides raising height of the machine for proper cleaning and repairing under it. Raiser Damping Blocks are assembled with insulation plates for vibration reduction. Ideal for CNC Turning/ Machining Centres, Cylindrical & Centreless Grinding Machines, Precision Machine Tools. Help implement TPM norms for machine installation. Proper maintenance, cleanliness, vibration reduction results in enhanced machine tool reliability (zero breakdowns), reduced operation and life cycle costs which are the driving factors for adoption of Total Productive Maintenance (TPM) practices. Machines are installed at a height of 100-150 mm which help implement TPM norms for machine installation. Series DRC are suitable for machines having plain hole in the base. Levelling is done by turning the bolt which lifts the cover plate along with the machine. Available both in 150mm height.
Application
Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.
Documents
| Model | Load Capacity (Kg/Pc) | Bolt Size (Mm) | D (Mm) | Dia D (Mm) | H (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| DRC1-s2-160-FG-GR | 300 | M12X100 | 98 | 109 | 160 | 8 | Ds2 | 25 | 0.8 | 8 | From -16 to 90 |
| DRC2-s2-160-FG-GR | 550 | M16X100 | 125 | 150 | 160 | 8 | Ds2 | 25 | 0.8 | 8 | From -16 to 90 |
| DRC3-s2-160-FG-GR | 850 | M16X100 | 150 | 170 | 160 | 10 | Ds2 | 25 | 0.8 | 8 | From -16 to 90 |
| DRC4-s2-160-FG-GR | 1250 | M18X150 | 180 | 210 | 160 | 10 | Ds2 | 25 | 0.8 | 8 | From -16 to 90 |
| DRC5-s2-160-FG-GR | 1700 | M20X150 | 204 | 240 | 160 | 12 | Ds2 | 25 | 0.8 | 8 | From -16 to 90 |
| DRC6-s2-160-FG-GR | 2200 | M20X150 | 235 | 270 | 160 | 12 | Ds2 | 25 | 0.8 | 8 | From -16 to 90 |

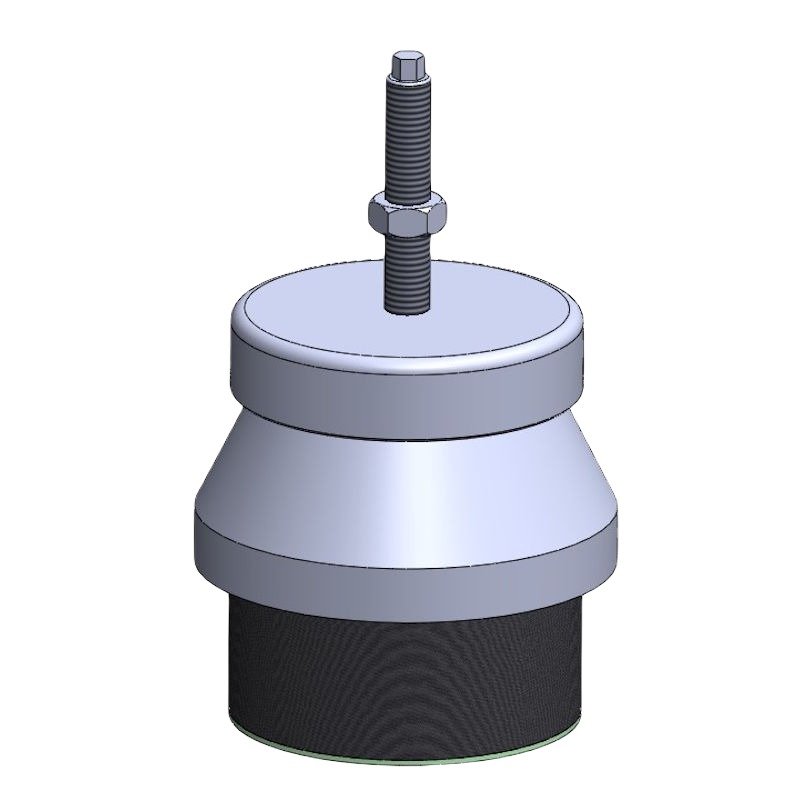

DRC-HS1
Product
DRC-HS1
Description
DYNEMECH MACHINERY RAISER DAMPING BLOCKS offer easy and quick installation of CNC machines. These blocks offer both levelling and vibration damping besides raising height of the machine for proper cleaning and repairing under it. Raiser Damping Blocks are assembled with insulation plates for vibration reduction. Ideal for CNC Turning/ Machining Centres, Cylindrical & Centreless Grinding Machines, Precision Machine Tools. Help implement TPM norms for machine installation. Proper maintenance, cleanliness, vibration reduction results in enhanced machine tool reliability (zero breakdowns), reduced operation and life cycle costs which are the driving factors for adoption of Total Productive Maintenance (TPM) practices. Machines are installed at a height of 100-150 mm which help implement TPM norms for machine installation. Series DRC are suitable for machines having plain hole in the base. Levelling is done by turning the bolt which lifts the cover plate along with the machine. Available both in 150mm height.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses etc.
Documents
| Model | Load Capacity (Kg/Pc) | Bolt Size (Mm) | D (Mm) | Dia D (Mm) | H (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| DRC1-hs1-200-FG-GR | 1270 | M12X100 | 98 | 109 | 200 | 8 | Dhs1 | 65 | 0.8 | 6 | From -16 to 90 |
| DRC2-hs1-200-FG-GR | 2450 | M16X100 | 125 | 150 | 200 | 8 | Dhs1 | 65 | 0.8 | 6 | From -16 to 90 |
| DRC3-hs1-200-FG-GR | 3530 | M16X100 | 150 | 170 | 200 | 10 | Dhs1 | 65 | 0.8 | 6 | From -16 to 90 |
| DRC4-hs1-200-FG-GR | 4540 | M18X150 | 180 | 210 | 200 | 10 | Dhs1 | 65 | 0.8 | 6 | From -16 to 90 |
| DRC5-hs1-200-FG-GR | 7600 | M20X150 | 204 | 240 | 200 | 12 | Dhs1 | 65 | 0.8 | 6 | From -16 to 90 |
| DRC6-hs1-200-FG-GR | 9820 | M20X150 | 235 | 270 | 200 | 12 | Dhs1 | 65 | 0.8 | 6 | From -16 to 90 |
DRC-HS2
Product
DRC-HS2
Description
DYNEMECH MACHINERY RAISER DAMPING BLOCKS offer easy and quick installation of CNC machines. These blocks offer both levelling and vibration damping besides raising height of the machine for proper cleaning and repairing under it. Raiser Damping Blocks are assembled with insulation plates for vibration reduction. Ideal for CNC Turning/ Machining Centres, Cylindrical & Centreless Grinding Machines, Precision Machine Tools. Help implement TPM norms for machine installation. Proper maintenance, cleanliness, vibration reduction results in enhanced machine tool reliability (zero breakdowns), reduced operation and life cycle costs which are the driving factors for adoption of Total Productive Maintenance (TPM) practices. Machines are installed at a height of 100-150 mm which help implement TPM norms for machine installation. Series DRC are suitable for machines having plain hole in the base. Levelling is done by turning the bolt which lifts the cover plate along with the machine. Available both in 150mm height.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses, crushers etc.
Documents
| Model | Load Capacity (Kg/Pc) | Bolt Size (Mm) | D (Mm) | Dia D (Mm) | H (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| DRC1-hs2-200-FG-GR | 510 | M12X100 | 98 | 109 | 200 | 8 | Dhs2 | 65 | 0.8 | 4 | From -16 to 90 |
| DRC2-hs2-200-FG-GR | 900 | M16X100 | 125 | 150 | 200 | 8 | Dhs2 | 65 | 0.8 | 4 | From -16 to 90 |
| DRC3-hs2-200-FG-GR | 1410 | M16X100 | 150 | 170 | 200 | 10 | Dhs2 | 65 | 0.8 | 4 | From -16 to 90 |
| DRC4-hs2-200-FG-GR | 1810 | M18X150 | 180 | 210 | 200 | 10 | Dhs2 | 65 | 0.8 | 4 | From -16 to 90 |
| DRC5-hs2-200-FG-GR | 3040 | M20X150 | 204 | 240 | 200 | 12 | Dhs2 | 65 | 0.8 | 4 | From -16 to 90 |
| DRC6-hs2-200-FG-GR | 3930 | M20X150 | 235 | 270 | 200 | 12 | Dhs2 | 65 | 0.8 | 4 | From -16 to 90 |

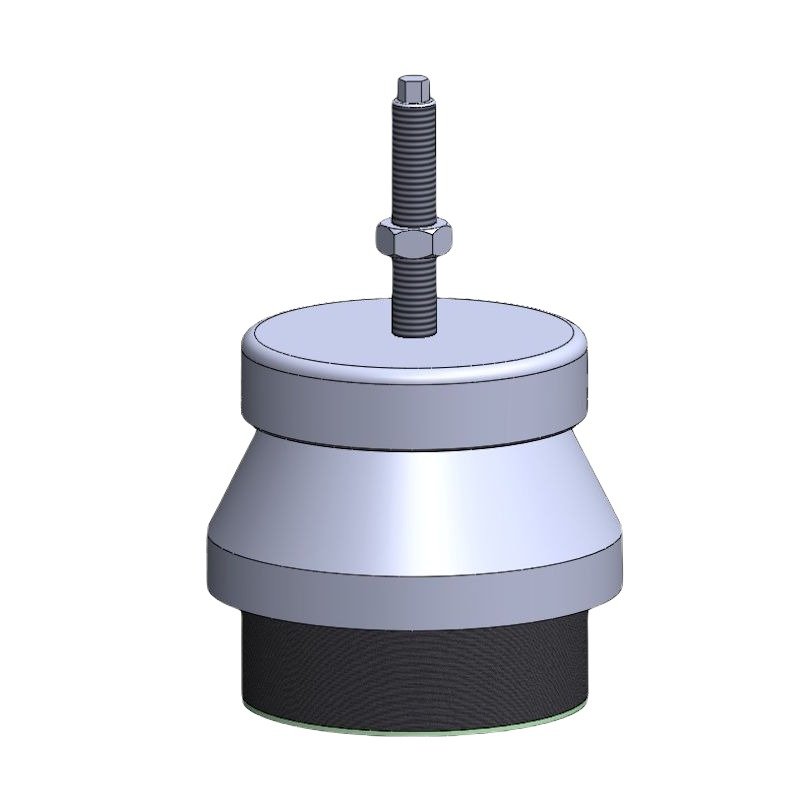

DRC-HS3
Product
DRC-HS3
Description
DYNEMECH MACHINERY RAISER DAMPING BLOCKS offer easy and quick installation of CNC machines. These blocks offer both levelling and vibration damping besides raising height of the machine for proper cleaning and repairing under it. Raiser Damping Blocks are assembled with insulation plates for vibration reduction. Ideal for CNC Turning/ Machining Centres, Cylindrical & Centreless Grinding Machines, Precision Machine Tools. Help implement TPM norms for machine installation. Proper maintenance, cleanliness, vibration reduction results in enhanced machine tool reliability (zero breakdowns), reduced operation and life cycle costs which are the driving factors for adoption of Total Productive Maintenance (TPM) practices. Machines are installed at a height of 100-150 mm which help implement TPM norms for machine installation. Series DRC are suitable for machines having plain hole in the base. Levelling is done by turning the bolt which lifts the cover plate along with the machine. Available both in 150mm height.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses etc.
Documents
| Model | Load Capacity (Kg/Pc) | Bolt Size (Mm) | D (Mm) | Dia D (Mm) | H (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| DRC1-hs3-185-FG-GR | 1780 | M12X100 | 98 | 109 | 185 | 8 | Dhs3 | 50 | 0.8 | 7 | From -16 to 90 |
| DRC2-hs3-185-FG-GR | 3440 | M16X100 | 125 | 150 | 185 | 8 | Dhs3 | 50 | 0.8 | 7 | From -16 to 90 |
| DRC3-hs3-185-FG-GR | 4950 | M16X100 | 150 | 170 | 185 | 10 | Dhs3 | 50 | 0.8 | 7 | From -16 to 90 |
| DRC4-hs3-185-FG-GR | 6350 | M18X150 | 180 | 210 | 185 | 10 | Dhs3 | 50 | 0.8 | 7 | From -16 to 90 |
| DRC5-hs3-185-FG-GR | 10640 | M20X150 | 204 | 240 | 185 | 12 | Dhs3 | 50 | 0.8 | 7 | From -16 to 90 |
| DRC6-hs3-185-FG-GR | 13740 | M20X150 | 235 | 270 | 185 | 12 | Dhs3 | 50 | 0.8 | 7 | From -16 to 90 |

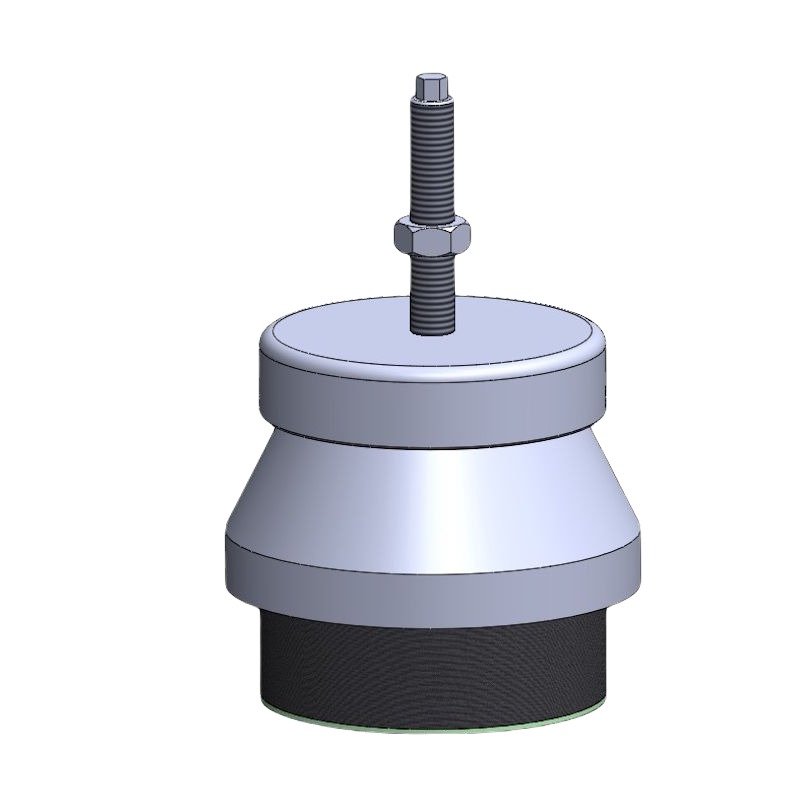

DRC-HS4
Product
DRC-HS4
Description
DYNEMECH MACHINERY RAISER DAMPING BLOCKS offer easy and quick installation of CNC machines. These blocks offer both levelling and vibration damping besides raising height of the machine for proper cleaning and repairing under it. Raiser Damping Blocks are assembled with insulation plates for vibration reduction. Ideal for CNC Turning/ Machining Centres, Cylindrical & Centreless Grinding Machines, Precision Machine Tools. Help implement TPM norms for machine installation. Proper maintenance, cleanliness, vibration reduction results in enhanced machine tool reliability (zero breakdowns), reduced operation and life cycle costs which are the driving factors for adoption of Total Productive Maintenance (TPM) practices. Machines are installed at a height of 100-150 mm which help implement TPM norms for machine installation. Series DRC are suitable for machines having plain hole in the base. Levelling is done by turning the bolt which lifts the cover plate along with the machine. Available both in 150mm height.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses, crushers etc.
Documents
| Model | Load Capacity (Kg/Pc) | Bolt Size (Mm) | D (Mm) | Dia D (Mm) | H (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| DRC1-hs4-185-FG-GR | 760 | M12X100 | 98 | 109 | 185 | 8 | Dhs4 | 50 | 0.8 | 5 | From -16 to 90 |
| DRC2-hs4-185-FG-GR | 1470 | M16X100 | 125 | 150 | 185 | 8 | Dhs4 | 50 | 0.8 | 5 | From -16 to 90 |
| DRC3-hs4-185-FG-GR | 2120 | M16X100 | 150 | 170 | 185 | 10 | Dhs4 | 50 | 0.8 | 5 | From -16 to 90 |
| DRC4-hs4-185-FG-GR | 2720 | M18X150 | 180 | 210 | 185 | 10 | Dhs4 | 50 | 0.8 | 5 | From -16 to 90 |
| DRC5-hs4-185-FG-GR | 4960 | M20X150 | 204 | 240 | 185 | 12 | Dhs4 | 50 | 0.8 | 5 | From -16 to 90 |
| DRC6-hs4-185-FG-GR | 5890 | M20X150 | 235 | 270 | 185 | 12 | Dhs4 | 50 | 0.8 | 5 | From -16 to 90 |
DRC-HS5
Product
DRC-HS5
Description
DYNEMECH MACHINERY RAISER DAMPING BLOCKS offer easy and quick installation of CNC machines. These blocks offer both levelling and vibration damping besides raising height of the machine for proper cleaning and repairing under it. Raiser Damping Blocks are assembled with insulation plates for vibration reduction. Ideal for CNC Turning/ Machining Centres, Cylindrical & Centreless Grinding Machines, Precision Machine Tools. Help implement TPM norms for machine installation. Proper maintenance, cleanliness, vibration reduction results in enhanced machine tool reliability (zero breakdowns), reduced operation and life cycle costs which are the driving factors for adoption of Total Productive Maintenance (TPM) practices. Machines are installed at a height of 100-150 mm which help implement TPM norms for machine installation. Series DRC are suitable for machines having plain hole in the base. Levelling is done by turning the bolt which lifts the cover plate along with the machine. Available both in 150mm height.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses etc.
Documents
| Model | Load Capacity (Kg/Pc) | Bolt Size (Mm) | D (Mm) | Dia D (Mm) | H (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| DRC1-hs5-215-FG-GR | 1780 | M12X100 | 98 | 109 | 215 | 8 | Dhs5 | 80 | 0.8 | 5 | From -16 to 90 |
| DRC2-hs5-215-FG-GR | 3440 | M16X100 | 125 | 150 | 215 | 8 | Dhs5 | 80 | 0.8 | 5 | From -16 to 90 |
| DRC3-hs5-215-FG-GR | 4950 | M16X100 | 150 | 170 | 215 | 10 | Dhs5 | 80 | 0.8 | 5 | From -16 to 90 |
| DRC4-hs5-215-FG-GR | 6350 | M18X150 | 180 | 210 | 215 | 10 | Dhs5 | 80 | 0.8 | 5 | From -16 to 90 |
| DRC5-hs5-215-FG-GR | 10640 | M20X150 | 204 | 240 | 215 | 12 | Dhs5 | 80 | 0.8 | 5 | From -16 to 90 |
| DRC6-hs5-215-FG-GR | 13740 | M20X150 | 235 | 270 | 215 | 12 | Dhs5 | 80 | 0.8 | 5 | From -16 to 90 |

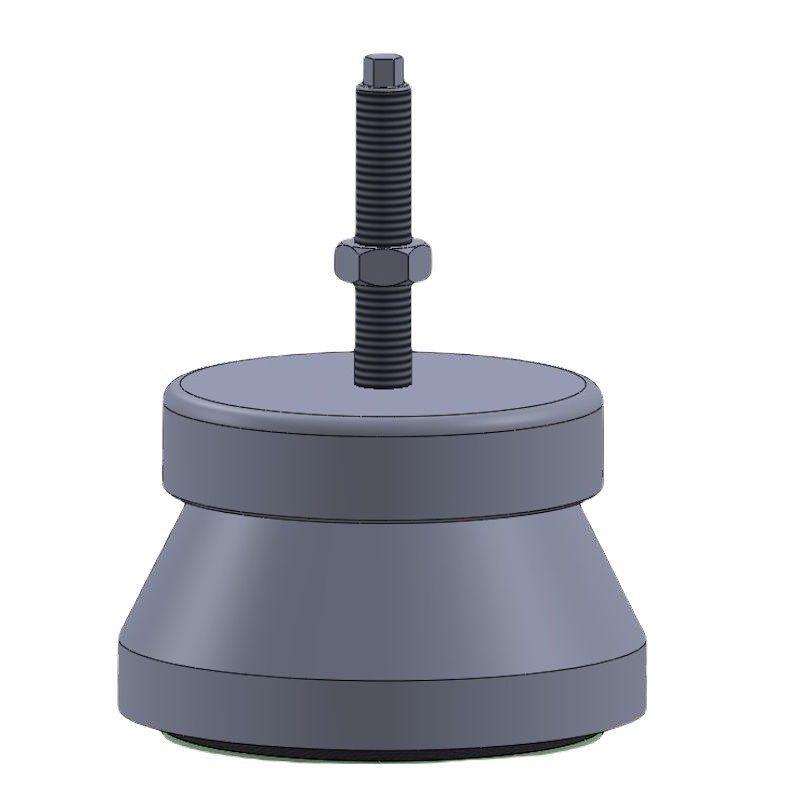

DRC-H
Product
DRC-H
Description
DYNEMECH MACHINERY RAISER DAMPING BLOCKS offer easy and quick installation of CNC machines. These blocks offer both levelling and vibration damping besides raising height of the machine for proper cleaning and repairing under it. Raiser Damping Blocks are assembled with insulation plates for vibration reduction. Ideal for CNC Turning/ Machining Centres, Cylindrical & Centreless Grinding Machines, Precision Machine Tools. Help implement TPM norms for machine installation. Proper maintenance, cleanliness, vibration reduction results in enhanced machine tool reliability (zero breakdowns), reduced operation and life cycle costs which are the driving factors for adoption of Total Productive Maintenance (TPM) practices. Machines are installed at a height of 100-150 mm which help implement TPM norms for machine installation. Series DRC are suitable for machines having plain hole in the base. Levelling is done by turning the bolt which lifts the cover plate along with the machine. Available both in 150mm height.
Application
Very Heavy and long bed machines, long machining centres, planners etc.
Documents
| Model | Load Capacity (Kg/Pc) | Bolt Size (Mm) | D (Mm) | Dia D (Mm) | H (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| DRC1-h-150-FG-GR | 1200 | M12X100 | 98 | 109 | 150 | 8 | Dh | 15 | 0.6 | 45 | From -16 to 90 |
| DRC2-h-150-FG-GR | 2400 | M16X100 | 125 | 150 | 150 | 8 | Dh | 15 | 0.6 | 45 | From -16 to 90 |
| DRC3-h-150-FG-GR | 3500 | M16X100 | 150 | 170 | 150 | 10 | Dh | 15 | 0.6 | 45 | From -16 to 90 |
| DRC4-h-150-FG-GR | 5200 | M18X150 | 180 | 210 | 150 | 10 | Dh | 15 | 0.6 | 45 | From -16 to 90 |
| DRC5-h-150-FG-GR | 7200 | M20X150 | 204 | 240 | 150 | 12 | Dh | 15 | 0.6 | 45 | From -16 to 90 |
| DRC6-h-150-FG-GR | 9600 | M20X150 | 235 | 270 | 150 | 12 | Dh | 15 | 0.6 | 45 | From -16 to 90 |

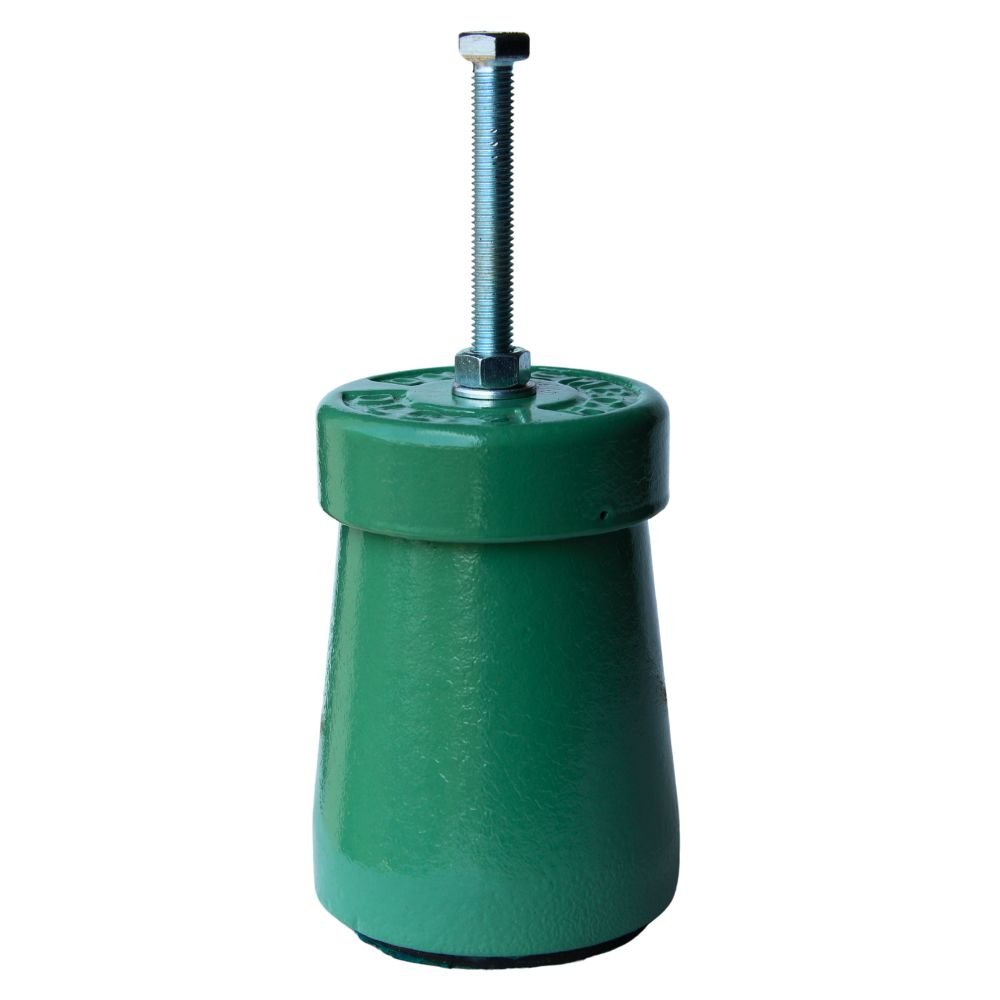

DRC-A2
Product
DRC-A2
Description
DYNEMECH MACHINERY RAISER DAMPING BLOCKS offer easy and quick installation of CNC machines. These blocks offer both levelling and vibration damping besides raising height of the machine for proper cleaning and repairing under it. Raiser Damping Blocks are assembled with insulation plates for vibration reduction. Ideal for CNC Turning/ Machining Centres, Cylindrical & Centreless Grinding Machines, Precision Machine Tools. Help implement TPM norms for machine installation. Proper maintenance, cleanliness, vibration reduction results in enhanced machine tool reliability (zero breakdowns), reduced operation and life cycle costs which are the driving factors for adoption of Total Productive Maintenance (TPM) practices. Machines are installed at a height of 100-150 mm which help implement TPM norms for machine installation. Series DRC are suitable for machines having plain hole in the base. Levelling is done by turning the bolt which lifts the cover plate along with the machine. Available both in 150mm height.
Documents
| Model | Load Capacity (Kg/Pc) | Bolt Size (Mm) | D (Mm) | Dia D (Mm) | H (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| DRC1-a2-143-FG-GR | 640 | M12X100 | 98 | 109 | 143 | 8 | Da2 | 8 | 0.9 | 35 | From -16 to 90 |
| DRC2-a2-143-FG-GR | 1230 | M16X100 | 125 | 150 | 143 | 8 | Da2 | 8 | 0.9 | 35 | From -16 to 90 |
| DRC3-a2-143-FG-GR | 1770 | M16X100 | 150 | 170 | 143 | 10 | Da2 | 8 | 0.9 | 35 | From -16 to 90 |
| DRC4-a2-143-FG-GR | 2270 | M18X150 | 180 | 210 | 143 | 10 | Da2 | 8 | 0.9 | 35 | From -16 to 90 |
| DRC5-a2-143-FG-GR | 3800 | M20X150 | 204 | 240 | 143 | 12 | Da2 | 8 | 0.9 | 35 | From -16 to 90 |
| DRC6-a2-143-FG-GR | 4900 | M20X150 | 235 | 270 | 143 | 12 | Da2 | 8 | 0.9 | 35 | From -16 to 90 |
