Anti Vibration Table Self Levelling Pneumatic Triflex Isolation , Series DIT-TRF

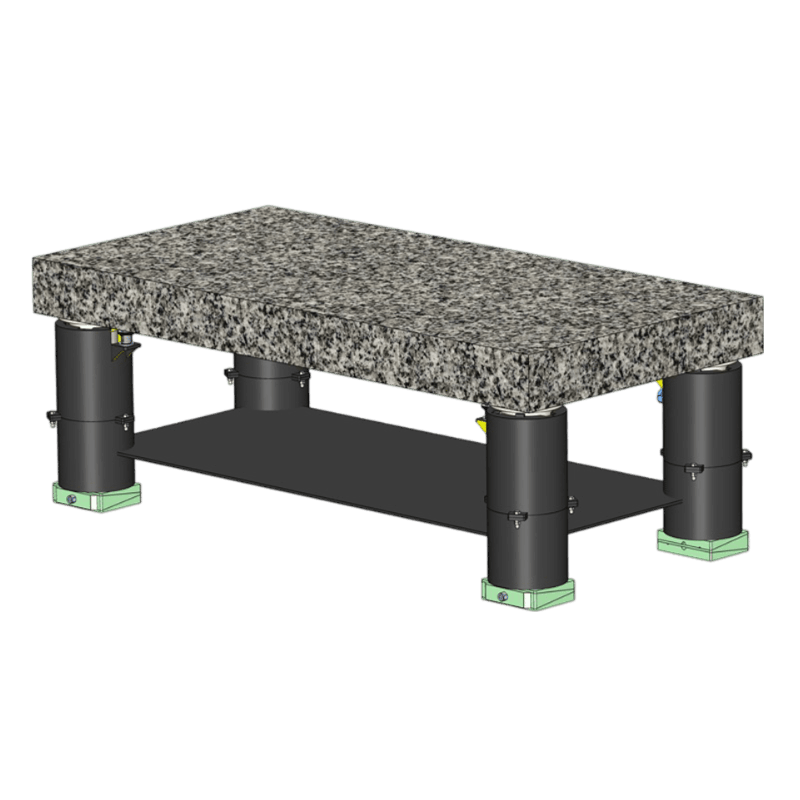

Anti Vibration Table Self Levelling Pneumatic Triflex Isolation With Granite Top, Series DIT-TRF-GN
Product
Anti Vibration Table Self Levelling Pneumatic Triflex Isolation With Granite Top, Series DIT-TRF-GN
Description
Dynemech Anti Vibration Table DIT-TRF-GN has natural frequency in the range of 1.5 to 2.0 Hz along with self levelling triflex pendulum assembly feature. Available self-levelling accuracy is +/- 0.015 mm with minimum setting time, depending upon the application requirement. Rubber air springs are used which damps most of the incoming vibrations above 10 Hz. Bottom levelling wedge mounts provide levelling and vibration reduction. Level difference on Table Top of The Granite due to any load change and the equipment is compensated within milliseconds.
| Model | Load (Kg) | Length (Mm) | Width (Mm) | Height (Mm) | Granite Table Top Thickness (Mm) |
|---|---|---|---|---|---|
| DIT TRF-GN-01-75759 | upto 450 | 750 | 750 | 900 | 80 |
| DIT TRF-GN-02-90609 | upto 500 | 900 | 600 | 900 | 80 |
| DIT TRF-GN-03-1008090 | upto 600 | 1000 | 800 | 900 | 100 |
| DIT TRF-GN-04-12010090 | upto 700 | 1200 | 1000 | 900 | 100 |
| DIT TRF-GN-05-15012090 | upto 800 | 1500 | 1200 | 900 | 150 |
| DIT TRF-GN-06-18012090 | upto 850 | 1800 | 1200 | 900 | 150 |
| DIT TRF-GN-07-21015090 | upto 1000 | 2100 | 1500 | 900 | 150 |

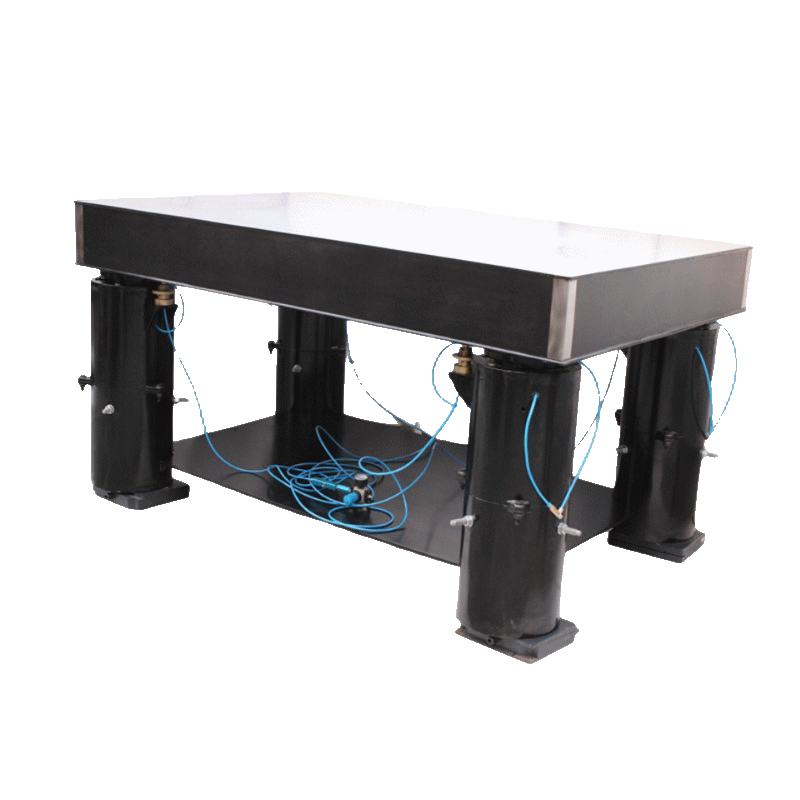

Anti Vibration Table Self Levelling Pneumatic Triflex Isolation With Honeycomb Breadboard, Series DIT-TRF-HC
Product
Anti Vibration Table Self Levelling Pneumatic Triflex Isolation With Honeycomb Breadboard, Series DIT-TRF-HC
Description
Dynemech Anti Vibration Table DIT-TRF-HC has natural frequency in the range of 1.5 to 2.0 Hz along with self levelling triflex pendulum assembly feature. Available self-levelling accuracy is +/- 0.015 mm with minimum setting time, depending upon the application requirement. Rubber air springs are used which damps most of the incoming vibrations above 10 Hz. Bottom levelling wedge mounts provide levelling and vibration reduction. Level difference on top of the Honecomb Table Top due to any load change and the equipment is compensated within milliseconds.
| Model | Load (Kg) | Length (Mm) | Width (Mm) | Height (Mm) | Honeycomb Tabletop Thickness (Mm) |
|---|---|---|---|---|---|
| DIT TRF-HC-01-75759 | upto 450 | 750 | 750 | 900 | 100 |
| DIT TRF-HC-02-90609 | upto 500 | 900 | 600 | 900 | 100 |
| DIT TRF-HC-03-1008090 | upto 600 | 1000 | 800 | 900 | 100 |
| DIT TRF-HC-04-12010090 | upto 700 | 1200 | 1000 | 900 | 150 |
| DIT TRF-HC-05-15012090 | upto 800 | 1500 | 1200 | 900 | 150 |
| DIT TRF-HC-06-18012090 | upto 850 | 1800 | 1200 | 900 | 200 |
| DIT TRF-HC-07-21015090 | upto 1000 | 2100 | 1500 | 900 | 300 |
