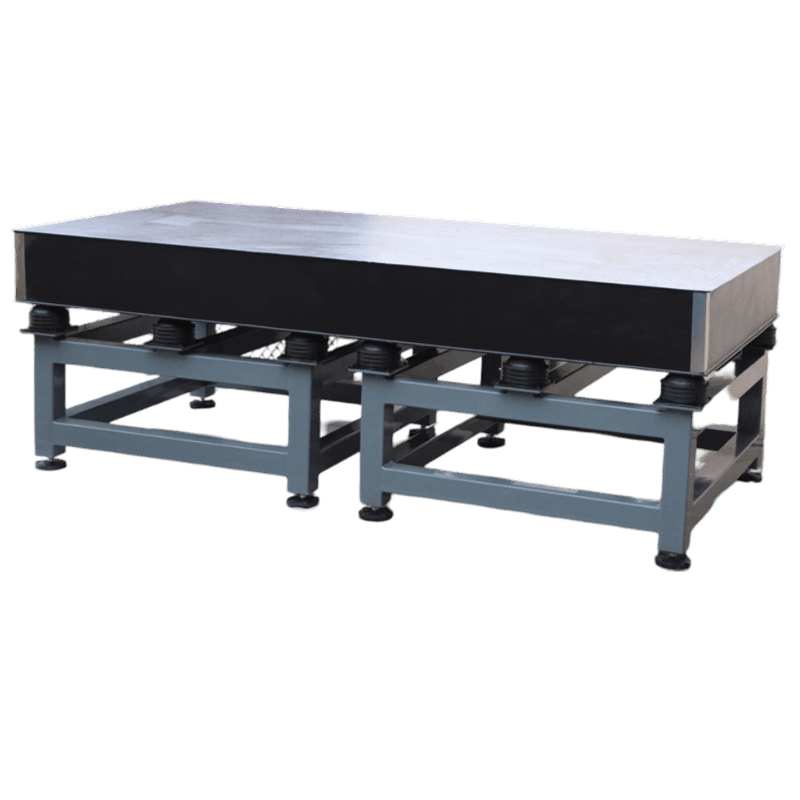

Anti Vibration Table On Air Spring With Manual Levelling With Honeycomb Breadboard, Series DIT-AS-HC
Dynemech Anti Vibraton Tables Series DIT-AS-HC are ideal for isolating low-frequency vibration, Dynemech Anti vibration table has natural frequency in the range of 04-06Hz, The DIT-AS-HC Antivibraon table consist of Honeycomb Table Top. These Vibration tables provide economical solution where low frequency vibrations need to be removed. The passive vibration from nearby machines is reduced by 80-90%. Levelling is done using bottom levelling screw.
Application
Hardness Tester, Digital Height Gauges, Galvanometer etc.
Documents
7 Models
| Model | Load (Kg) | Length (Mm) | Width (Mm) | Height (Mm) | Honeycomb Tabletop Thickness (Mm) |
|---|---|---|---|---|---|
| DIT-AS-HC-01-757590 | upto 700 | 750 | 750 | 900 | 100 |
| DIT-AS-HC-02-906090 | upto 800 | 900 | 600 | 900 | 100 |
| DIT-AS-HC-03-909090 | upto 1000 | 900 | 900 | 900 | 150 |
| DIT-AS-HC-04-12010090 | upto-1200 | 1200 | 1000 | 900 | 150 |
| DIT-AS-HC-05-12012090 | upto-1200 | 1200 | 1200 | 900 | 150 |
| DIT-AS-HC-06-18012090 | upto-1500 | 1800 | 1200 | 900 | 200 |
| DIT-AS-HC-07-300150100 | upto-3600 | 3000 | 1500 | 1000 | 300 |
