Dynemech Anti Vibration Tables – Series DIT-AS-CM are ideal for isolation of LOW-FREQUENCY vibration due to working machines like presses, hammers, VMCs, nearby trafic, railway line or construction work etc. The passive vibrations are absorbed by the pneumatic mounts making the surface plate float on compressed air. These Anti-Vibration Tables have a Corian Marble Plate. These Vibration Tables provide economical solution where low frequency vibrations need to be removed. Continuous air supply is required to compensate the pressure drop.

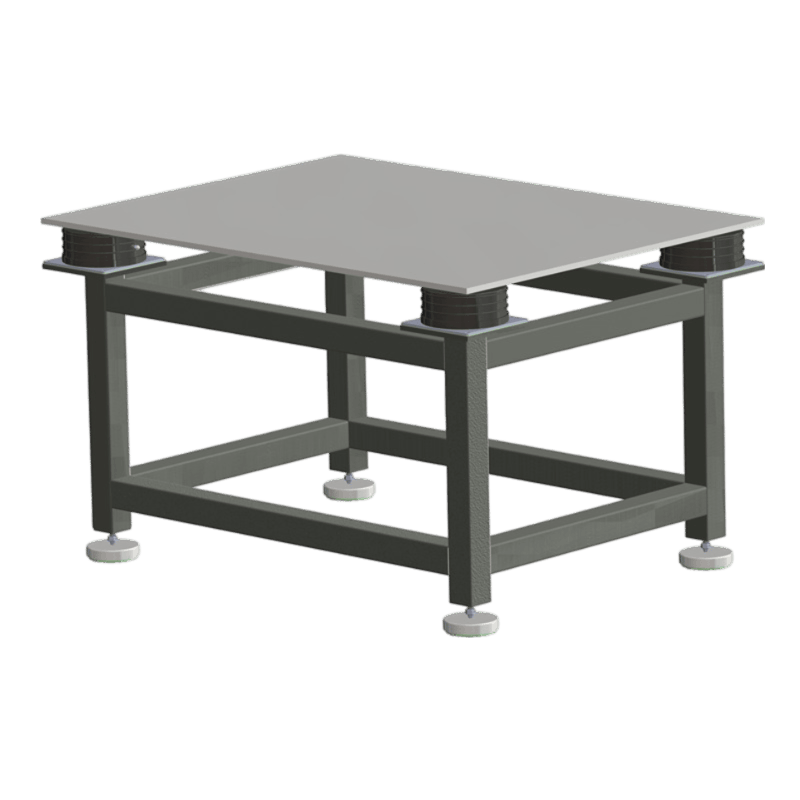

Anti Vibration Table On Air Spring With Manual Levelling With Corian Marbletop, Series DIT-AS-CM
Description
Catalogue
Model
Graph
Graph
Series:
Anti Vibration Table On Air Spring With Manual Levelling With Corian Marbletop, Series DIT-AS-CM
Applications:
The Vibration Isolated Table (VIT) finds usage in critical areas where reading accuracy of instruments like CMM, Spectroscopes, Balances, Galvanometers, Electronic Microscopes and Atomic Absorption Spectrophotometers, is affected by Vibrations
| Model | Load (Kg) | Length (mm) | Width (mm) |
|---|---|---|---|
| DIT-AS-CM-01 | upto 400 | 500 | 500 |
| DIT-AS-CM-01-S1 | upto 400 | 630 | 630 |
| DIT-AS-CM-02 | upto 500 | 750 | 500 |
| DIT-AS-CM-03 | upto-1250 | 900 | 600 |
| DIT-AS-CM-04 | upto-1250 | 1000 | 800 |
