Anti Vibration Table Auto Levelling Pneumatic Isolation with High Vibration Isolation, Series DIT-AHL

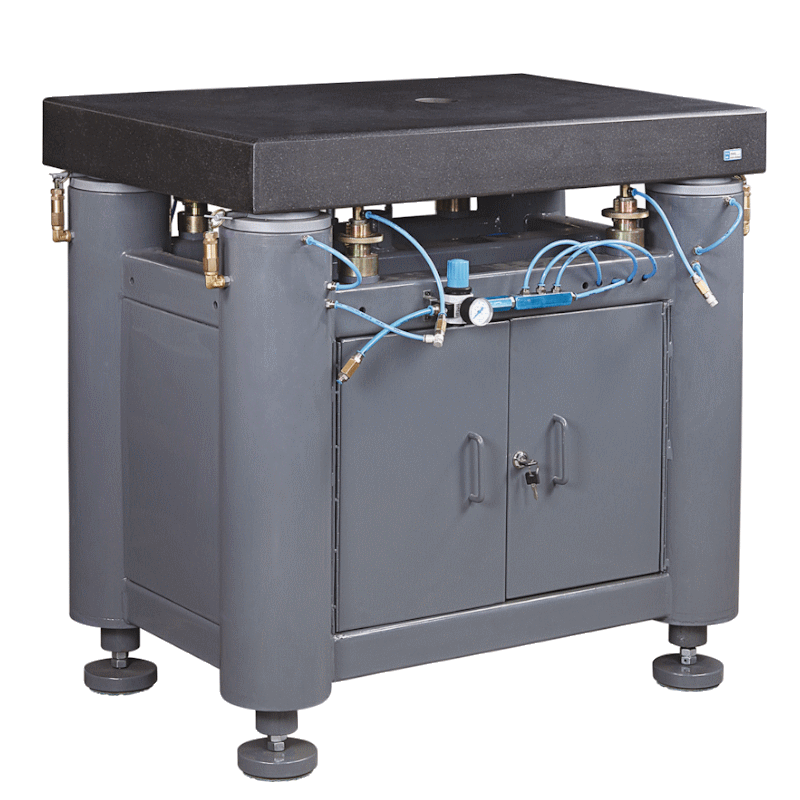

Anti Vibration Table Auto Levelling Pneumatic Isolation With High Vibration Isolation With Granite Top, Series DIT-AHL-GN
Product
Anti Vibration Table Auto Levelling Pneumatic Isolation With High Vibration Isolation With Granite Top, Series DIT-AHL-GN
Description
Dynemech Anti Vibration Table DIT-AHL-GN has natural frequency in the range of 1-2 Hz along with selF-levelling feature. Available self-levelling accuracy is ± 0.015 mm and ± 0.15 mm with minimum setting time, depending upon the application requirement. membrane air springs are used which damps most of the incoming vibrations above 10 Hz. Level difference on top of the granite surface due to any load change and the equipment is compensated within milliseconds. This table has a high levelling accuracy.
Application
Metrology Equipments, High Precision Weighing Balances, TGA, Digital Hardness Testers, High Resolution Microscopes, surface roughness testers, etc
| Model | Load (Kg) | Length (Mm) | Width (Mm) | Granite Table Top Thickness (Mm) |
|---|---|---|---|---|
| DIT-AHL-GN-01 | upto 400 | 500 | 500 | 80 |
| DIT-AHL-GN-01-S1 | upto 400 | 630 | 630 | 80 |
| DIT-AHL-GN-02 | upto 850 | 750 | 500 | 80 |
| DIT-AHL-GN-03 | upto-1150 | 900 | 600 | 100 |
| DIT-AHL-GN-04 | upto-1250 | 1000 | 800 | 150 |

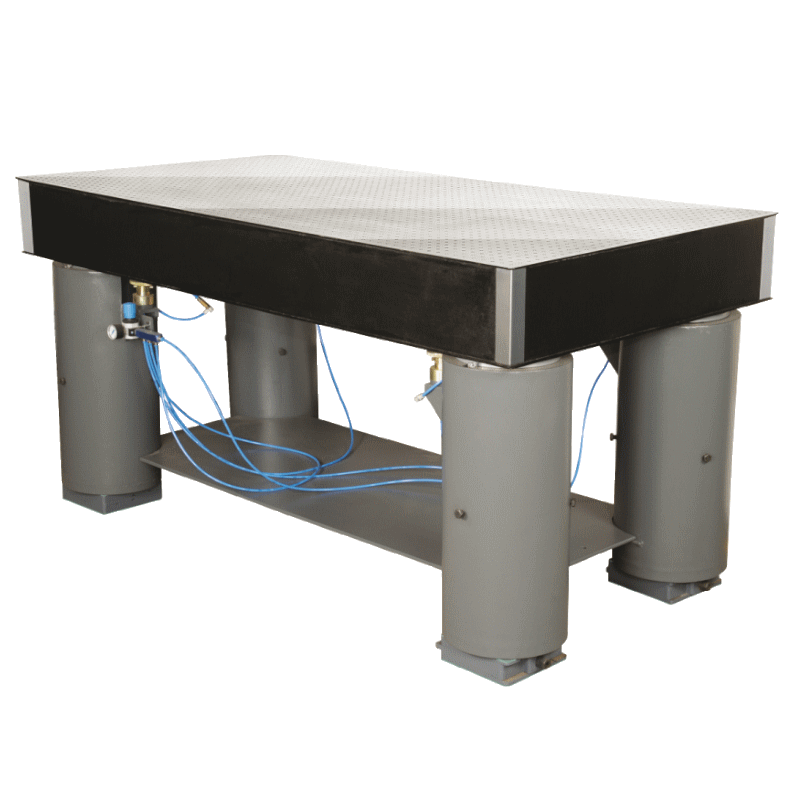

Anti Vibration Table Auto Levelling Pneumatic Isolation With High Vibration Isolation With Honeycomb Breadboard, Series DIT-AHL-HC
Product
Anti Vibration Table Auto Levelling Pneumatic Isolation With High Vibration Isolation With Honeycomb Breadboard, Series DIT-AHL-HC
Description
Dynemech Anti Vibration Table DIT-AHL-HC has natural frequencyin the range of 1.0-1.2 Hz along with self levelling feature. Available self-levelling accuracy is +/- 0.1 mm with minimum setting time, depending upon the application requirement. Membrane air springs are used which damps most of the incoming vibrations above 10 Hz. Bottom levelling feet Wedge Mounts provide levelling and vibration reduction. Level difference on top of the Honecomb Table Top due to any load change and the equipment is compensated within milliseconds.
| Model | Load (Kg) | Length (Mm) | Width (Mm) | Honeycomb Tabletop Thickness (Mm) |
|---|---|---|---|---|
| DIT-AHL-HC-01 | upto 400 | 500 | 500 | 80 |
| DIT-AHL-HC-01-S1 | upto 400 | 630 | 630 | 80 |
| DIT-AHL-HC-02 | upto 850 | 750 | 500 | 80 |
| DIT-AHL-HC-03 | upto-1150 | 900 | 600 | 100 |
| DIT-AHL-HC-04 | upto-1250 | 1000 | 800 | 150 |

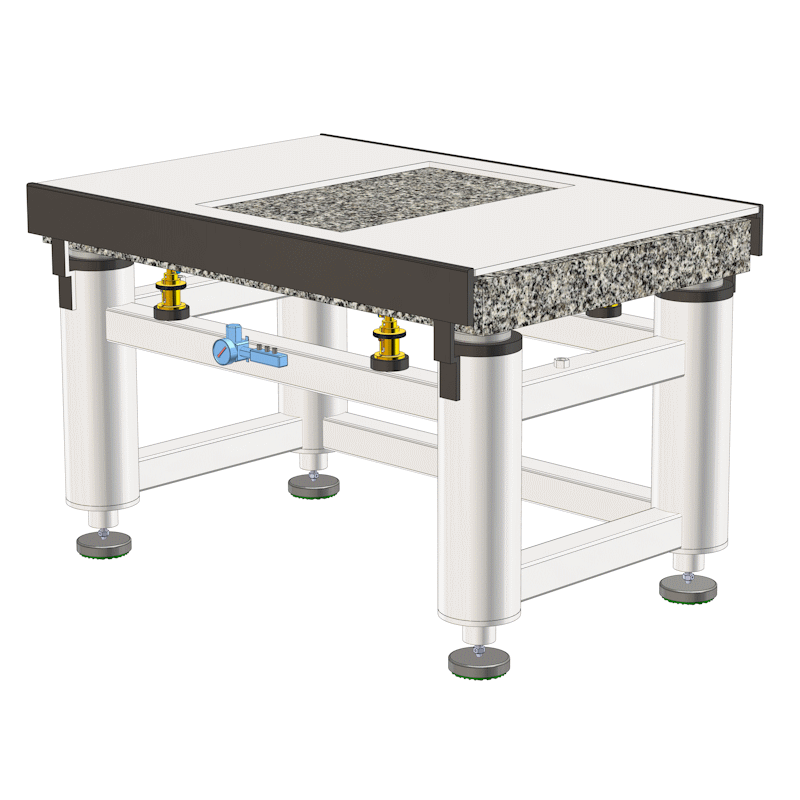

Anti Vibration Table Auto Levelling Pneumatic Isolation With High Vibration Isolation With Corian Marble & Granite Payload, Series DIT-AHL-CM-GP
Product
Anti Vibration Table Auto Levelling Pneumatic Isolation With High Vibration Isolation With Corian Marble & Granite Payload, Series DIT-AHL-CM-GP
| Model | Load (Kg) | Length (Mm) | Width (Mm) | Height (Mm) | Corian Marble Tabletop Thickness (Mm) |
|---|---|---|---|---|---|
| DIT-AHL-CM-GP-01 | upto 400 | 500 | 500 | 800-1000 | 12 |
| DIT-AHL-CM-GP-01-S1 | upto 400 | 630 | 630 | 800-1000 | 12 |
| DIT-AHL-CM-GP-02 | upto 850 | 750 | 500 | 800-1000 | 24 |
| DIT-AHL-CM-GP-03 | upto-1150 | 900 | 600 | 800-1000 | 24 |
| DIT-AHL-CM-GP-04 | upto-1250 | 1000 | 800 | 800-1000 | 24 |

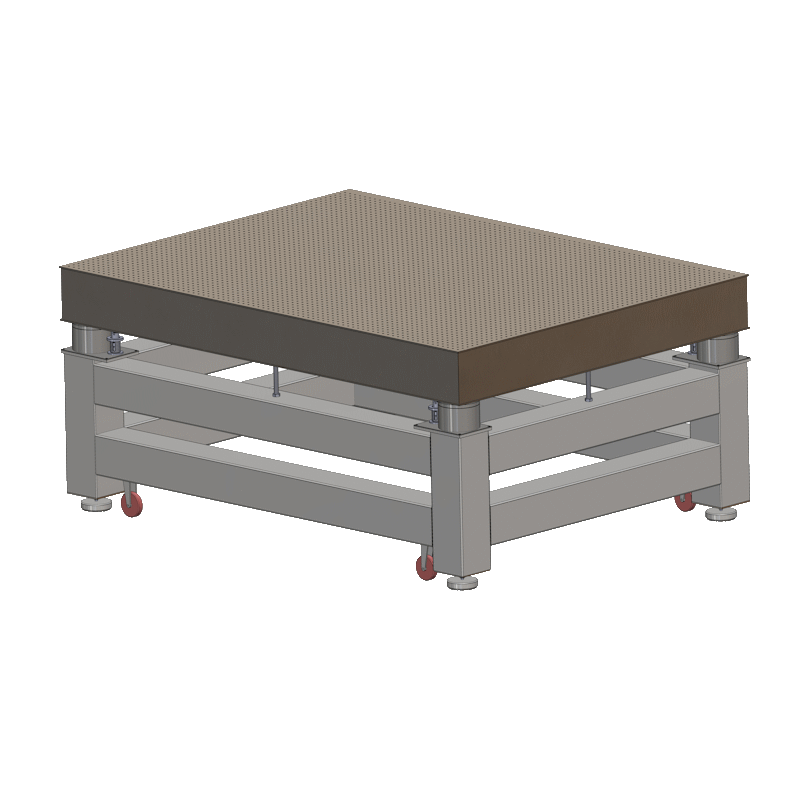

Anti Vibration Table Onauto Levelling Pneumatic Isolation With High Vibration Isolation With Steel Cabinets And Castors, Series DIT-AHL-CDC
Product
Anti Vibration Table Onauto Levelling Pneumatic Isolation With High Vibration Isolation With Steel Cabinets And Castors, Series DIT-AHL-CDC
| Model | Load (Kg) | Length (Mm) | Width (Mm) | Height (Mm) | Granite Table Top Thickness (Mm) |
|---|---|---|---|---|---|
| DIT-AHL-CDC-01 | upto 400 | 500 | 500 | 800-1000 | 80 |
| DIT-AHL-CDC-01-S1 | upto 400 | 630 | 630 | 800-1000 | 80 |
| DIT-AHL-CDC-02 | upto 850 | 750 | 500 | 800-1000 | 80 |
| DIT-AHL-CDC-03 | upto-1150 | 900 | 600 | 800-1000 | 100 |
| DIT-AHL-CDC-04 | upto-1250 | 1000 | 800 | 800-1000 | 150 |
