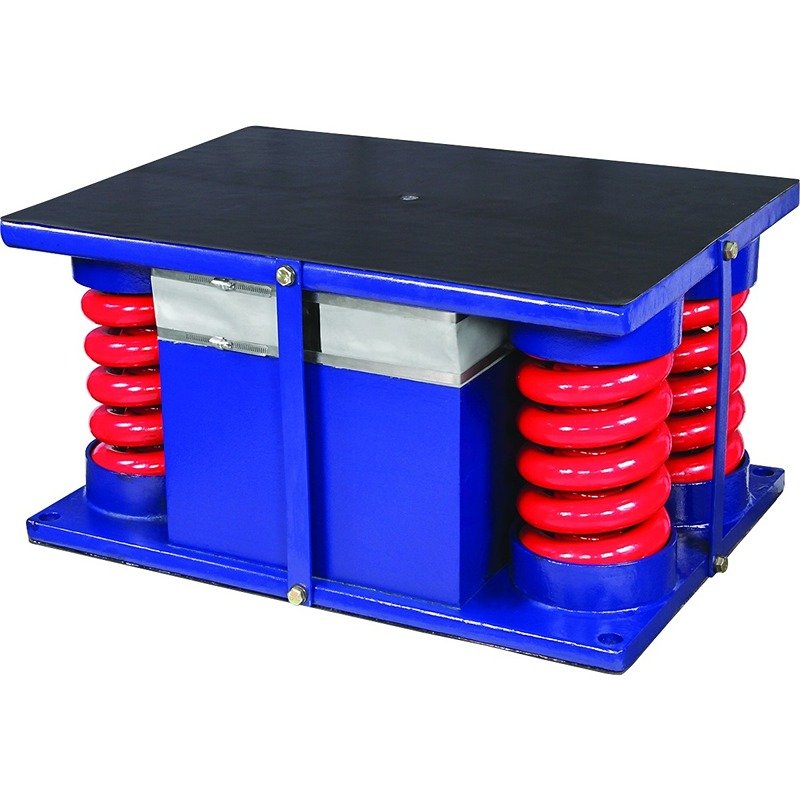

DSI 4.40
Spring isolators with viscous damping model DSI 4.40 are designed to mitigate the intense vibrations and shocks generated by forging hammers. These isolators combine the elastic properties of springs with the energy dissipation characteristics of viscous dampers to provide effective vibration isolation and damping.
Application
Forging hammers, Crushers, high shock and vibration generating machines.
Documents
2 Models
| Model | Loadpc (Kg) | Free Height H (Mm) | Bolt G | Top Plate Axb (Mm) | Bottom Plate Axb (Mm) | Natural Frequency Range (Hz) |
|---|---|---|---|---|---|---|
| DSI 4.40 | 20000 | 410 | M24 | 810X580 | 810X580 | 04-06 |
| DSI 4.40-S1 | 20000 | 310 | M24 | 810X580 | 810X580 | 04-06 |
