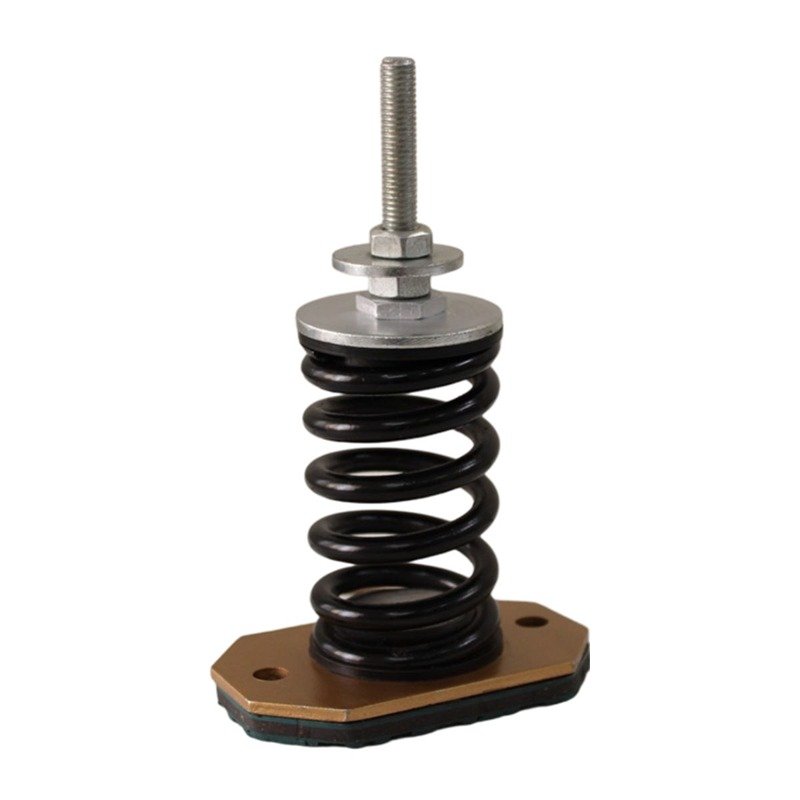

DOS-8
Dynemech Open type spring isolators provides high vibration isolation to plant and machinery and HVAC equipments.These isolators are compact and economical.
Images
Technical Data
Specifications
| Specification | Value |
|---|---|
| Part No | DOS-8 |
| Rated Load (Kg) | 210 |
| Deflection At Rated Load (Mm) | 25 |
| Height At Maximum Load (Mm) | 97.5 |
| A | 122.5 |
| B | 85 |
| (°C) | 70 |
| D Capital | 110 |
| E | 6.5 |
| F | M10 |
| G | 10 |
| H 2 | 46 |
| J | 57 |
