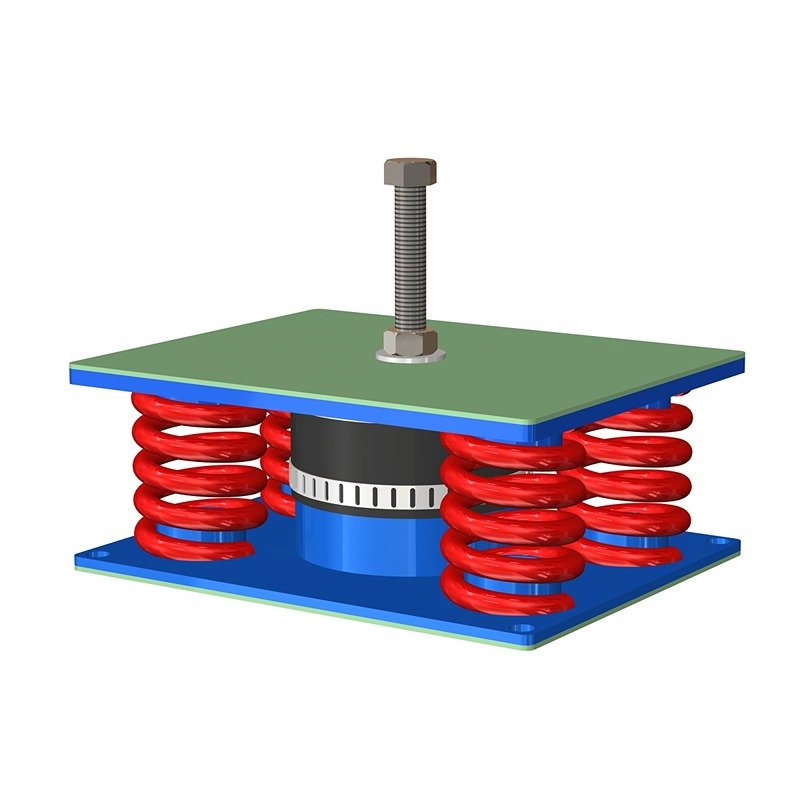

RDD-G5-OPSD
Images
Technical Data
Specifications
| Specification | Value |
|---|---|
| Load (Kg) | 314 |
| Free Height H | 108 |
| Height At Maximum Load (Mm) 2 | 88 |
| Bolt G | M16 |
| Top Plate Axb (Mm) | 275x220 |
| Bottom Plate Cxd (Mm) | 275x220 |
| Cc (Mm) | 255x200 |
| Natural Frequency Range (Hz) | 5.0-10 |
