Spring isolators with multi-degree restrainer are designed to provide high vibration isolation and energy dissipation for machinery and equipment. They combine the elastic properties of springs with high energy absorption capabilities of a secondary elastomeric support. These dampers are particularly effective in applications where significant reduction of shock is required such as power presses, shearing machines, Press Brake etc.

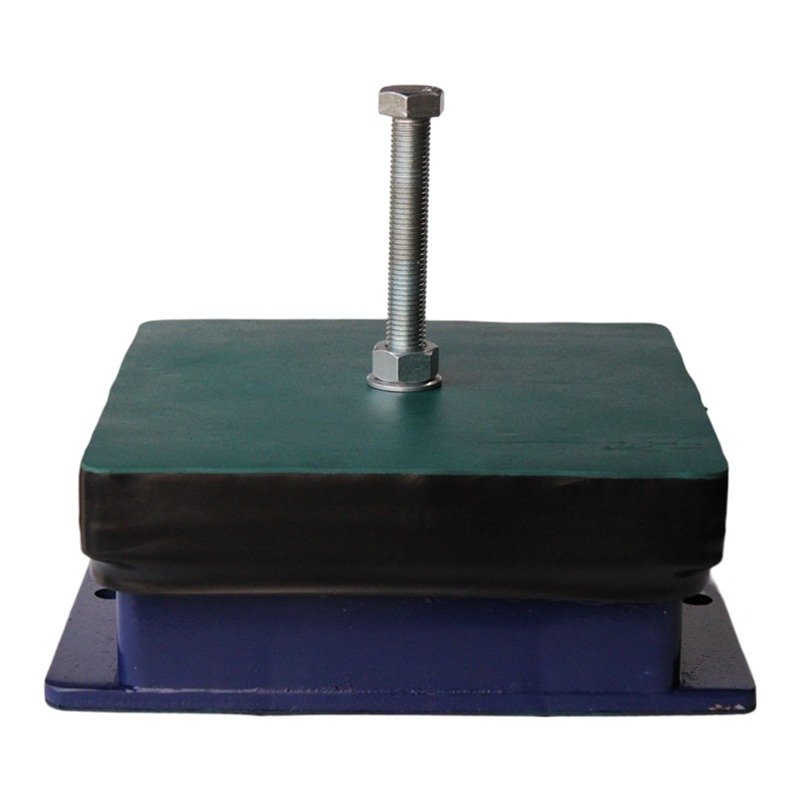

RDD - Image 1

13 Models

ModelLoad (Kg)Free Height HBolt SizeTop Plate Axb (Mm)Bottom Plate Cxd (Mm)Cc (Mm)Natural Frequency Range (Hz)
RDD-E2-M16x2.0x150128112M16232X207271X1762413.5-11
RDD-F2-M16x2.0x15040-240112M16232X207271X17624103-08
RDD-F5-M16x2.0x150244112M16232X207271X1762413.5-11
RDD-G1-M16x2.0x150440112M16232X207271X1762413.5-11
RDD-G5-M16x2.0x150628112M16232X207271X1762413.5-11
RDD-H2-M16x2.0x150100-800112M16232X207271X1762413.5-11
RDD-H5-M16x2.0x150840112M16232X207271X1762413.5-11
RDD-J2-M16x2.0x150110-1200112M16232X207271X1762413.5-11
RDD-K3-M16x2.0x150800-340080M16202X177241X1462115.0-10
RDD-L3-M16x2.0x150200-2000112M16232X207271X1762413.5-11
RDD-N5-M16x2.0x1501600-4800112M16232X207271X1762413.5-11
RDD-P3-M16x2.0x1502000-3500112M16232X207271X1762415.0-09
RDD-P5-M16x2.0x1501000-3000102M16252X228291X1962615.0-09
