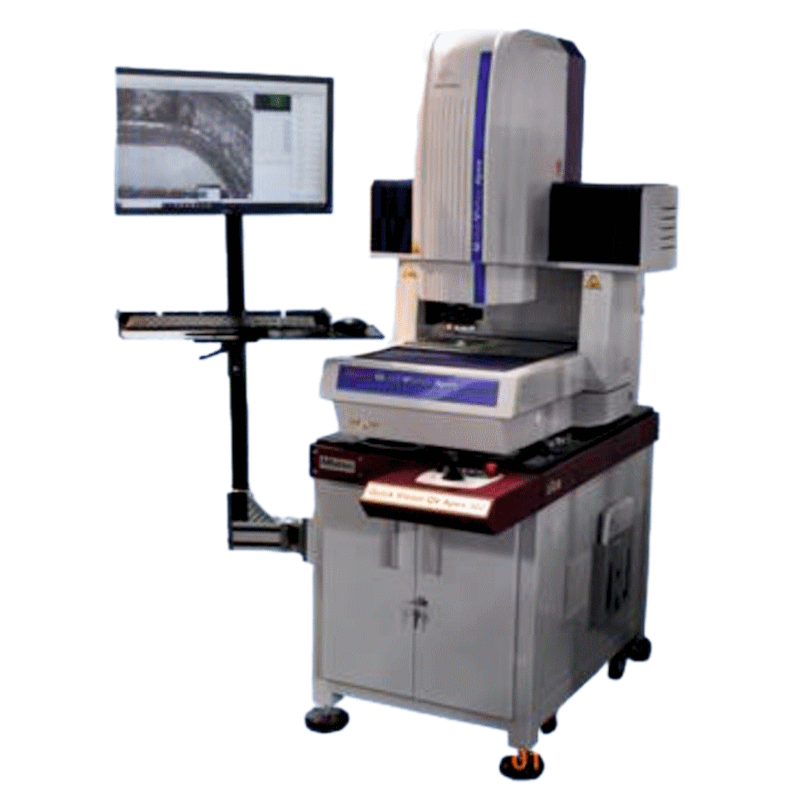

AVT P-87-02-A

Details

Features

• Granite base of size L 600 X B 900 X T 30 mm
• 60 mm Tubular Structure with cross member
• Wrap around construction
• Front panel laser cut with top rim and Z-plates at bottom to lock joystick
• All three sides closed, bottom sheet to place controller, CPU and UPS; with exhaust fan.
• Front double door with handles and lock.
• Front pivot jointed heavy duty links with extended horizontal connecting profile and vertical 45 X 45 connecting profile, monitor bracket at top, keyboard and mouse tray at ~1000 mm height (newly introduced!).
• 65 X 65 mm AV pads at 10 places
• 4 No’s DLP3 (AV disc with adjustable screws) at Ground Level
• 4 No’s – 3” Wheel
• Cable manager in LH and rear side, drawing pouch in RH side
• Power strip in rear; Leveling Ball, Spanner 24/27
• Powder Coat, structure and joystick panel RAL 9002
• Instrument sticker
• Overall dimensions: L 620 X B 1110 X H 767 (over granite base) mm
• Weight: kg
• Execution in wooden box
