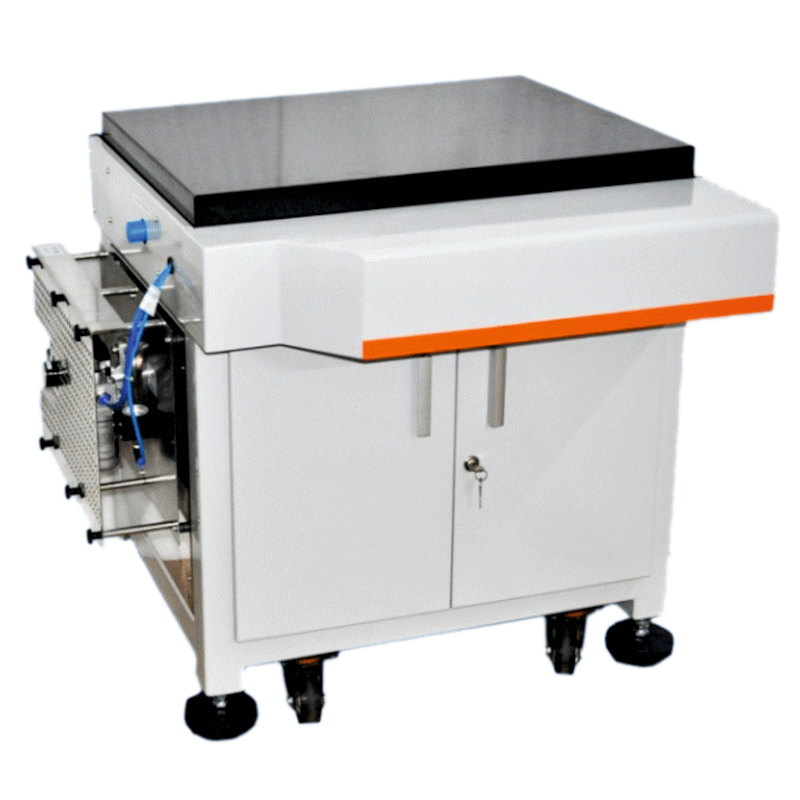

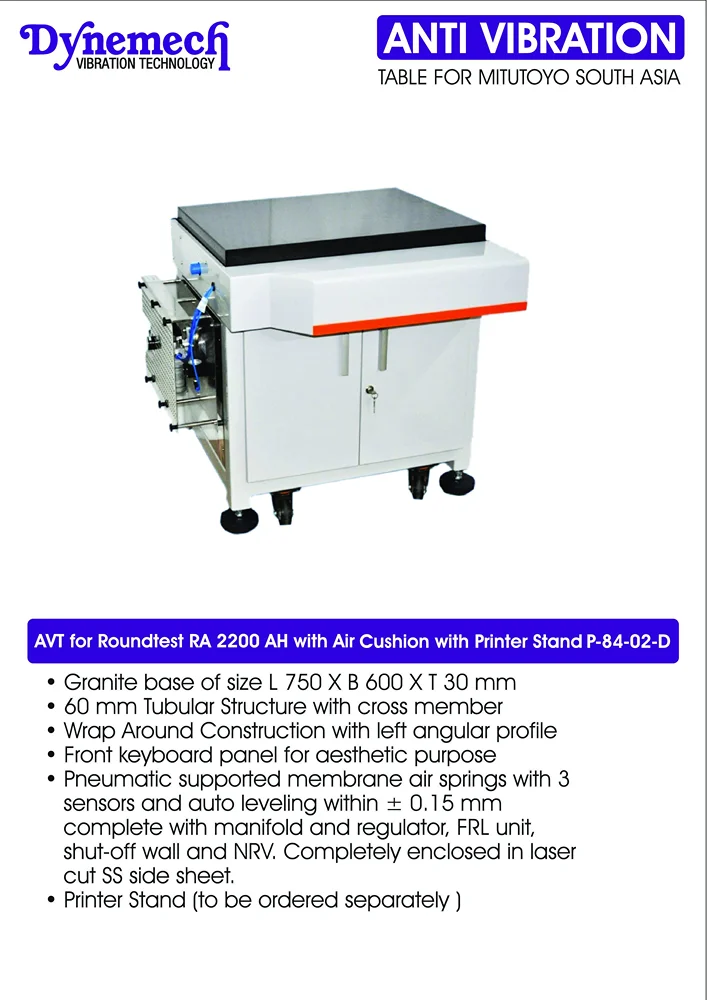

AVT P-84-02-D

Details

Features

• Granite base of size L 750 X B 600 X T 30 mm
• 60 mm Tubular Structure with cross member
• Wrap Around Construction with left angular profile
• 4 No’s DLP3 (AV disc with adjustable screws) at Ground Level
• 4 No’s – 3” Wheel
• Front keyboard panel for aesthetic purpose
• Pneumatic supported membrane air springs with 3 sensors and auto leveling within ± 0.15 mm complete with manifold and regulator, FRL unit, shut-off wall and NRV. Completely enclosed in laser cut SS side sheet.
• Additional printer stand to accommodate CPU console, monitor, keyboard and mouse; and pull-out tray
• Power Strip in Rear; controller and UPS inside structure
• Drawing Pouch LH Side, cable manager at rear side
• Front double door with handles and lock
• Leveling Ball, Spanner 24/27
• Powder Coat, structure, side sheets and doors RAL 9002
• Instrument sticker
• Overall dimensions: L 770 X B 770 X H 730 (over granite base) mm
• Printer stand dimensions: L 600 X B 770 X H 730 mm
• Weight: kg
• Execution in wooden box
