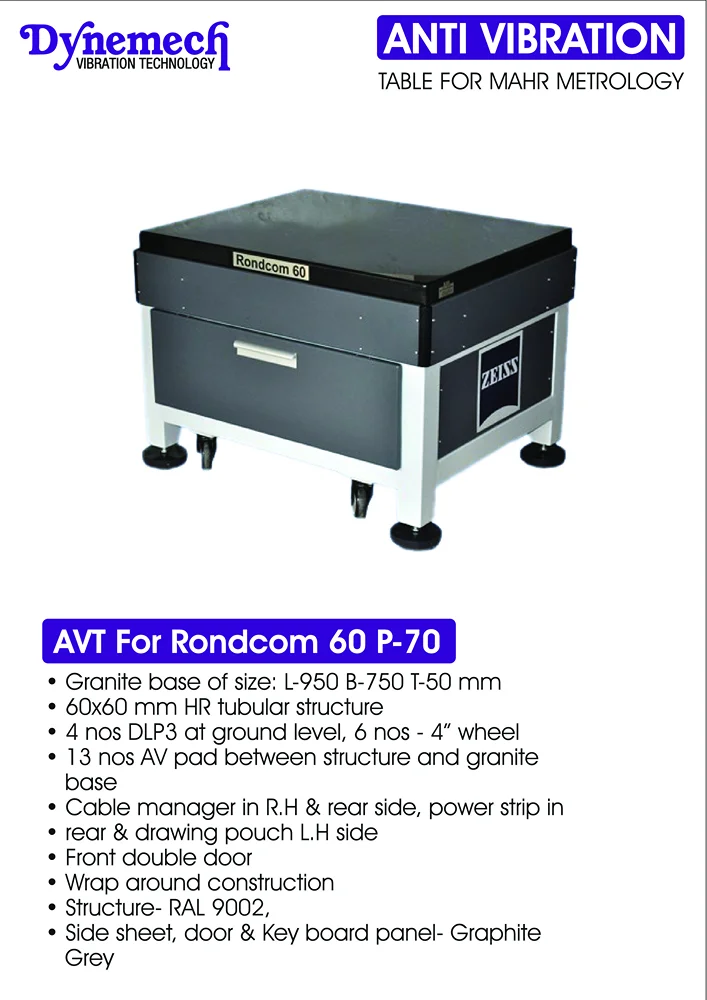

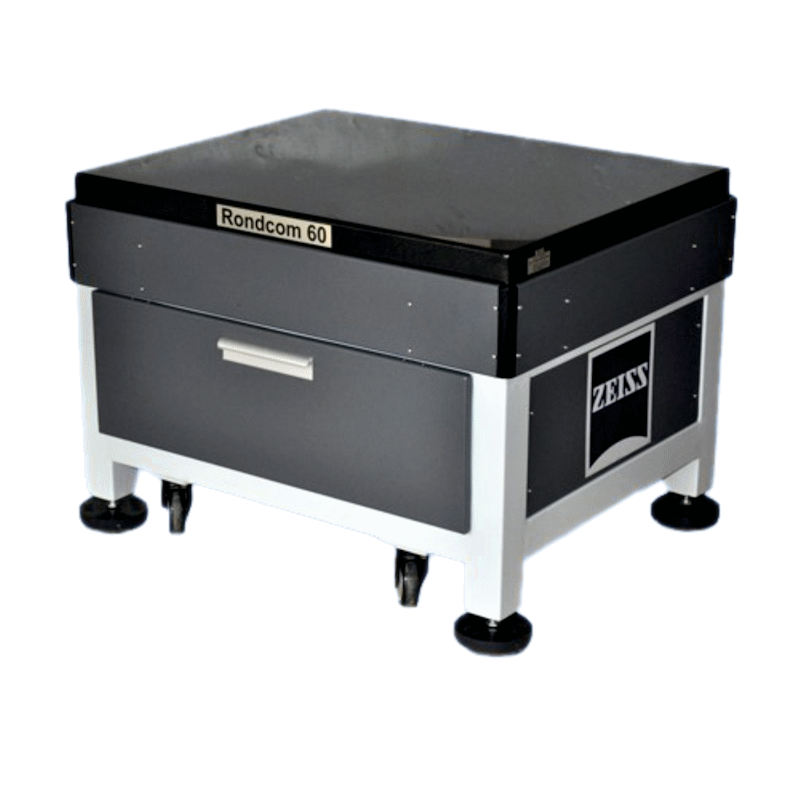

AVT P-70

Details

Features

• Granite size L 900 x B 600 x T 50 mm over steel structure
• 60 x 60 mm Square Tubular Heavy Duty Steel Structure with cross member
• Wrap around construction
• Front hinge door
• 4 Nos. 4’’ wheels
• 4 Nos. DLP4 AV discs at floor level
• 9 Nos. 65 x 65 mm AV Pads between Granite and structure
• Drawing pouch, leveling ball, spanner 24/27
• Power Strip in Rear
• Drawing Pouch LH Side
• Powder Coat, structure RAL 9002, side sheets and doors – graphite gray
• Instrument sticker
• Overall dimensions: L 920 X B 620 X H 730 (over granite base) mm
• Weight: kg
• Execution in wooden box
