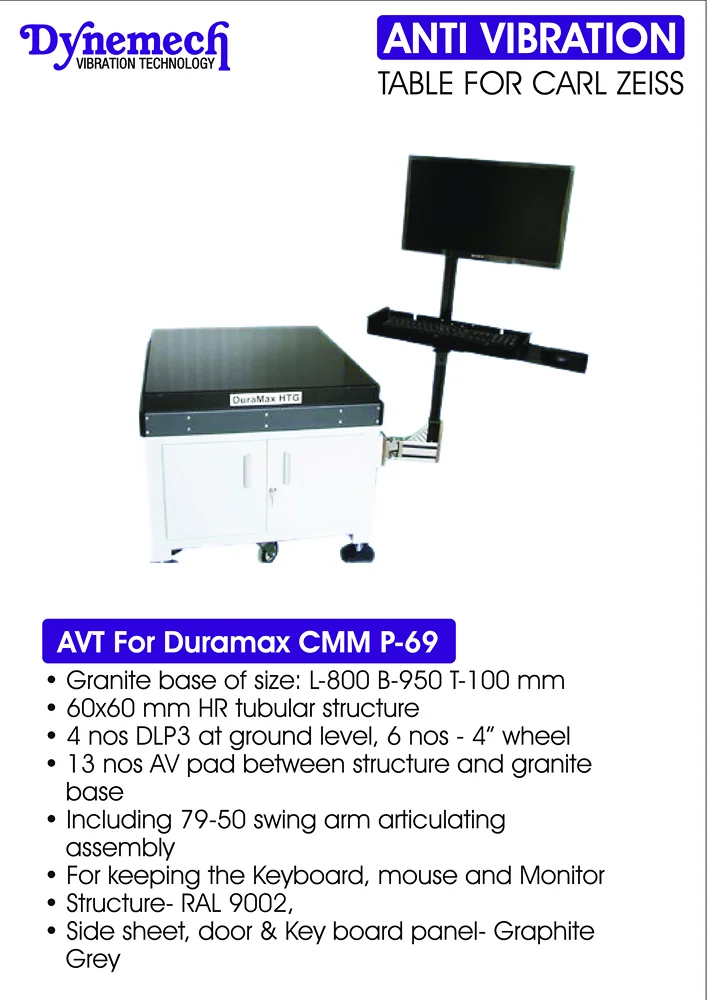

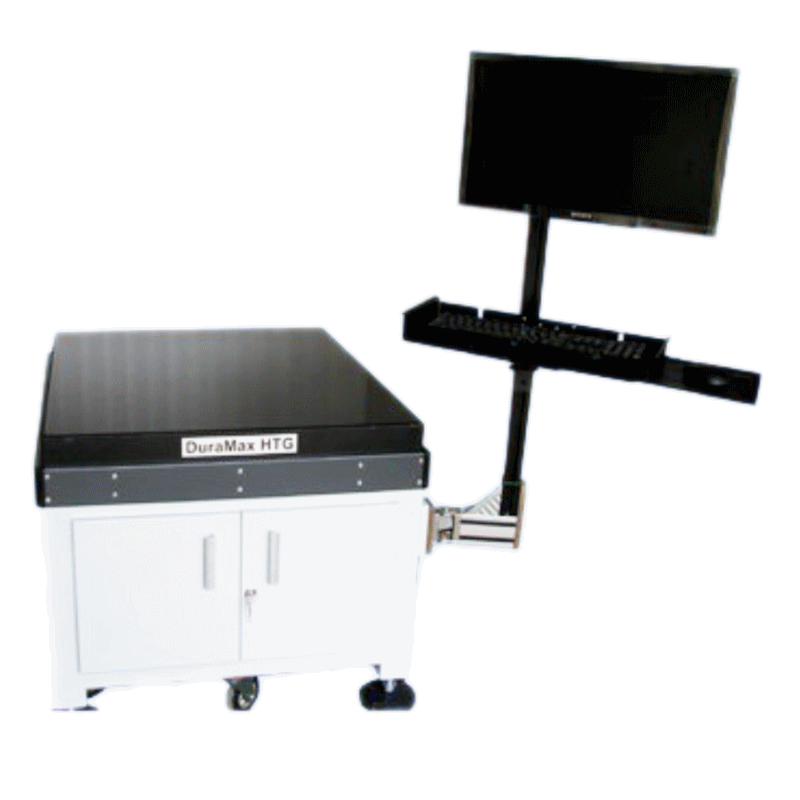

AVT P-69

Details

Features

• Granite base of size : L 800 X B 950 X T 100 mm
• Wrap Around Construction
• 72 × 72 mm HR tubular structure
• 4 No’s DLP4 (AV disc with adjustable screws) at Ground Level
• 13 no’s AV pad between structure and granite base
• 6 no’s – 4” wheel
• Cable manager in R.H. Side and rear side, power strip in rear side
• Drawing pouch; controller, CPU and UPS inside structure
• Front double door with handles and lock
• Powder coat color as per customer specification
• Front swing arm in pivoted joint assembly with horizontal and vertical supported profile to hold monitor, keyboard and mouse. Can be mounted on LH or RH side (newly introduced!)
• Overall dimensions: L 830 X B 980 X H 750 mm
• Weight:
• Execution in wooden box
• [Note: We will provide the dimensions]
