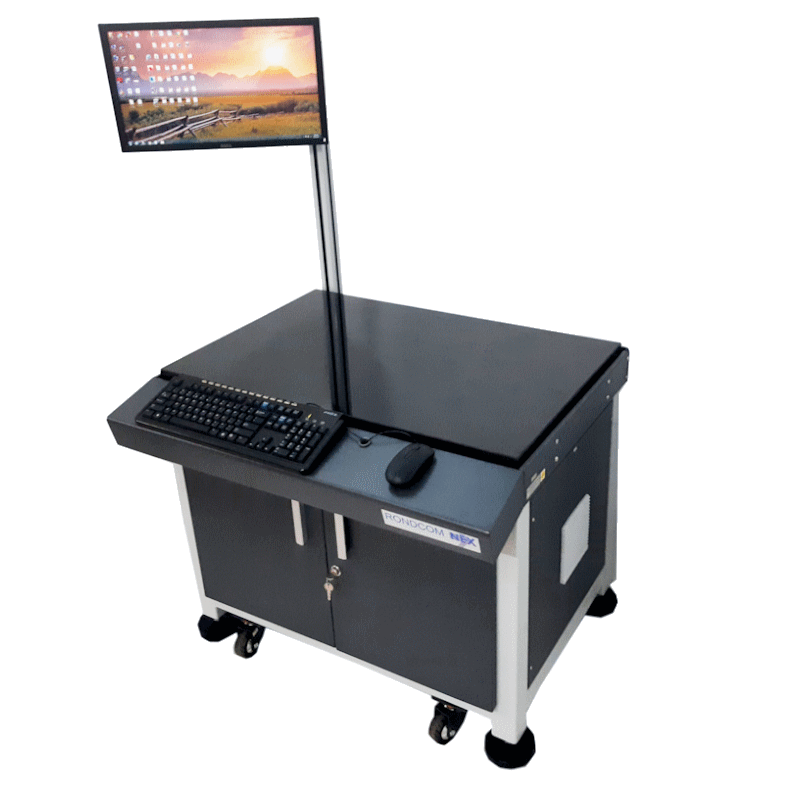

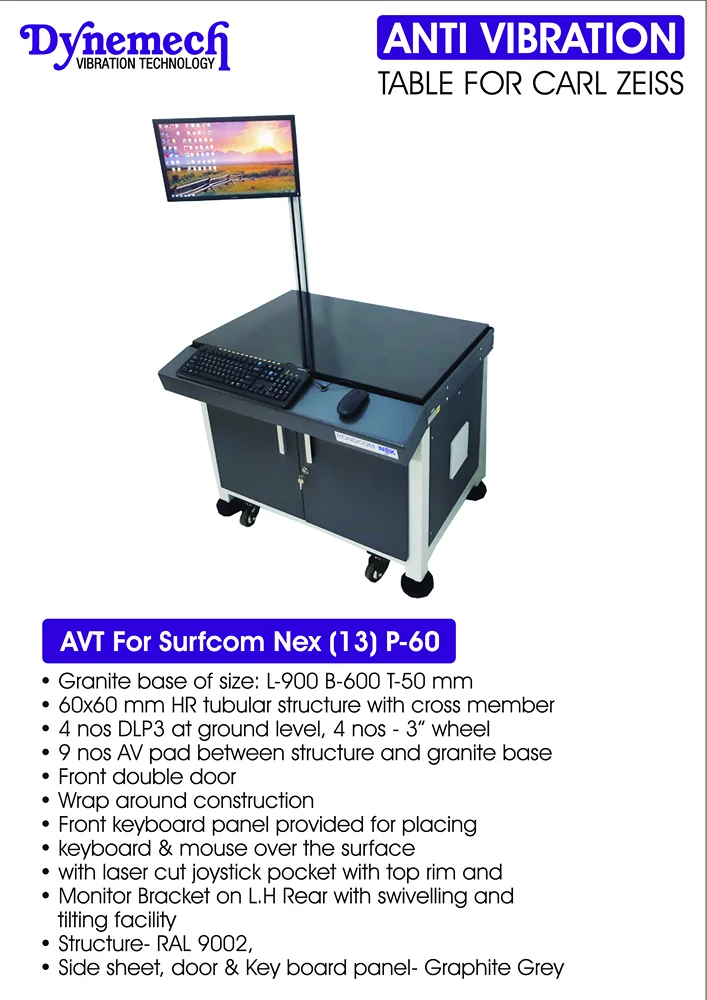

AVT P-60

Details

Features

• Granite base of size L 900 X B 600 X T 50 mm
• 60 mm Tubular Structure with cross member
• Wrap Around Construction
• Swiveling bracket for monitor
• 65 X 65 mm AV pads at 9 places
• 4 No’s DLP3 (AV disc with adjustable screws) at Ground Level
• 4 No’s – 3” Wheel
• Front keyboard panel for keyboard and mouse with laser cut joystick pocket, top rim and Z-plates at bottom with support plate to fix joystick
• Power Strip in Rear; controller, CPU and UPS inside structure
• Drawing Pouch L.H Side, cable manager at rear side
• Front double door with handles and lock
• Leveling Ball, Spanner 24/27
• Powder Coat, structure RAL 9002, side sheets and doors – graphite gray
• Instrument sticker
• Overall dimensions: L 920 X B 820 X H 730 (over granite base) mm
• Execution in wooden box
