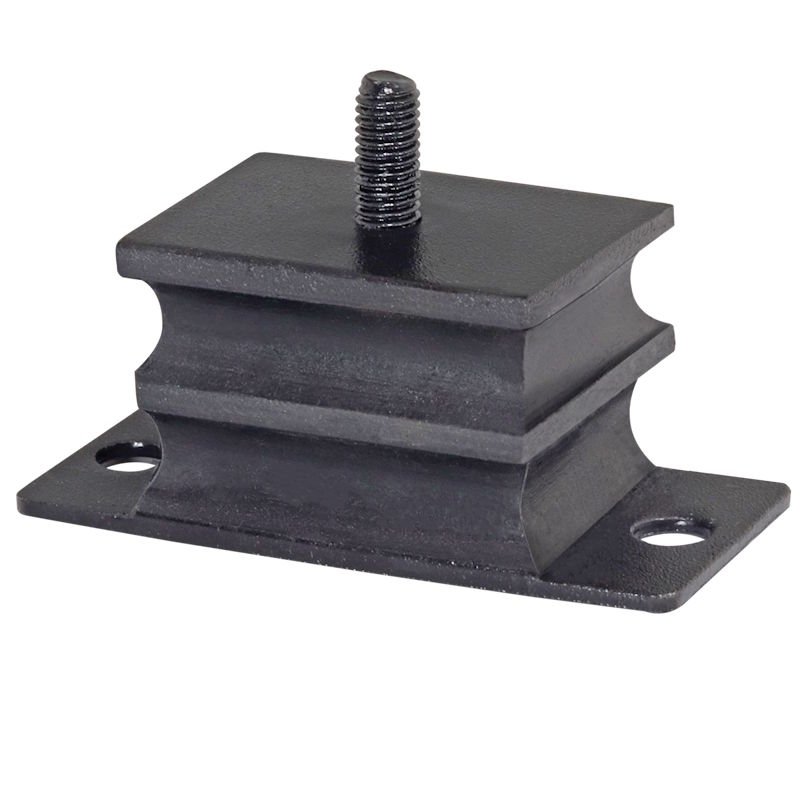

DMS1
The sandwich mounts comprise one or more layers of elastomer bonded to flat steel plates. They are designed to withstand very high compressive loads. These mounts have large supporting surface area and are slim. These mounts can also be stacked to achieve lower natural frequencies.
Documents
5 Models
| Model | Max Load Capacity (Kg/Pc) | L X B (Mm) | C X D (Mm) | Cc (Mm) | H (Mm) | L (Mm) | Bolt G | D | Thickness Of Steel Plate |
|---|---|---|---|---|---|---|---|---|---|
| DMS1-A-M8x1.25x18 | 40 | 88x41 | 57x41 | 72 | 38 | 18 | M8 | 8 | 4 |
| DMS1-B-M8x1.25x18 | 50 | 88x41 | 57x41 | 72 | 38 | 18 | M8 | 8 | 4 |
| DMS1-C-M8x1.25x18 | 75 | 88x41 | 57x41 | 72 | 38 | 18 | M8 | 8 | 4 |
| DMS1-D-M8x1.25x18 | 120 | 88x41 | 57x41 | 72 | 38 | 18 | M8 | 8 | 4 |
| DMS1-E-M8x1.25x18 | 150 | 88x41 | 57x41 | 72 | 38 | 18 | M8 | 8 | 4 |
