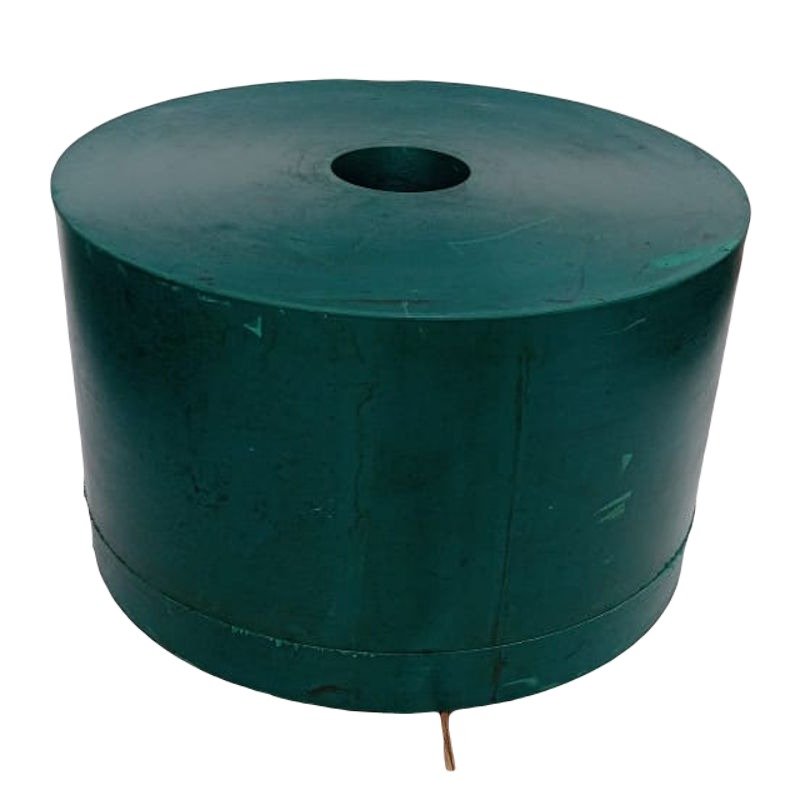

DLKI5-175
Rubber Bushes are available in various standard and customized sizes. They are made from different types of rubber material and fabric reinforcements based in the application requirements. Customized sizes and material specifications can be possible as per customer's requirement.
Images
Technical Data
Specifications
| Specification | Value |
|---|---|
| Load Capacity (Kg) | 9000 |
| Outer Diameter Od (Mm) | 200 |
| Inner Diameter Id (Mm) | 68 |
| Height H (Mm) | 175 |
| Shore A Hardness | 80-85 |
| Natural Frequency (Hz) | 7 |
| Deflection Under Load (Mm) | 26 |
| Working Temperature Range (°C) | -16 to 90 |
