VHS-LA

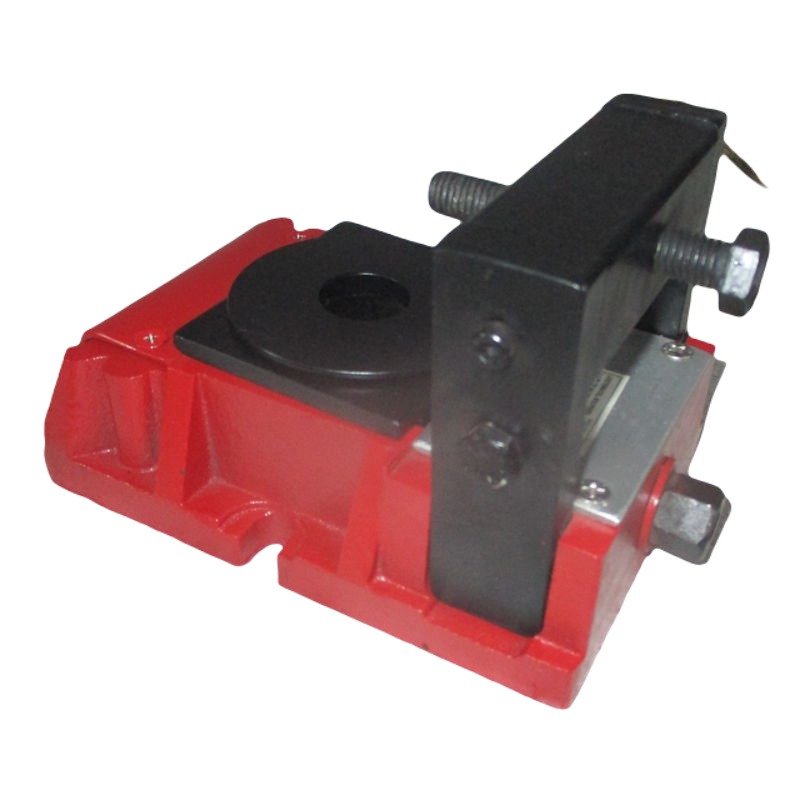

VHS-LA series mounts provides precision levelling to the machine. The leveling is possible even after grouting the outer body of this mount. A slight horizontal alignment of long bedded machines is possible using this mount.
Note -Please select dimensions "G" or "F" at the time of Order.
Documents
5 Models
| Model | Recommended Load (Kg/Pc) | Max Load (Kg/Pc) | L (Mm) | L1 (Mm) | B (Mm) | H Capital (Mm) | D (Mm) | H (Mm) | F (Mm) | G Capital | A (Mm) | Sw1 | Sw2 | E1 | E2 | Total Height With Lateral Adjuster H1 (Mm) | Lateral Adjuster Bolt Size Sw3 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VHS-LA-1-FG | 1000 | 9000 | 170 | 91 | 108 | 60 | 75 | 5 | 17 | M12 | 12 | 19 | 10 | 12.7 | 26 | 100 | m16 |
| VHS-LA-2-FG | 2000 | 12000 | 175 | 93 | 120 | 75 | 75 | 5 | 21 | M20 | 15 | 19 | 10 | 12.7 | 26 | 125 | m16 |
| VHS-LA-3-FG | 4000 | 24000 | 220 | 118 | 150 | 98 | 88 | 6 | 25 | M24 | 23 | 19 | 10 | 18 | 32 | 150 | m20 |
| VHS-LA-4-FG | 6000 | 36000 | 280 | 160 | 180 | 116 | 105 | 8 | 31 | M30 | 25 | 32 | 18 | 24 | 38 | 165 | M20 |
| VHS-LA-5-FG | 12000 | 70000 | 350 | 180 | 230 | 138 | 145 | 10 | 37 | M36 | 35 | 32 | 18 | 28 | 46 | 185 | M20 |
