Dp1

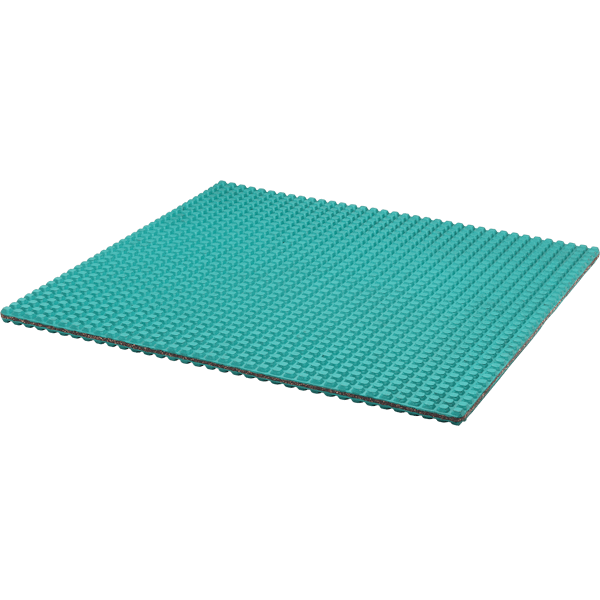

Dynemech Insulation Plates are made from the compund of Nitrile Rubber, Cork, Synthetic Fibre which at varying compositions gives different natural frequencies for providing vibration damping solution to almost every machine tool. Also the Insulation Plates are resistant to fuels, lubricating oils, water etc.
Images
Documents
Technical Data
Specifications
| Specification | Value |
|---|---|
| Code | Dp1 |
| Thickness (Mm) | 15 |
| Shore A Hardness | 40-45 |
| Tensile Strength Kgcm2 | 50 |
| Elongation | 450% |
| Temp Range (°C) | -20 to +70 |
| Load (Kg) Sq Cm | 01-04 |

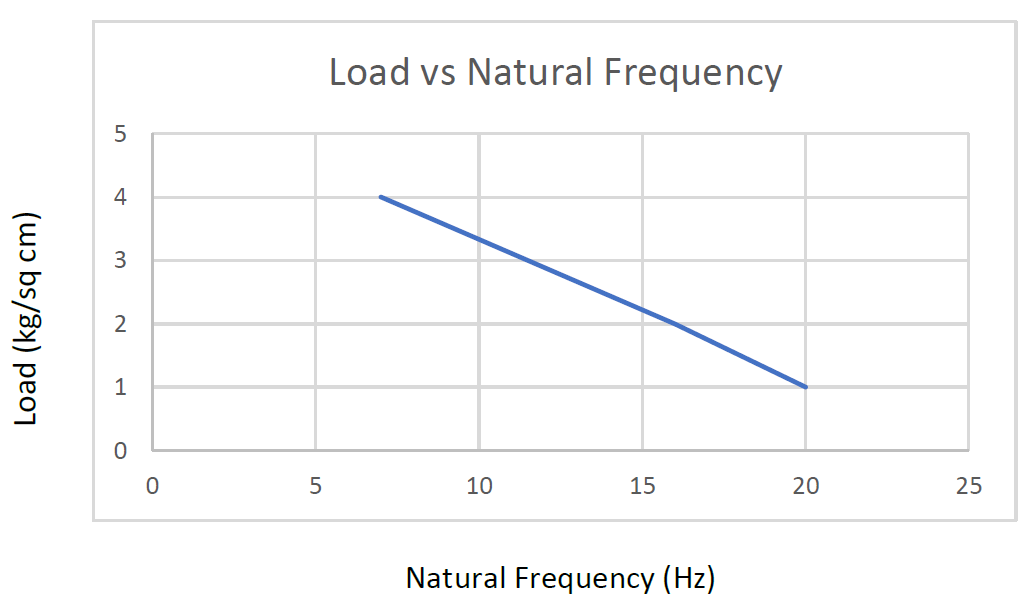

| Natural Frequency (Hz) | 07-20 |
| Coeff Of Friction | 0.8 |
| Oil And Chemical Resistance | Resistant to fuels, lubricating oils, water etc. used in the shop floor |
| Construction | Composite material made from Nitrile Rubber Cork Particles & Synthetic Particles |
| Compression Set | 25% (Max.) |
| Application | Tuned to low natural frequency, suitable for passive vibration control of Measuring and Testing Machines, Grinders etc |
