DE-25
DE series anti-vibration pads offer economical, effective and reliable vibration isolation solutions to the industrial and HVAC machines like compressors, chillers, blowers, fans, Gen sets, AC outdoor/indoor units and similar equipment. They isolate vibrations of the equipment and prevent their transmission to the surrounding structure.
Images
Documents
Technical Data
Specifications
| Specification | Value |
|---|---|
| Code | DE-25 |
| Thickness (Mm) | 25 |
| Shore A Hardness | 75 |
| Temp Range (°C) | -20 to +70 |
| Load (Kg) Sq Cm | 4 |

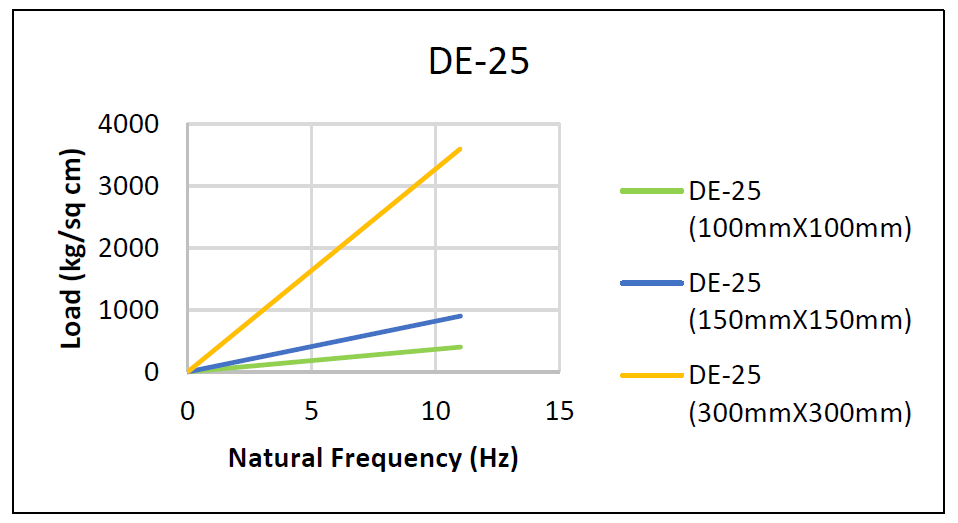

| Natural Frequency (Hz) | 08-09 |
| Coeff Of Friction | 0.8 |
| Utm Compression | ASTM D575 |
| Material | Natural Rubber |
| Application | Pumps, Engines, and Exhaust Systems, Air conditioners, Compressors & HVAC Equipments, Conveyors, Diesel Generators, Fans, Motors, Treadmils |
