Vibration Mounts India

Model
Graph

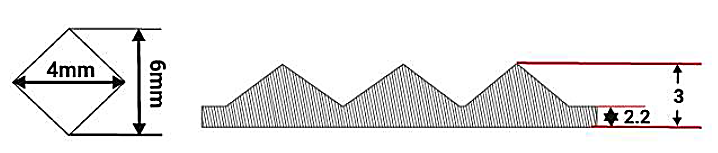

dimensional diagram

Description

The flooring with continous diamond field design is for excellent traction and easy cleaning. Non-staining, non-discoloring mat is used for both indoor and outdoor purpose. Diamond design is ideal for ramps, trailers, golf club, bridge aprons, marine areas, building access points, wheeled vehicles, trolleys, etc. Being fully weather proof it can be used either indoors or outdoors. Diamond design matting is manufactured from top quality rubber compounds giving high non-tear qualities, offering exceptional wear and grip characteristics and surefooteness.

Application

Diamond design is ideal for ramps, trailers, golf club, bridge aprons, marine areas, building access points, wheeled vehicles, trolleys, etc.

Technical Data

Thickness (mm)
3
Specific Gravity (gm/cm³)
1.5
Hardness (+/-5) (Shore A)
70+/-5
Tensile Strength (min) Kg/cm²
35
Elongation at break (min) %
250

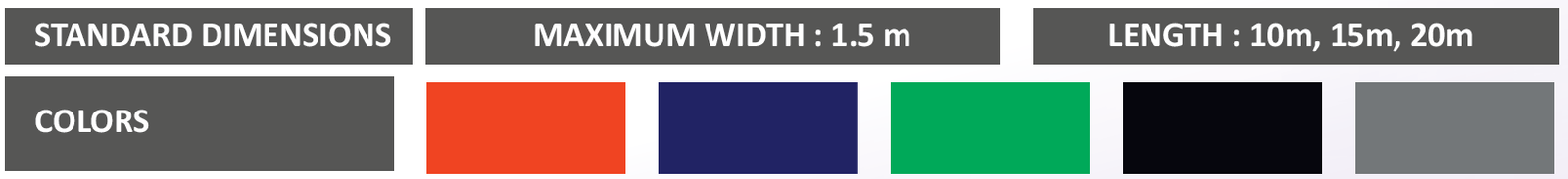

Colour
Grey, Red, Blue, Green, Black
POLYMER
NR/SBR
TEAR STRENGTH (Kg/cm)
18
Maximum Width
1.5M
