DFM
Model
Graph

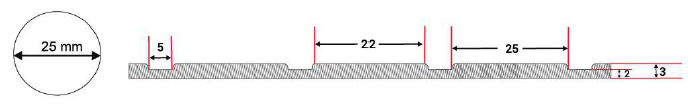

dimensional diagram
Description
This flooring mat with a raised circular design on the surface is widely used in indoor application such as airports, hotels, shopping malls etc. Available in wide variety of colours is available in this flooring. Mats are available in various compounds depending on their indented use.
Application
Such as airports, hotels, shopping malls etc.
Technical Data
Thickness (mm)
3
Specific Gravity (gm/cm³)
1.6
Hardness (+/-5) (Shore A)
80+/-5
Tensile Strength (min) Kg/cm²
35
Elongation at break (min) %
250

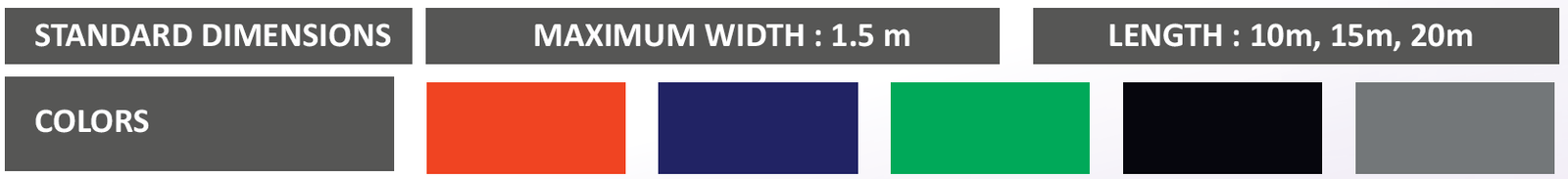

Colour
Grey, Red, Blue, Green, Black
POLYMER
NR/SBR
TEAR STRENGTH (Kg/cm)
18
Maximum Width
1.5M
