DBR
Model

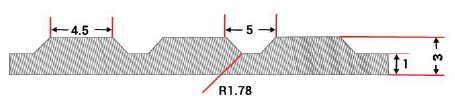

dimensional diagram
Description
This Broad Rib Mat is built for durability. This proves to be the perfect choice for most demanding resilience flooring conditions. The mats have a hardwearing and non-slip rib surface. They are ideal for use in walkways & minimize sound transmission. The Board Rib design proves to be very effective for
Application
They are ideal for use in walkways & minimize sound transmission.
Technical Data
Thickness (mm)
3
Specific Gravity (gm/cm³)
1.5
Hardness (+/-5) (Shore A)
70+/-5
Tensile Strength (min) Kg/cm²
35
Elongation at break (min) %
250
Colour
Grey, Red, Blue, Green, Black
POLYMER
NR/SBR
TEAR STRENGTH (Kg/cm)
18
Maximum Width
1.5M
