DLS1-u-55

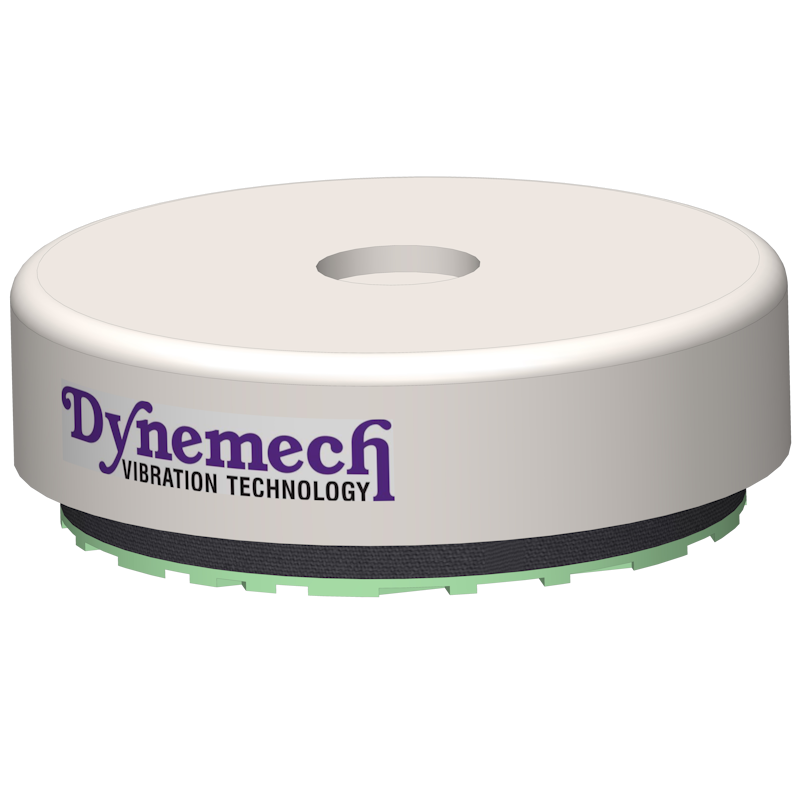

Dynemech DLS series mounts, developed in stainless steel finds application in pharmaceutical, food and beverages processing and packaging units, medical equipment manufacturing and chemical processing industries. Provide vibration isolation with complete hygienic seal and corrosion resistance.
Images
Technical Data
Specifications
| Specification | Value |
|---|---|
| Load Capacity (Kg/Pc) | 150 |

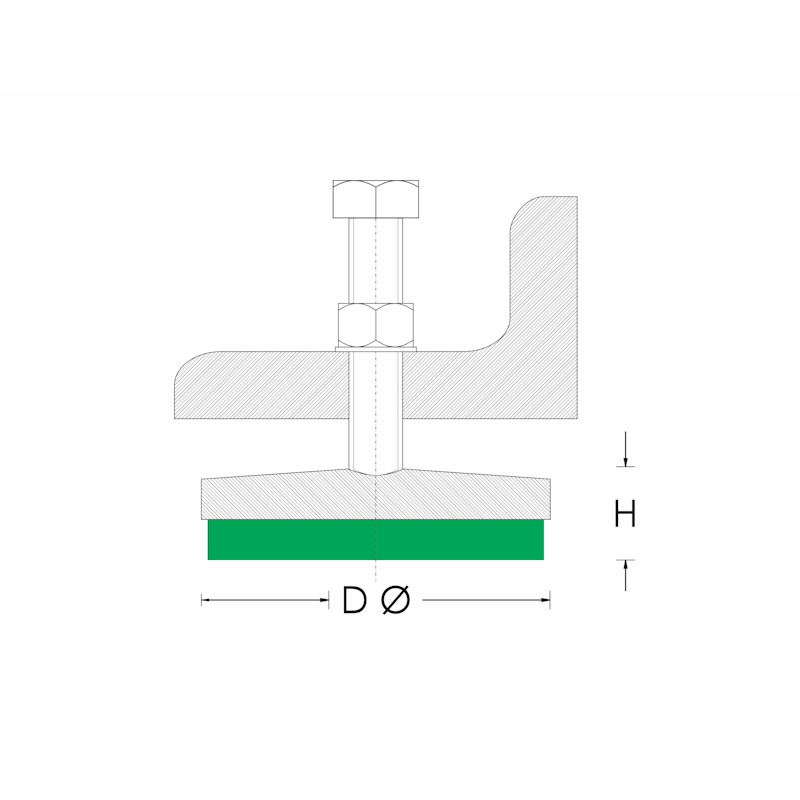

| Diameter D (Mm) | 55 |
| Height H (Mm) | 21 |
| Coeff Of Friction Against Concrete | 0.9 |
| Natural Frequency At Max Load (Hz) | 18 |
| Temperature Range (°C) | From -16 to 90 |
| Applications | Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Printing and Textile Machines (for machines having high axial forces) |
