DLM-SM-GR

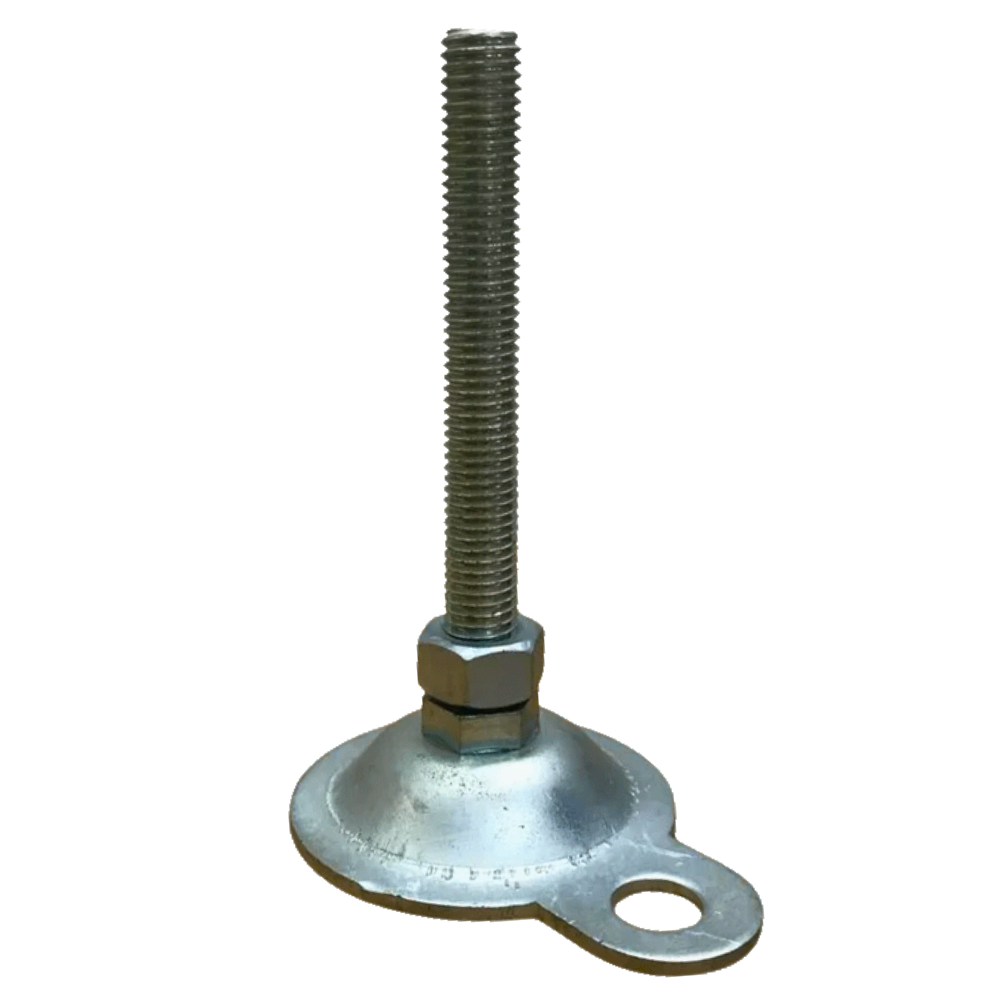

DLM-SM-GR mounts are used for levelling the machines and assembly lines having threaded hole in the base. Hole in the base is used for fixing the levelling mount with the supporting structure.
DLM-SM-GR
Product
DLM-SM-GR
Description
DLM-SM-GR mounts are used for levelling the machines and assembly lines having threaded hole in the base. Hole in the base is used for fixing the levelling mount with the supporting structure.
Application
Conveyors, Industrial; Equipment Etc.
| Model | Base Dia | Bolt Dia | Base Height | Bolt Height | Base Material |
|---|---|---|---|---|---|
| DLM-SM2-GR-62-M10x100 | 62mm | 10mm | 17mm | 100mm | Low Carbon Steel Sheet (IS 2062) |
| DLM-SM2-GR-62-M12x100 | 62mm | 12mm | 17mm | 100mm | Low Carbon Steel Sheet (IS 2062) |
| DLM-SM2-GR-62-M12x150 | 62mm | 12mm | 17mm | 150mm | Low Carbon Steel Sheet (IS 2062) |
| DLM-SM2-GR-62-M16x100 | 62mm | 16mm | 17mm | 100mm | Low Carbon Steel Sheet (IS 2062) |
| DLM-SM2-GR-62-M16x150 | 62mm | 16mm | 17mm | 150mm | Low Carbon Steel Sheet (IS 2062) |
