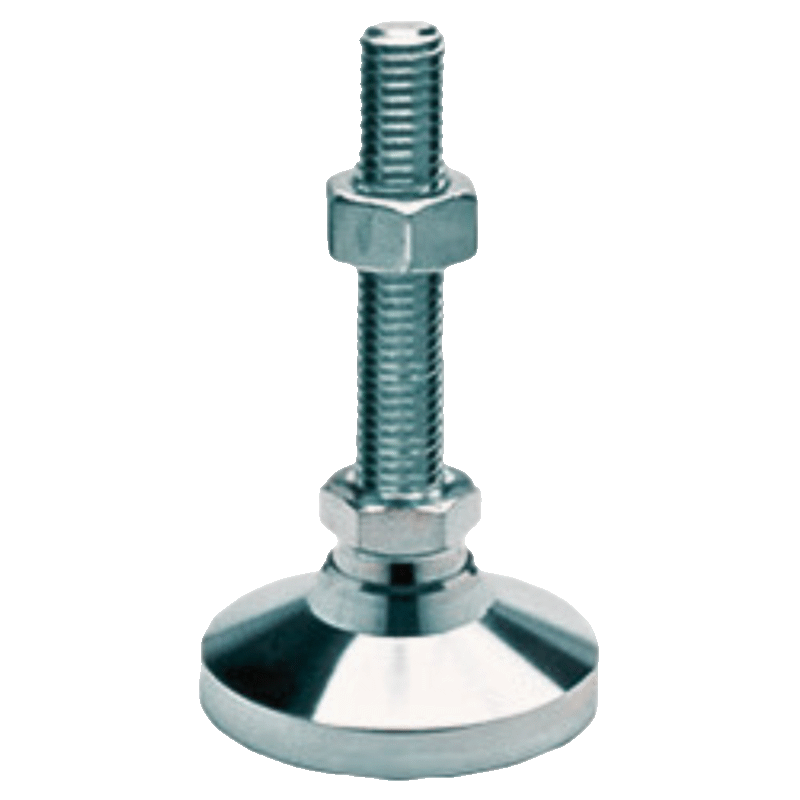

DLM-LC
These levelling mounts are made from low carbon steel material. These can be supplied with painted/powder coated surface. The coating on the bolt can be zinc plated or auto black.
DLM-LC
Product
DLM-LC
Description
These levelling mounts are made from low carbon steel material. These can be supplied with painted/powder coated surface. The coating on the bolt can be zinc plated or auto black.
Application
Pharmaceuticals, Food and Beverage, Laboratories Etc.
| Model | Base Dia | Bolt Dia | Base Material | Base Thickness | Bolt Length |
|---|---|---|---|---|---|
| DLM-LC1-62-M12x100 | 62 | 12 | Low carbon steel (IS 2062) | 12 | 100 |
| DLM-LC1-62-M16x100 | 62 | 16 | Low carbon steel (IS 2062) | 12 | 100 |
| DLM-LC2-78-M12x150 | 78 | 12 | Low carbon steel (IS 2062) | 12 | 150 |
| DLM-LC2-78-M16x100 | 78 | 16 | Low carbon steel (IS 2062) | 12 | 100 |
| DLM-LC2-78-M16x150 | 78 | 16 | Low carbon steel (IS 2062) | 12 | 150 |
| DLM-LC2-78-M20x150 | 78 | 20 | Low carbon steel (IS 2062) | 12 | 150 |
