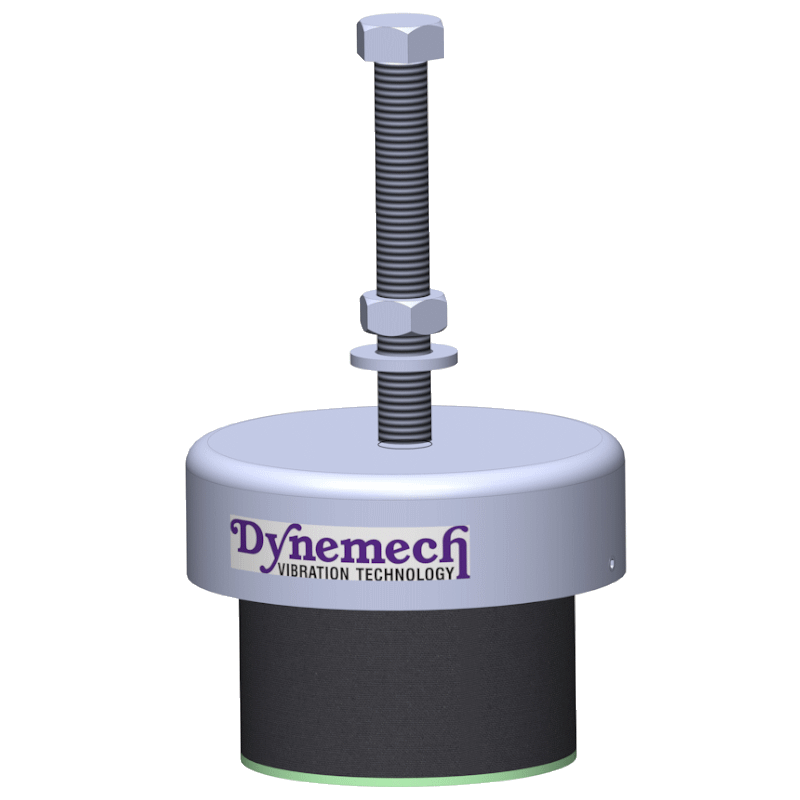

DLC9-hs3-M24x3.0x200-B-Z-GR
Dynemech DLC series mounts are simple and effective vibration dampers for machines with respective holes in the base. These mounts offer both low frequency attenuation and stable machine levelling.
Images
Technical Data
Specifications
| Specification | Value |
|---|---|
| Load Capacity (Kg/Pc) | 17870 |
| Diameter D (Mm) | 302 |
| Height H (Mm) | 119 |
| Bolt Size (Mm) | M24X200 |
| Adjustment Range (Mm) | +9 |
| Possible Bolts | M10/12/16/20/24 |
| Coeff Of Friction Against Concrete | 0.8 |
| Natural Frequency At Max Load (Hz) | 7 |
| Temperature Range (°C) | From -16 to 90 |
| Colour | Dark Grey/Green |
| Applications | Forging Hammers, Heavy Gen Sets, Heavy Industrial Machines, Test Rigs, Heavy Presses etc. |
