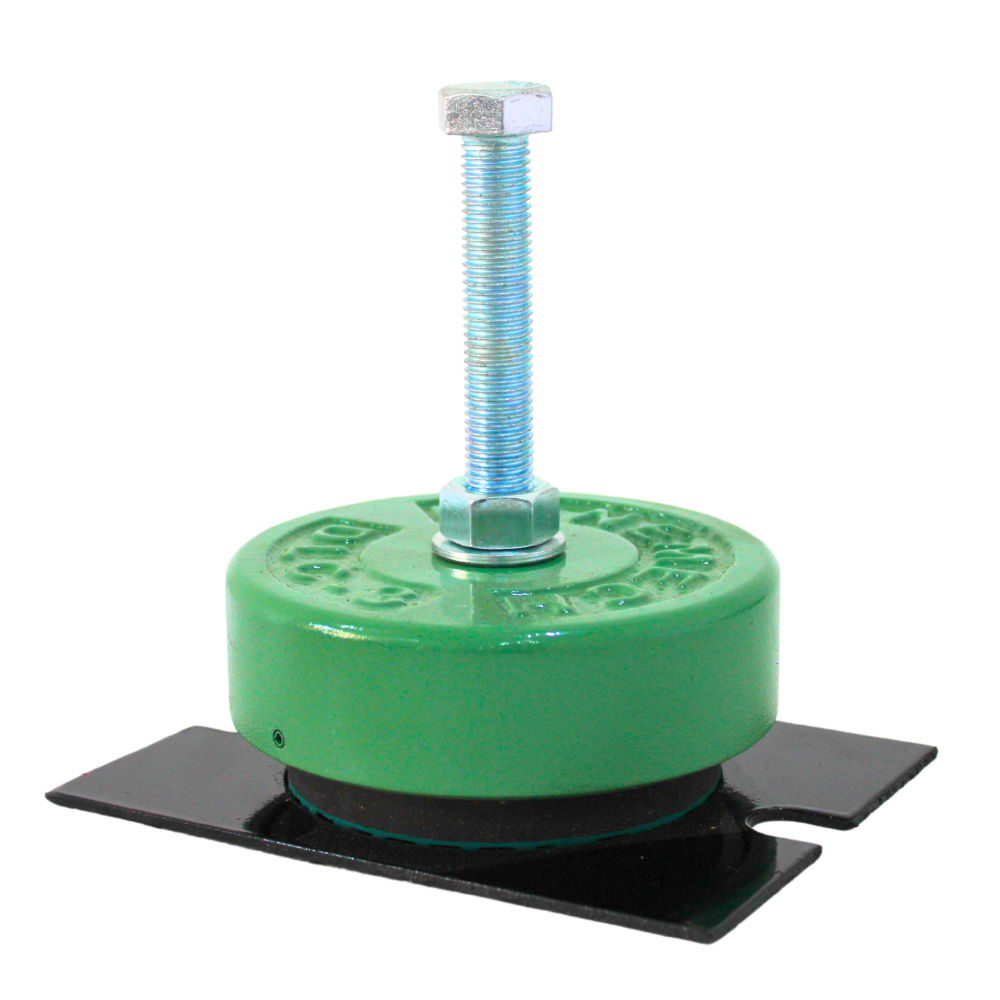

DLC-SF
Dynemech DLC-SF series mounts are simple and effective vibration dampers for machines with respective holes in the base. With additional base plate with holes. These mounts offer both low frequency attenuation and stable machine levelling.
DLC-SF
Product
DLC-SF
Description
Dynemech DLC-SF series mounts are simple and effective vibration dampers for machines with respective holes in the base. With additional base plate with holes. These mounts offer both low frequency attenuation and stable machine levelling.
Application
Cutting machines, Robotic Arms, Excavators Etc
| Model | Load Capacity (Kg/Pc) | Diameter D (Mm) | Height H (Mm) | Bolt Size (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Length L (Mm) | Width B (Mm) | Cc (Mm) | Possible Bolts |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DLC1-U-SF | 150 | 65 | 33|33 | M12x1.75x100mm | 8 | M10/M12/M16/M20 | 0.9|0.9 | 18|18 | 115|115 | 65|65 | 95 | — |
| DLC2-U-SF | 350 | 98 | 40 | M12x1.75x100mm | 8 | — | 0.9 | 18 | 150 | 98 | 130 | M10/M12/M16/M20/M24 |
| DLC3-U-SF | 600 | 125 | 47 | M16x2.0x100mm | 8 | — | 0.9 | 18 | 175 | 125 | 155 | M10/12/16/20/24 |
| DLC4-U-SF | 900 | 150 | 49 | M16x2.0x100mm | 8 | — | 0.9 | 18 | 200 | 150 | 180 | M10/12/16/20/24 |
