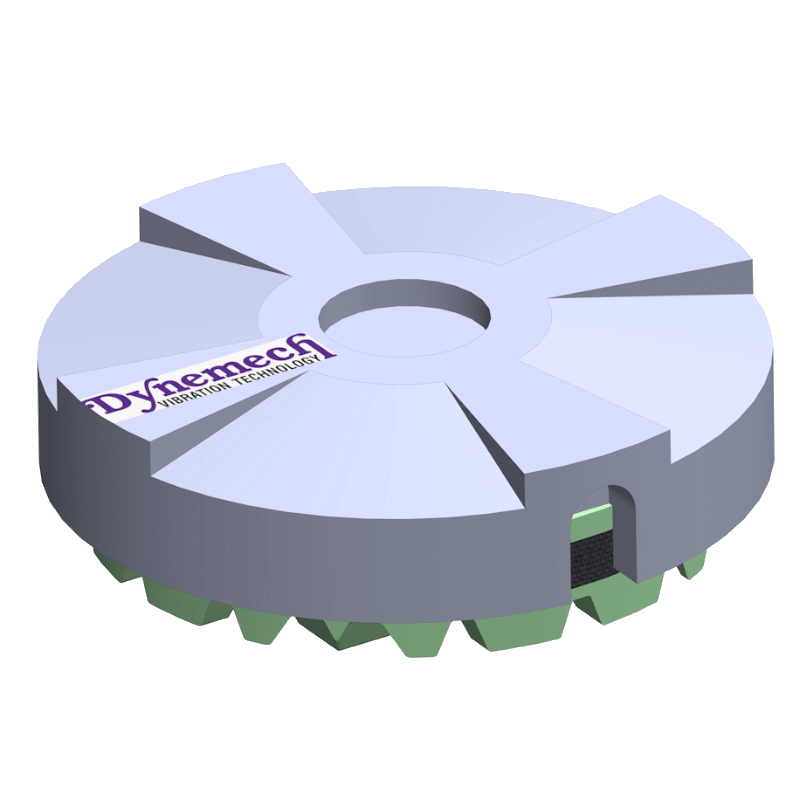

DL-p1
Dynemech DL series is used for light to medium weight machines suited to levelling screw support or having tapped hole in the base.achine levelling.
Application
Tuned to low natural frequency; suitable for passive vibration control of Measuring & Testing Machines, Grinders etc.
9 Models
| Model | Load Capacity (Kg/Pc) | Diameter D (Mm) | Height H (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) |
|---|---|---|---|---|---|---|
| DL1-p1-55-FG | 75 | 55 | 21 | 0.8 | 7 | From -16 to 90 |
| DL2-p1-85-FG | 175 | 85 | 28 | 0.8 | 7 | From -16 to 90 |
| DL3-p1-112-FG | 300 | 112 | 28 | 0.8 | 7 | From -16 to 90 |
| DL4-p1-135-FG | 500 | 135 | 30 | 0.8 | 7 | From -16 to 90 |
| DL5-p1-160-FG | 700 | 160 | 30 | 0.8 | 7 | From -16 to 90 |
| DL6-p1-185-FG | 950 | 185 | 34 | 0.8 | 7 | From -16 to 90 |
| DL7-p1-215-FG | 1250 | 215 | 35 | 0.8 | 7 | From -16 to 90 |
| DL8-p1-249-FG | 1500 | 249 | 44 | 0.8 | 7 | From -16 to 90 |
| DL9-p1-276-FG | 1900 | 276 | 43 | 0.8 | 7 | From -16 to 90 |
