DL-i

Series:

DL-i

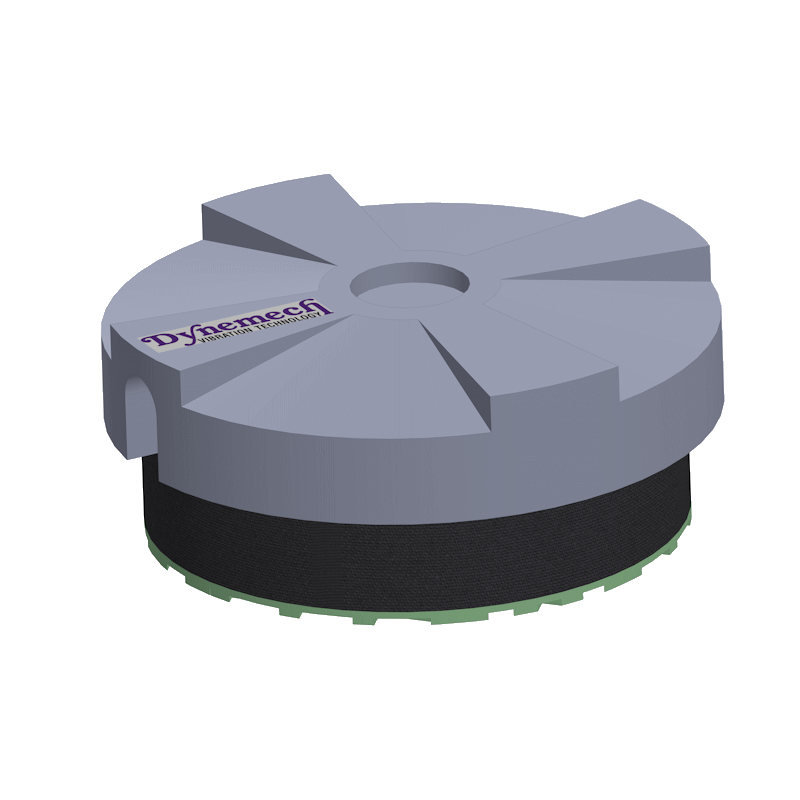

Dynemech DL series is used for light to medium weight machines suited to levelling screw support or having tapped hole in the base.achine levelling.

Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.

Code	Load Capacity Kg/pc	Diameter (D) mm	Height (H) mm
DL1-I-55-FG	250	55	31
DL2-I-85-FG	575	85	38
DL3-I-112-FG	1000	112	38
DL4-I-135-FG	1600	135	40
DL5-I-160-FG	2300	160	40
DL6-I-185-FG	3100	185	44
DL7-I-215-FG	4000	215	45
DL8-I-249-FG	5200	249	54
DL9-I-276-FG	6500	276	53
