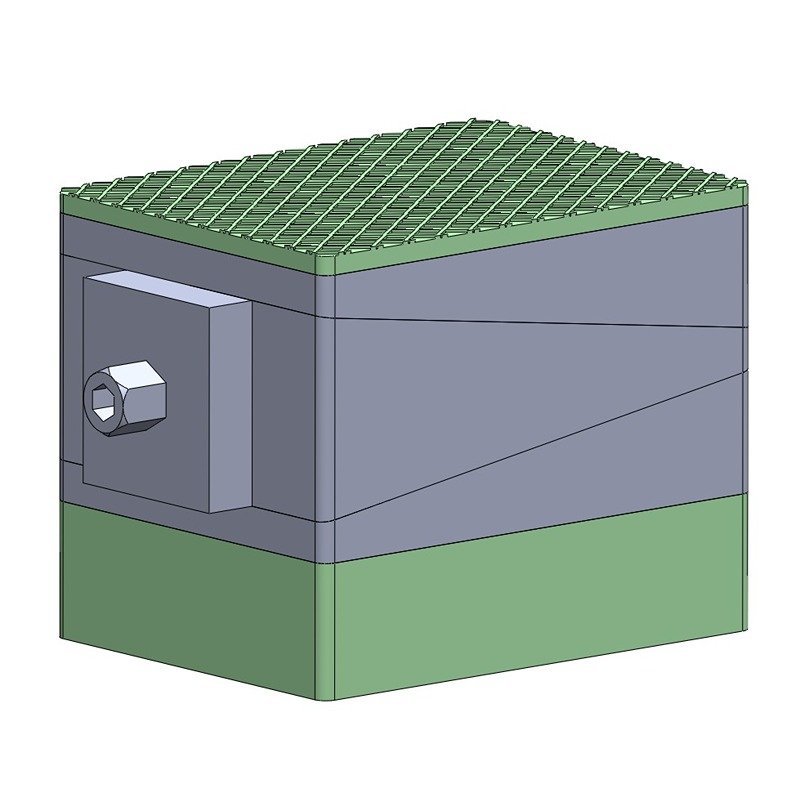

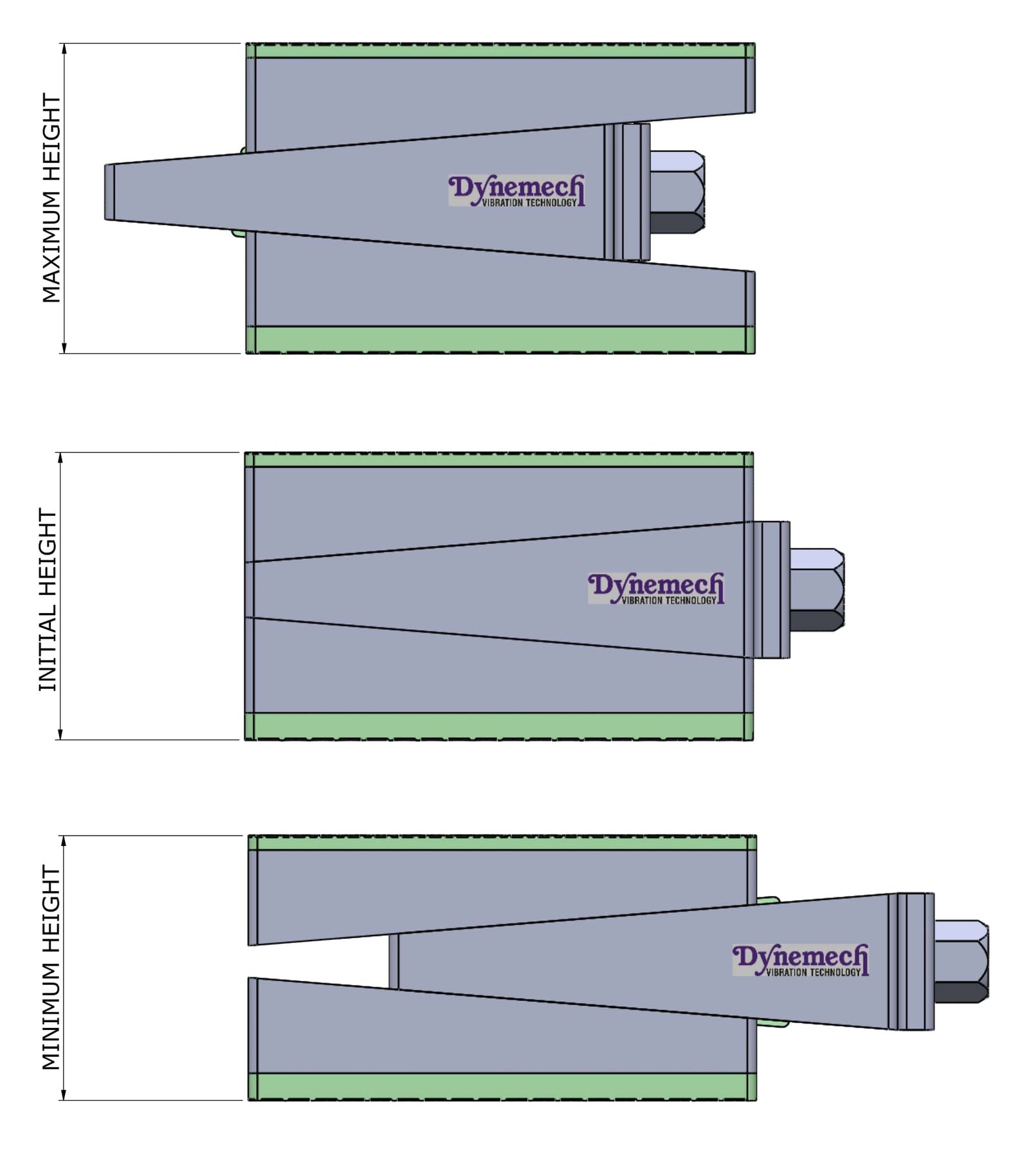

Dynemech Wedge Mounts, Series DFH are sturdy in construction and installed as free standing. They are designed for very heavy and long bedded machines. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces.
DFH-hs4
Description
Catalogue
Series:
DFH-hs4
Applications:
Forging Hammers, Heavy Gen Sets, Heavy Industrial Machines, Test Rigs, Heavy Presses, etc.
| Model | Load Capacity(Kg/pc) | Length (L) mm | Width (B) mm | Height (H) (mm) |
|---|---|---|---|---|
| DFH1-hs4-a1-FG-DG | 3000 | 200 | 125 | 125 |
| DFH2-hs4-a1-FG-DG | 3600 | 200 | 150 | 157 |
| DFH3-hs4-a1-FG-DG | 5700 | 280 | 170 | 187 |
