DIT-E-HC-03-1008090
Model

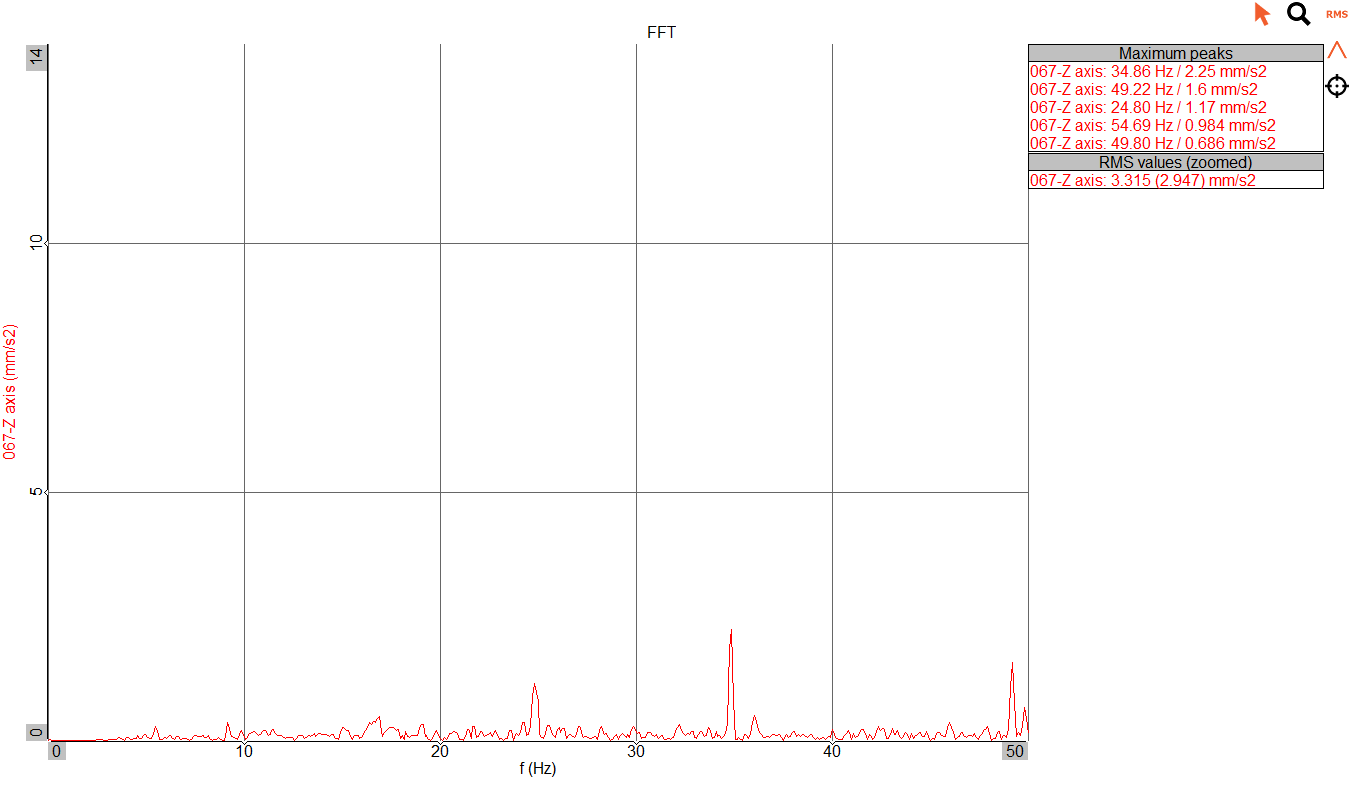

Graph

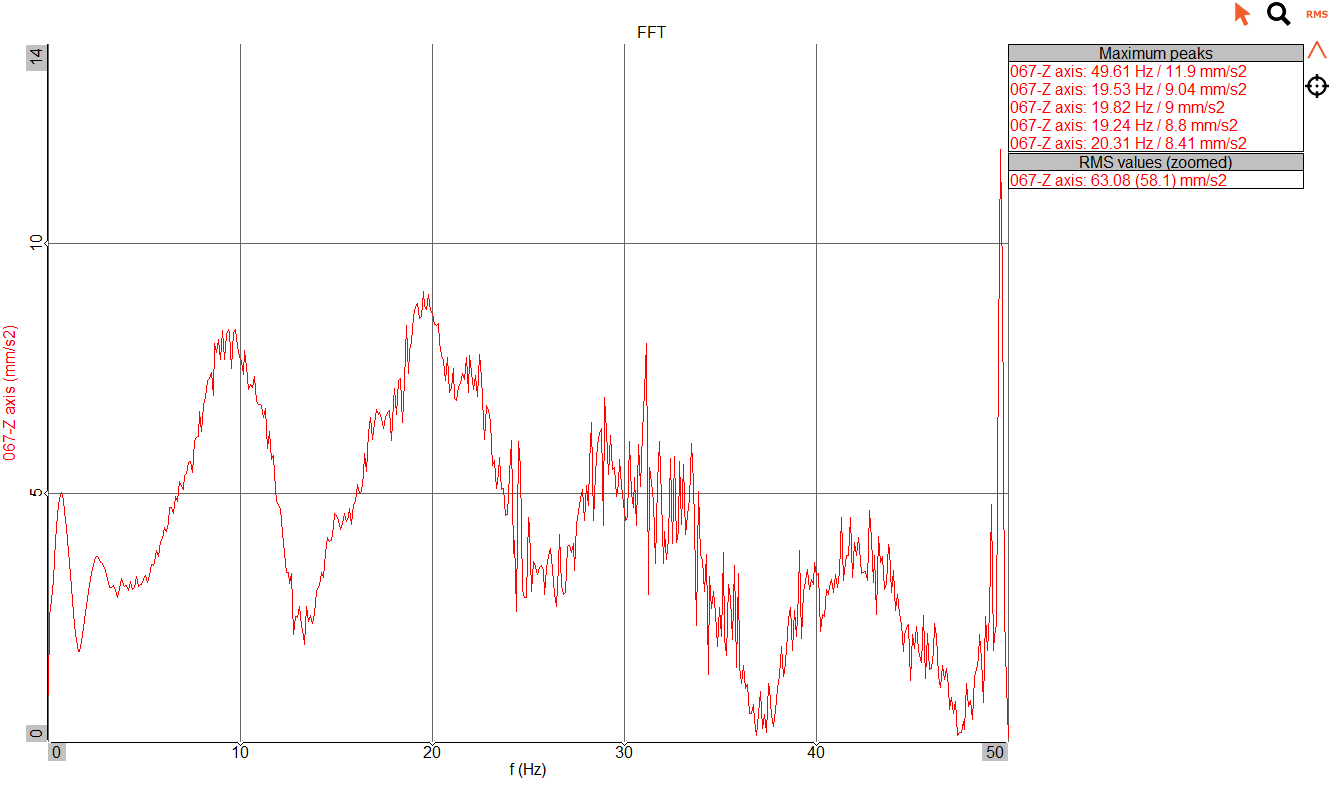

Graph
Description
Dynemech Anti Vibration Tables - Series DIT-E-HC are ideal for Testing / Quality Laboratories with having optical instruments. The Vibrations are isolated using Double-Layered Dp Elastomeric Sheets. These Anti-Vibration Tables have a Honeycomb table top. We can select up-to five layers of insulation plate depending upon the vibrations present in the Testing Laboratory.
Application:
Used in optical industries, for mounting optical assemblies
Technical Data
Model Catologue
Load (Kg)
upto 600
Length (mm)
1000
Width (mm)
800
Height (mm)
900
Honeycomb Table Top Thickness(Mm)
100
Other Technical Specification
Table-Top Honeycomb
Top Plate Skin
5mm +/-1 mm thickness, 410 series ferromagnetic SS plate, smooth sanded finish
Side Walls
2.0 mm thickness carbon steel plate with damped wood composite. Vinyl covered
Bottom Skin
4.5 mm thickness carbon steel plate epoxy painted finish.
Core
Plated steel honeycomb(0.25 mm foil, 2.9cm2 cell size
Surface flatness
+/- 0.1 mm over 600 mm square / as per standard.
Mounting Holes Matric
M6 holes on 25mm grid on table top and <=37.5 mm from borders/ as per standard.
Hole/Core Sealing
Easy clean cylindrical cup (21mm deep)
Damping
Broadband Standard Damping
Elastomeric Leg Specification
Levelling
with the help of bottom DLM mount
Height Adjustment
8mm
Natural frequency at Max. load
7-8 Hz
Vibration Isolation Efficiency
65-70 %
