DIT-AS-CM-01
Model
Graph
Graph
Description

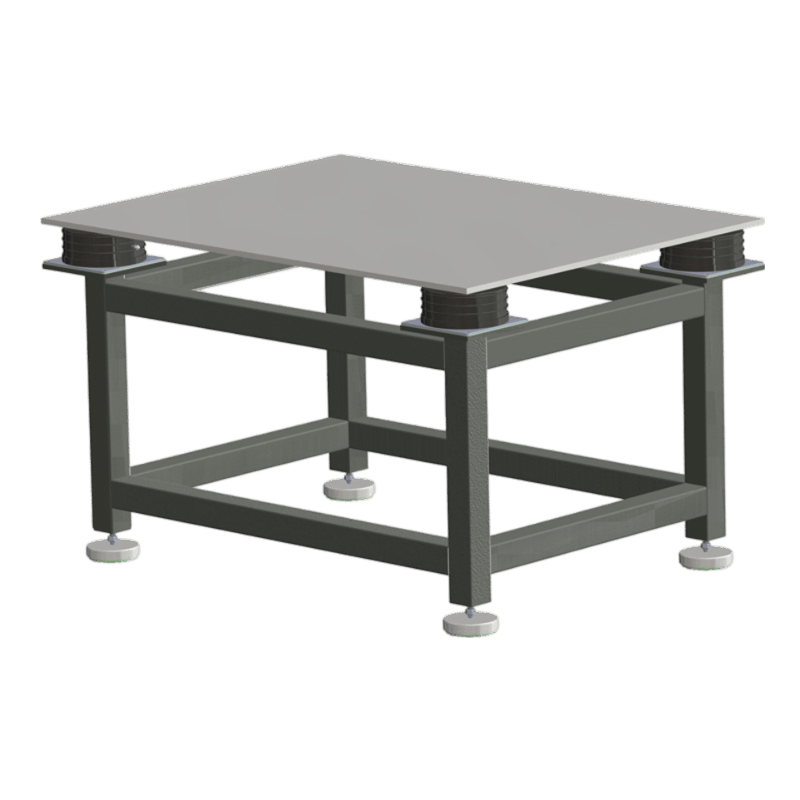

Dynemech Anti Vibration Tables - Series DIT-AS-CM are ideal for isolation of LOW-FREQUENCY vibration due to working machines like presses, hammers, VMCs, nearby trafic, railway line or construction work etc. The passive vibrations are absorbed by the pneumatic mounts making the surface plate float on compressed air. These Anti-Vibration Tables have a Corian Marble Plate. These Vibration Tables provide economical solution where low frequency vibrations need to be removed. Continuous air supply is required to compensate the pressure drop.
Application:
The Vibration Isolated Table (VIT) finds usage in critical areas where reading accuracy of instruments like CMM, Spectroscopes, Balances, Galvanometers, Electronic Microscopes and Atomic Absorption Spectrophotometers, is affected by Vibrations
Technical Data
Model Catologue
Load (Kg)
upto 400
Length (mm)
500
Width (mm)
500
Corian Marble Table Top Thickness(Mm)
12
Other Technical Specification
Elastomeric Leg Specification
Levelling
with the help of bottom DLM mounts
Height Adjustment
8mm
Vibration Isolation Efficiency
90-95%
