Vibration Mounts India

Series:

DLMs-u

Description

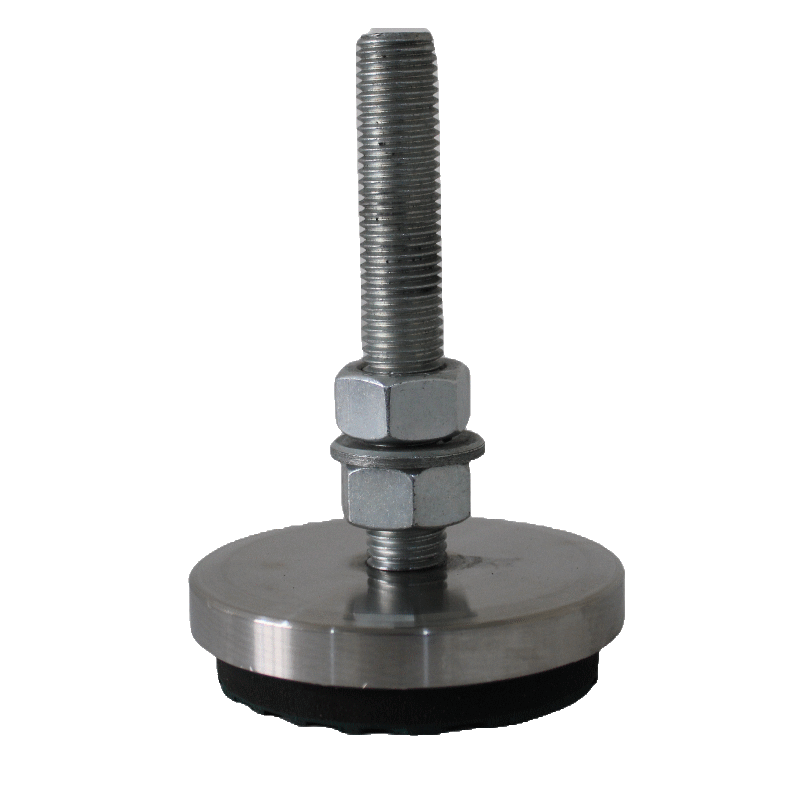

Dynemech DLMS series mounts, developed in stainless steel respectively are simple and effective vibration dampers for machines with respective holes in the base. these mounts offer low frequency attentuation, stable machine levelling and vibration reduction. the flexible levelling screw accomodates uneven/sloped surfaces environmental reasons are required like in pharmaceutical, food and beverages processing and packaging units, medical equipments manufacturing and chemical processing industries.

Application:

Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Printing and Textile Machines (for machines having high axial forces)

Catalogue

Code Load Capacity Kg/pc Diameter (D) mm Height (H) mm
DLMS1-u-55-SS-M16x2.0x100 150 55 21
DLMS2-u-85-SS-M16x2.0x100 350 85 28
DLMS3-u-112-SS-M16x2.0x150 600 112 28
DLMS4-u-135-SS-M16x2.0x150 900 135 30
DLMS5-u-160-SS-M16x2.0x150 1400 160 30
DLMS6-u-185-SS-M16x2.0x150 1900 185 34
DLMS7-u-215-SS-M16x2.0x150 2500 215 35
DLMS8-u-249-SS-M20x2.5x150 3500 249 44
DLMS9-u-276-SS-M20x2.5x150 4200 276 43
