Vibration Mounts India

Series:

DLMs-s1

Description

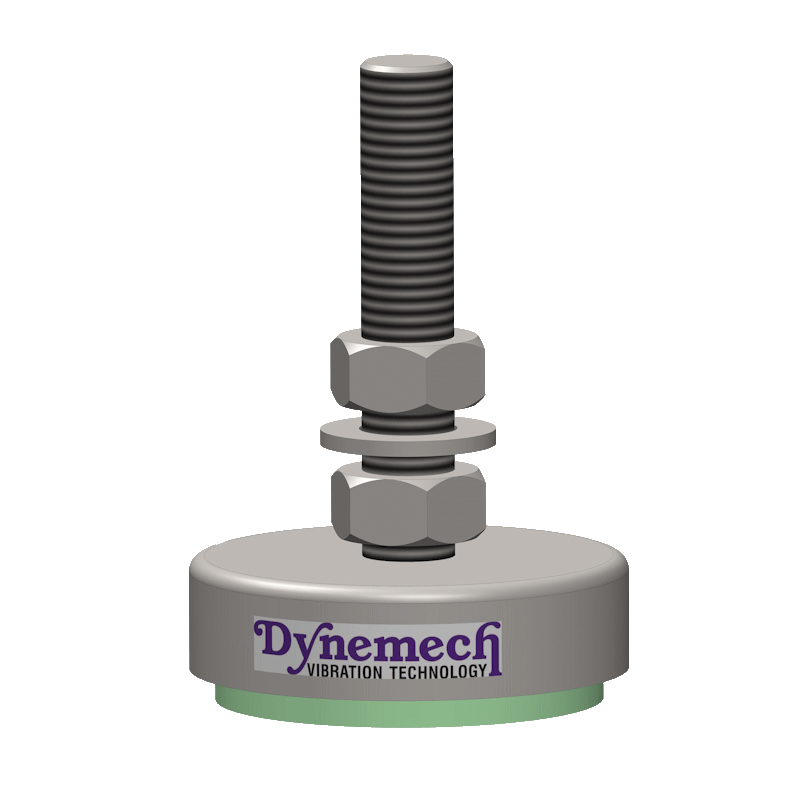

Dynemech DLMS series mounts, developed in stainless steel respectively are simple and effective vibration dampers for machines with respective holes in the base. these mounts offer low frequency attentuation, stable machine levelling and vibration reduction. the flexible levelling screw accomodates uneven/sloped surfaces environmental reasons are required like in pharmaceutical, food and beverages processing and packaging units, medical equipments manufacturing and chemical processing industries.

Application:

Light Weight Presses, Tool Room Machines, Compressors etc. on ground floors and upper floors.

Catalogue

Code Load Capacity Kg/pc Diameter (D) mm Height (H) mm
DLMS1-s1-55-SS-M16x2.0x100 110 55 26
DLMS2-s1-85-SS-M16x2.0x100 220 85 33
DLMS3-s1-112-SS-M16x2.0x150 380 112 33
DLMS4-s1-135-SS-M16x2.0x150 620 135 35
DLMS5-s1-160-SS-M16x2.0x150 950 160 35
DLMS6-s1-185-SS-M16x2.0x150 1180 185 39
DLMS7-s1-215-SS-M16x2.0x150 1620 215 40
DLMS8-s1-249-SS-M20x2.5x15 2250 249 49
DLMS9-s1-276-SS-M20x2.5x150 2620 276 48
