Series:

DLMs-p3

Description

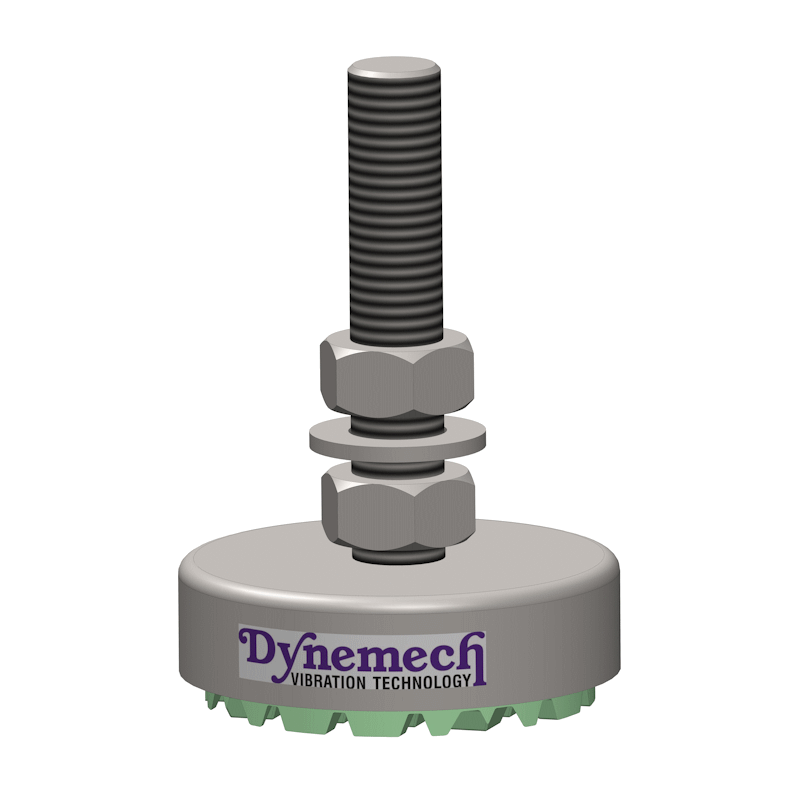

Dynemech DLMS series mounts, developed in stainless steel respectively are simple and effective vibration dampers for machines with respective holes in the base. these mounts offer low frequency attentuation, stable machine levelling and vibration reduction. the flexible levelling screw accomodates uneven/sloped surfaces environmental reasons are required like in pharmaceutical, food and beverages processing and packaging units, medical equipments manufacturing and chemical processing industries.

Application:

Tuned to low natural frequency; suitable for both active & passive vibration isolation of metrology and production machines.

Catalogue

Code Load Capacity Kg/pc Diameter (D) mm Height (H) mm
DLMS1-p3-55-SS-M16x2.0x100 110 55 30
DLMS2-p3-85-SS-M16x2.0x100 270 85 37
DLMS3-p3-112-SS-M16x2.0x150 460 112 37
DLMS4-p3-135-SS-M16x2.0x150 740 135 39
DLMS5-p3-160-SS-M16x2.0x150 1140 160 39
DLMS6-p3-185-SS-M16x2.0x150 1410 185 43
DLMS7-p3-215-SS-M16x2.0x150 1950 215 44
DLMS8-p3-249-SS-M20x2.5x150 2390 249 53
DLMS9-p3-276-SS-M20x2.5x150 3140 276 52
