Vibration Mounts India

Series:

DLMs-hs3

Description

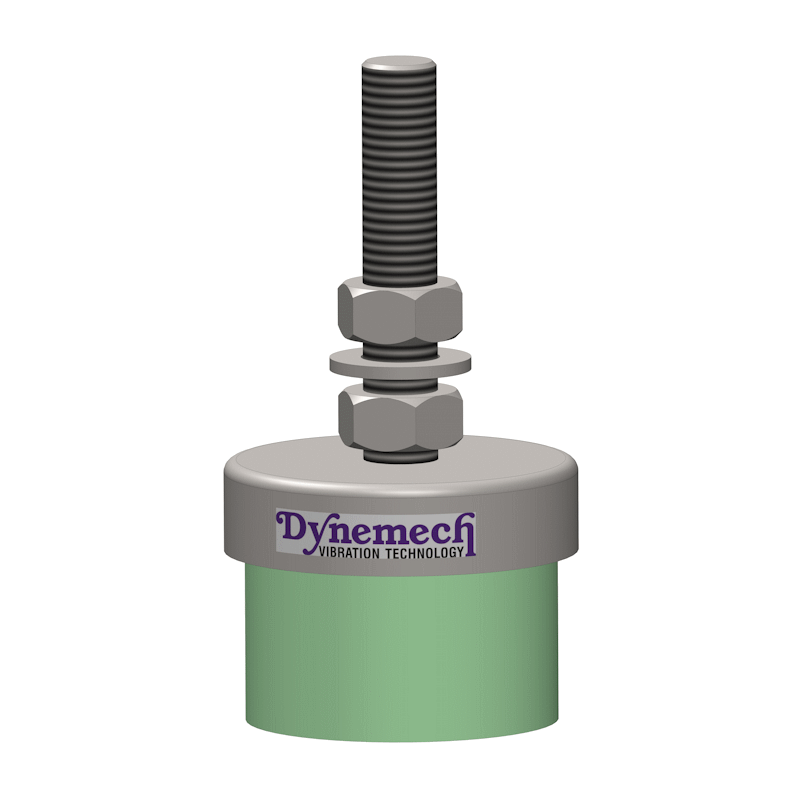

Dynemech DLMS series mounts, developed in stainless steel respectively are simple and effective vibration dampers for machines with respective holes in the base. these mounts offer low frequency attentuation, stable machine levelling and vibration reduction. the flexible levelling screw accomodates uneven/sloped surfaces environmental reasons are required like in pharmaceutical, food and beverages processing and packaging units, medical equipments manufacturing and chemical processing industries.

Application:

Forging Hammers, Heavy Gen Sets, Heavy Industrial Machines, Test Rigs, Heavy Presses etc.

Catalogue

Code Load Capacity Kg/pc Diameter (D) mm Height (H) mm
DLMS1-hs3-55-SS-M16x2.0x100 570 55 56
DLMS2-hs3-85-SS-M16x2.0x100 1240 85 63
DLMS3-hs3-112-SS-M16x2.0x150 2200 112 63
DLMS4-hs3-135-SS-M16x2.0x150 3440 135 65
DLMS5-hs3-160-SS-M16x2.0x150 5280 160 65
DLMS6-hs3-185-SS-M16x2.0x150 6580 185 69
DLMS7-hs3-215-SS-M16x2.0x150 9060 215 70
DLMS8-hs3-249-SS-M20x2.5x150 11130 249 79
DLMS9-hs3-276-SS-M20x2.5x150 14640 276 78
