Vibration Mounts India

Series:

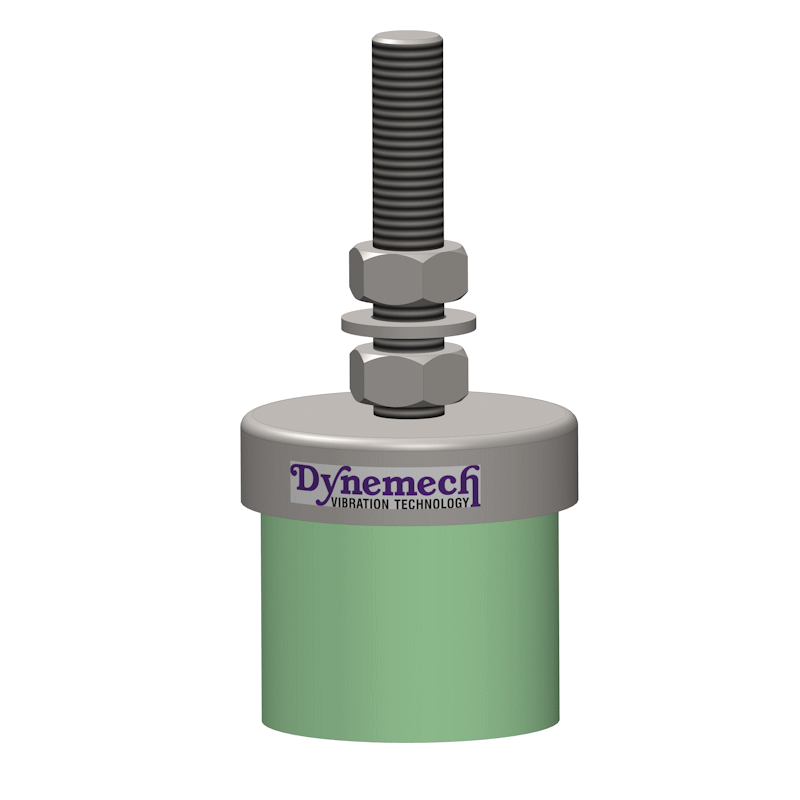

DLMs-hs2

Description

Dynemech DLMS series mounts, developed in stainless steel respectively are simple and effective vibration dampers for machines with respective holes in the base. these mounts offer low frequency attentuation, stable machine levelling and vibration reduction. the flexible levelling screw accomodates uneven/sloped surfaces environmental reasons are required like in pharmaceutical, food and beverages processing and packaging units, medical equipments manufacturing and chemical processing industries.

Application:

Forging Hammers, Heavy Gen Sets, Heavy Industrial Machines, Test Rigs, Heavy Presses etc.

Catalogue

Code Load Capacity Kg/pc Diameter (D) mm Height (H) mm
DLMS1-hs2-55-SS-M16x2.0x100 160 55 71
DLMS2-hs2-85-SS-M16x2.0x100 350 85 78
DLMS3-hs2-112-SS-M16x2.0x150 630 112 78
DLMS4-hs2-135-SS-M16x2.0x150 780 135 80
DLMS5-hs2-160-SS-M16x2.0x150 1510 160 80
DLMS6-hs2-185-SS-M16x2.0x150 1880 185 84
DLMS7-hs2-215-SS-M16x2.0x150 2590 215 85
DLMS8-hs2-249-SS-M20x2.5x150 3180 249 94
DLMS9-hs2-276-SS-M20x2.5x150 4180 276 93
