Vibration Mounts India

Series:

DLK2-LP

Description

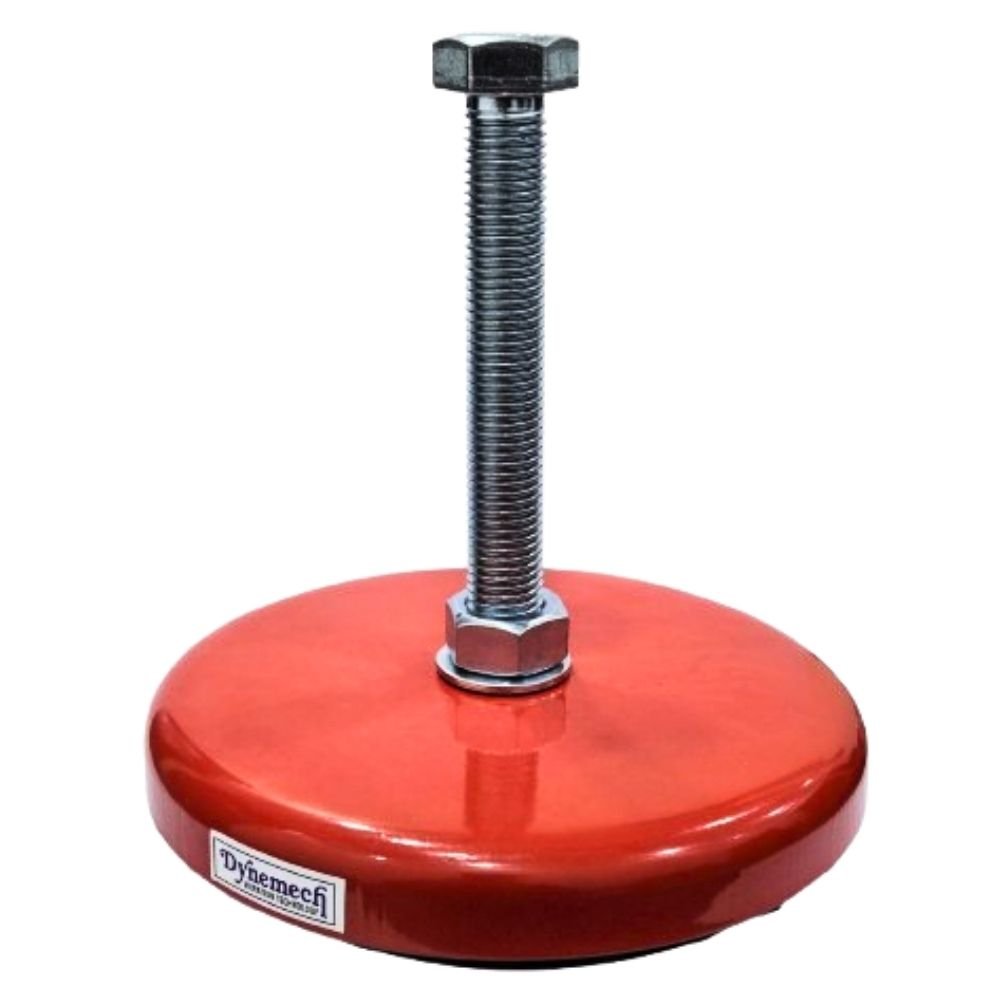

Dynemech Screw Support Mounts series DLK-LP are simple and effective vibration dampers for machines with respective holes in the base. These mounts offer both low frequency attenuation and stable machine levelling. The DLK-LP Series has a lower height for fast and easy installation of machines. DLK-LP Series anti vibrations mounts have low carbon steel body and are used for machines having mounting holes in the base. This levelling mount has a cover plate and dimpled bottom plate holding the insulation plate. Levelling is done by tightening the bolt which lifts the cover plate with the machine base.

Application:

Textile Machines, CNC Machines, Power Presses, Plastic Injection Moulding Machines, Pressure Die Casting Machine, Printing Machines, Compressors, Grinding Machines and All Types of Heavy Industrial Applications.

Catalogue

Code Load Capacity Kg/pc Diameter (D) mm Height (H) mm
DLK2-LP-a-135-M16x2.0x100-GR 1200 135 34.5
DLK2-LP-b-135-M16x2.0x100-GR 1900 135 34.5
DLK2-LP-c-135-M16x2.0x100-GR 2600 135 34.5
