DTO1-hs4-26T-FG-GR

Model
Adjustment Configuration
Dimensional Details

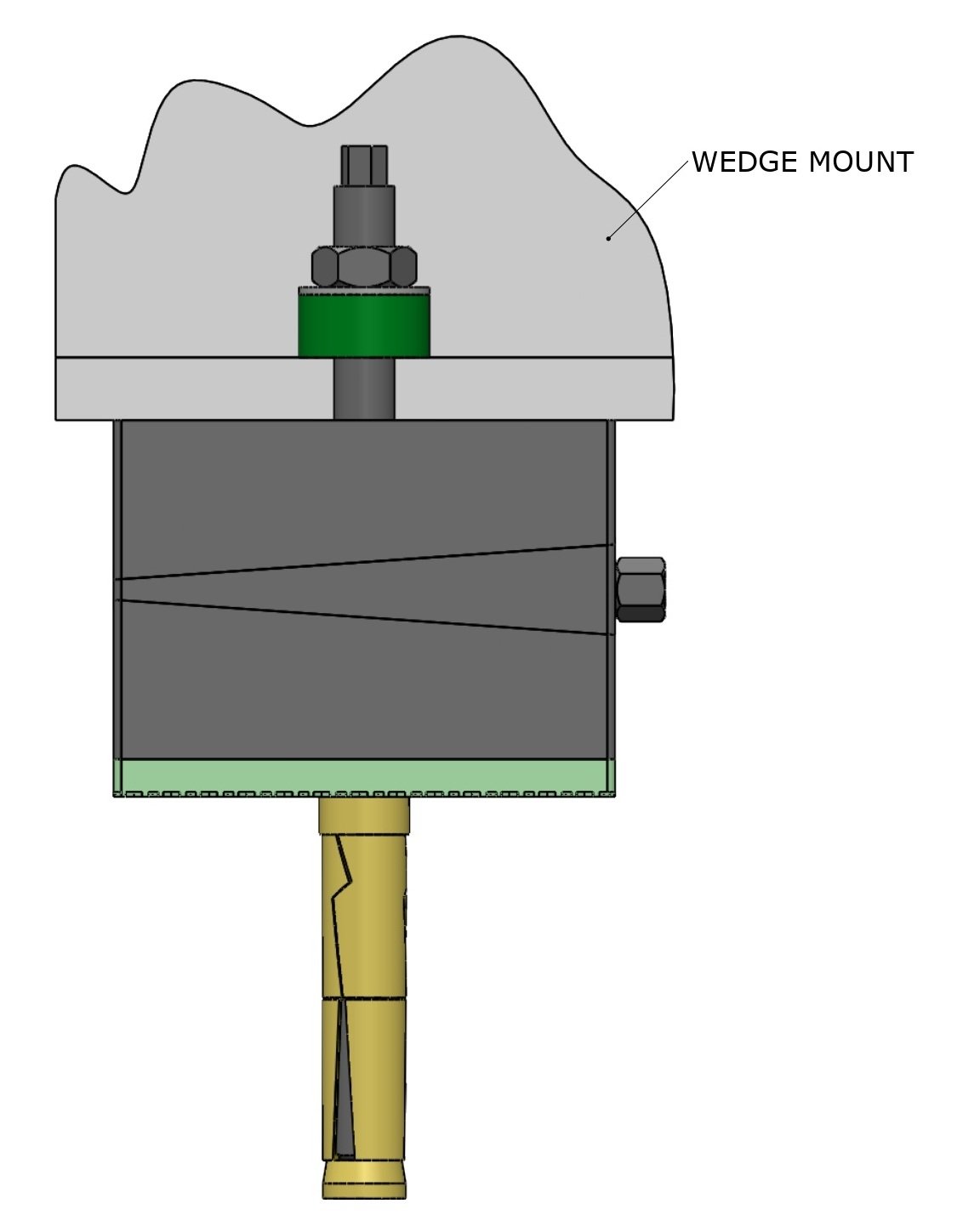

Installation 01
Installation 02

Description

Dynemech Wedge mounts, Series DTO mounts is designed for machines which are top heavy or have eccentric motion or machines which must be anchored to the ground. Boring machine, Drilling and milling machines, machining centres, special purpose machines, long lathes, long planers, power presses etc.

Application:

Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses, crushers etc.

Technical Data

Model Catologue
Load Capacity Kg/pc
1590
Length (L) mm
115
Width (B) mm
115
Height (H) at mean position (mm)
94
Adjustment Range (mm)
+4/-4
Bottom pad Type
Dhs4
Bottom pad Thickness (mm)
50
SW1 (mm)
19
SW2 (mm)
10
Coeff. of Friction against Concrete
0.8
Natural Frequency at Max. Load (Hz)
5
Temperature Range (°C)
From -16 to 90
Color
Dark Grey/Green
BORE* Ø(mm) G"
26
