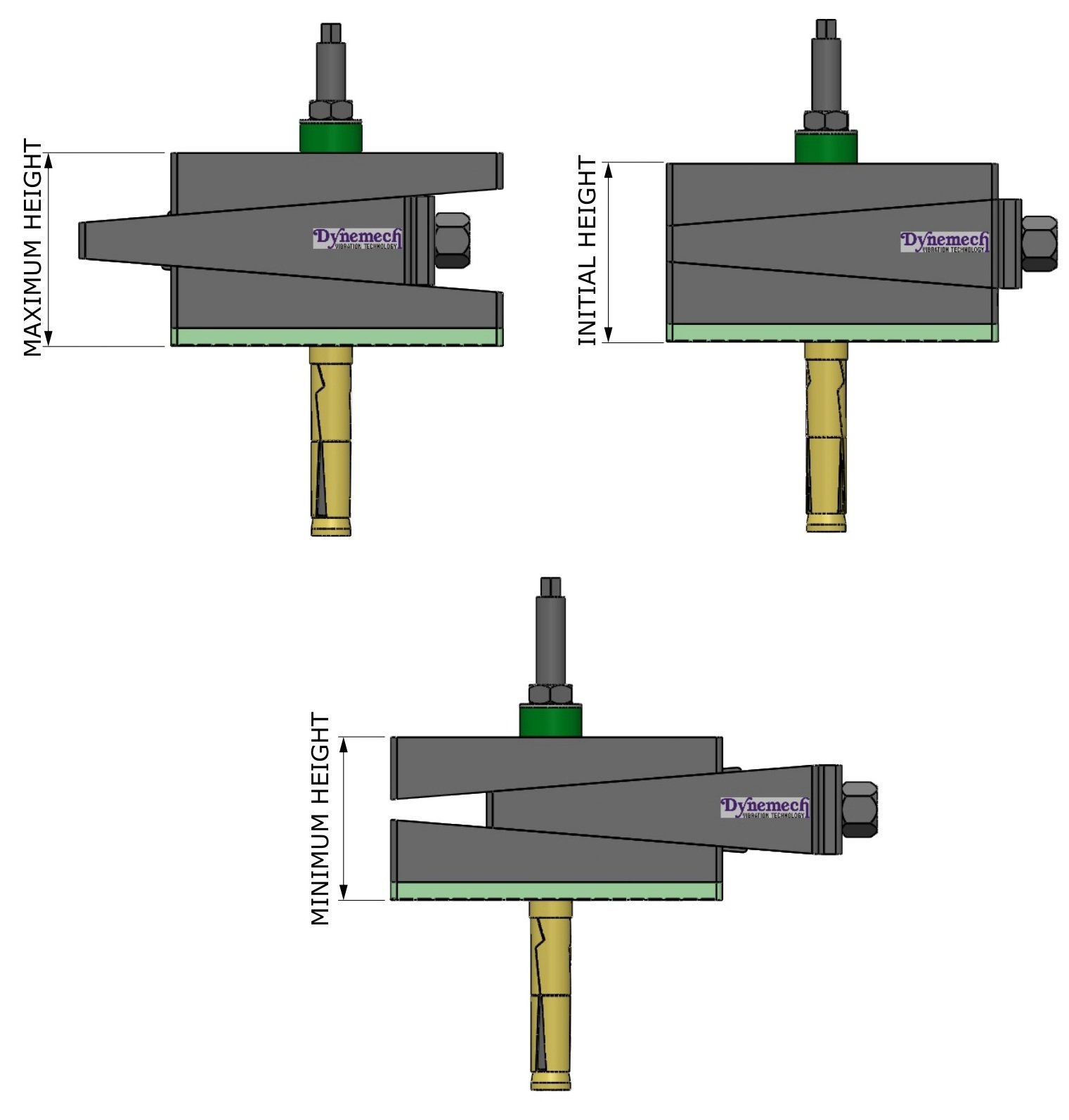

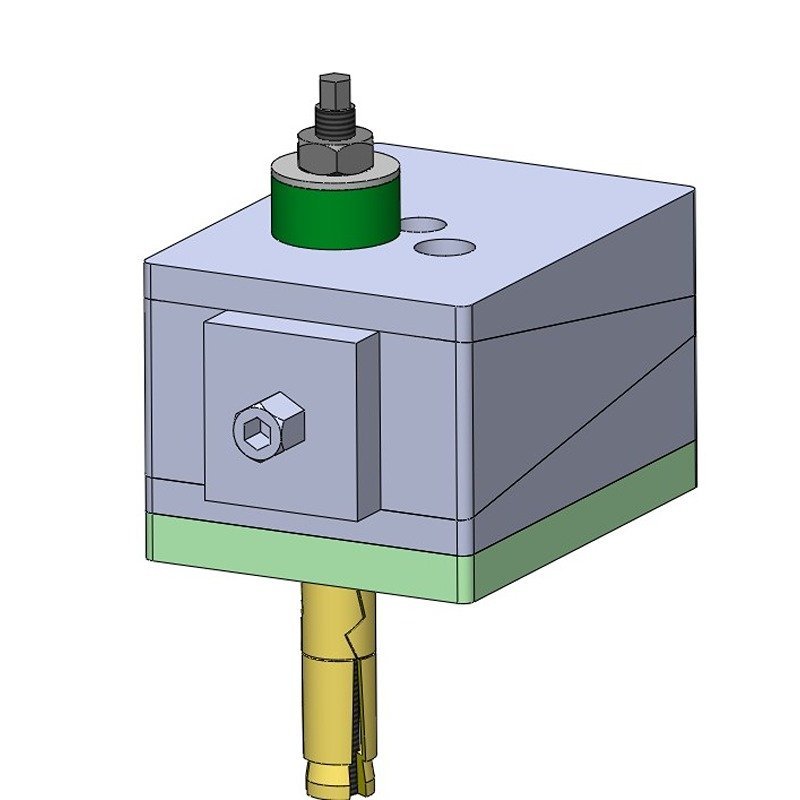

Dynemech Wedge mounts, Series DTH mounts are sturdy in construction. Designed for machines with high axial dynamic forces and must be anchored to the ground. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces.
DTH-s1
Description
Catalogue
Series:
DTH-s1
Applications:
Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
| Model | Load Capacity(Kg/pc) | Length (L) mm | Width (B) mm |
|---|---|---|---|
| DTH1-s1-25T-FG-DG | 1250 | 200 | 125 |
| DTH2-s1-25T-FG-DG | 1500 | 200 | 150 |
| DTH3-s1-28T-FG-DG | 2380 | 280 | 170 |
