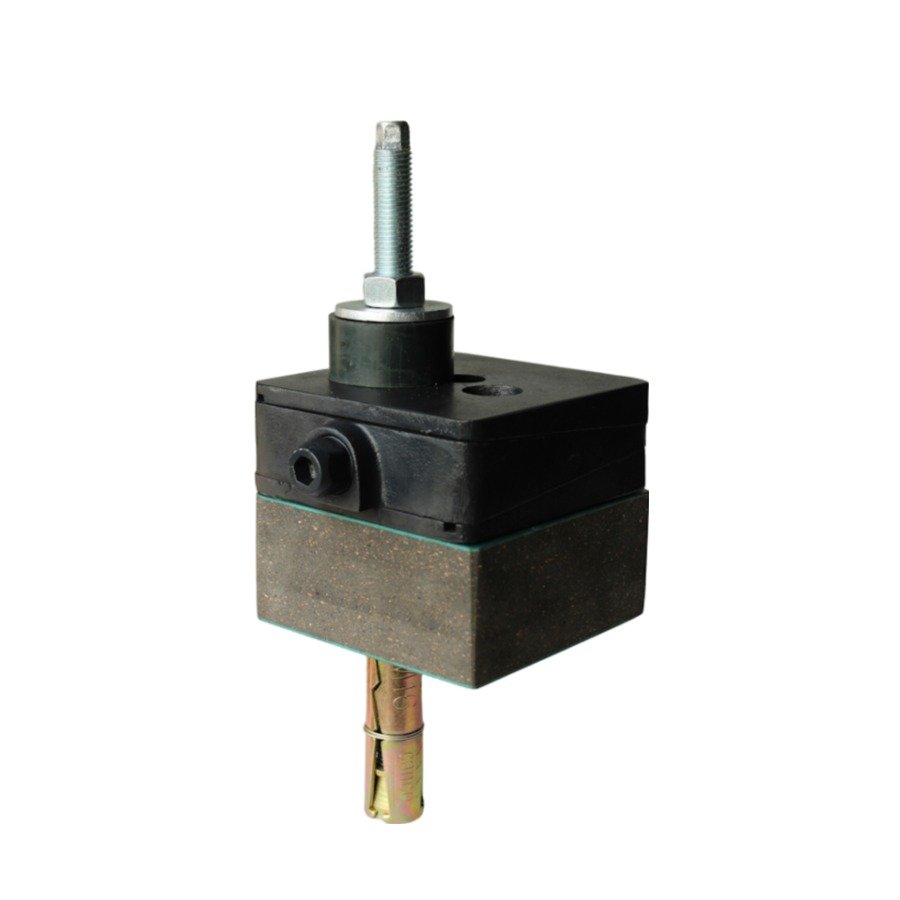

Dynemech Wedge mounts, Series DT are designed for machine tools that are top heavy or have eccentric motion or for machines which must be anchored to the groundreqquire precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
DT-hs2
Description
Catalogue
Series:
DT-hs2
Applications:
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses, crushers etc.
| Model | Load Capacity(Kg/pc) | Length (L) mm | Width (B) mm | Height (H) (mm) |
|---|---|---|---|---|
| DT0-hs2-18T-FG-DG/GR | 800 | 100 | 100 | 103 |
| DT1-hs2-22T-FG-DG/GR | 1060 | 115 | 115 | 109 |
| DT2-hs2-22T-FG-DG/GR | 1800 | 150 | 150 | 115 |
| DT3-hs2-28T-FG-DG/GR | 3200 | 200 | 200 | 115 |
| DT4-hs2-28T-FG-DG/GR | 4000 | 200 | 250 | 135 |
| DT5-hs2-28T-FG-DG/GR | 6400 | 250 | 320 | 140 |
| DT6-hs2-30T-FG-DG/GR | 9600 | 300 | 400 | 140 |
| DT7-hs2-32T-FG-DG/GR | 16000 | 400 | 500 | 145 |
