Dynemech Wedge Mounts, Series DFH are sturdy in construction and installed as free standing. They are designed for very heavy and long bedded machines. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces.
DFH3-u-10-a2-FG-DG
Model

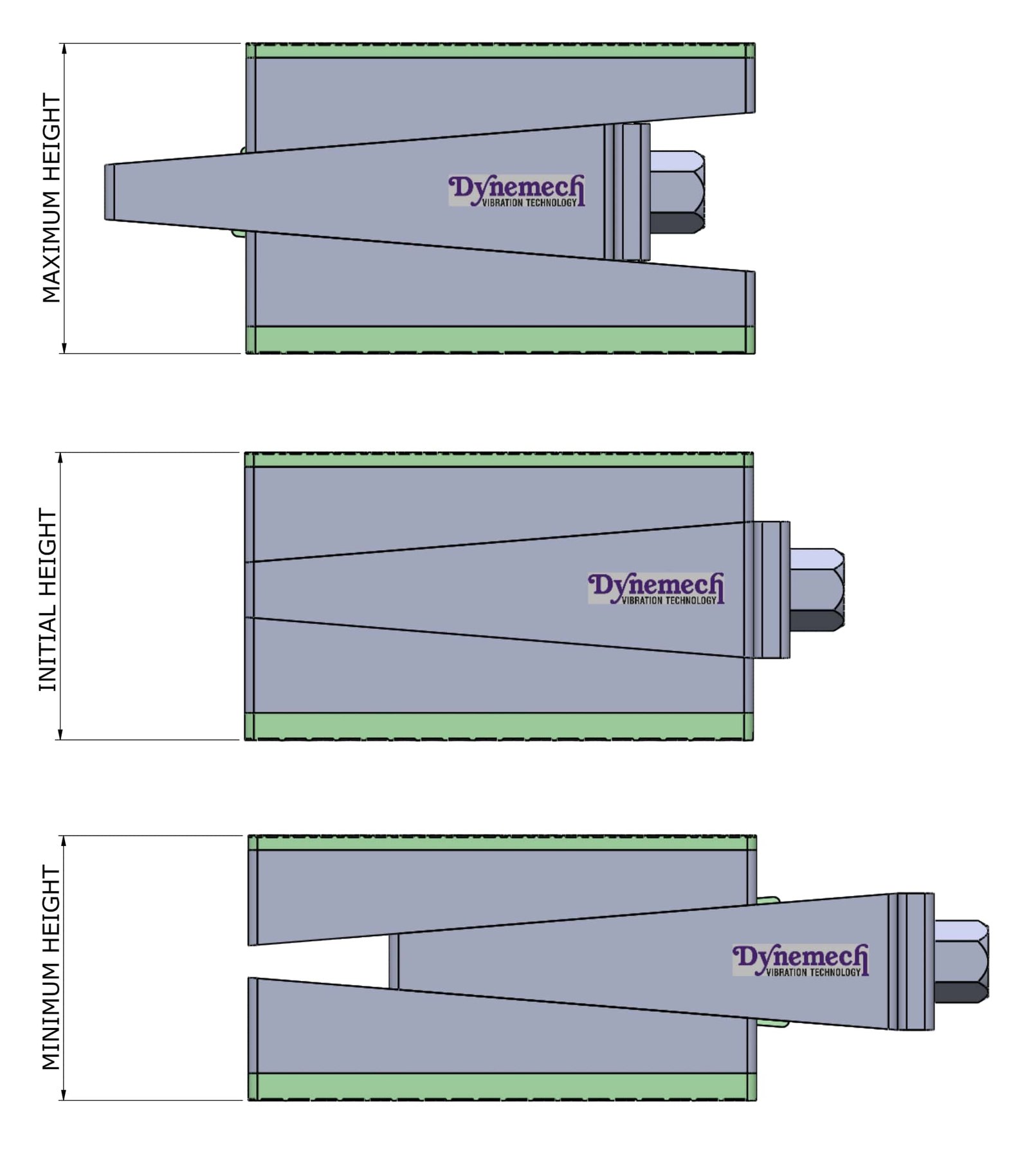

Adjustment Configuration

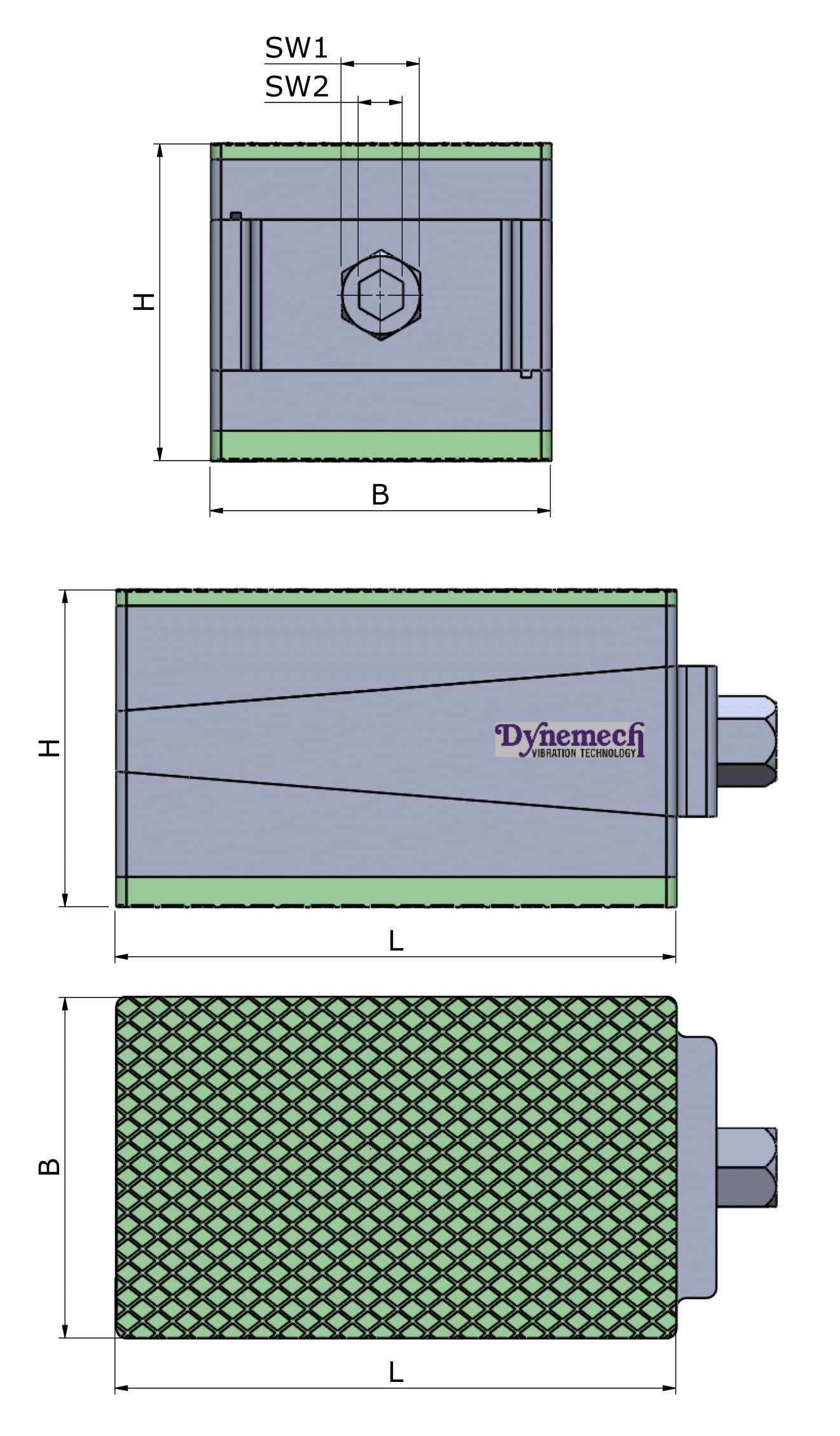

Dimensional Details

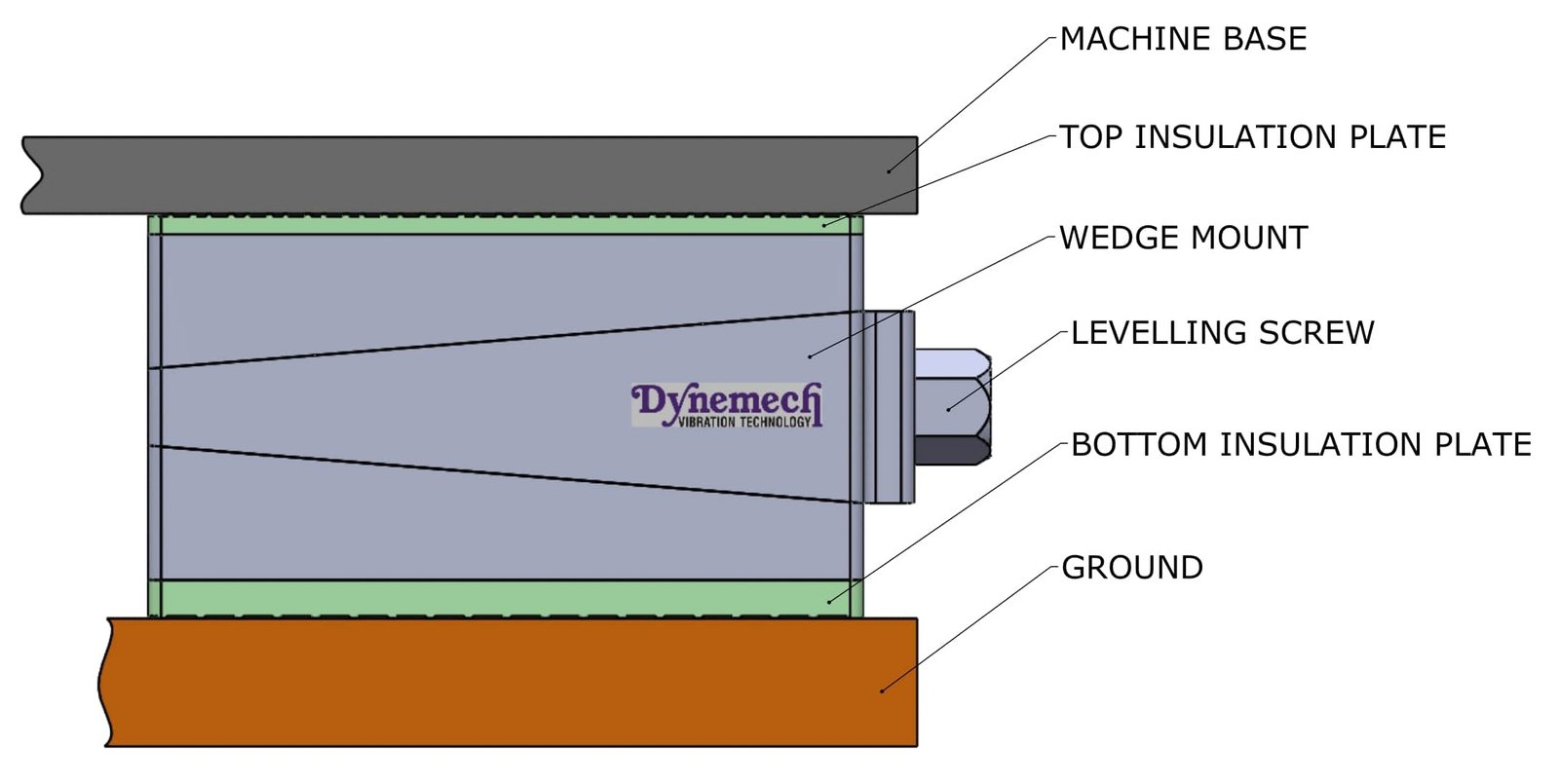

Installation 01

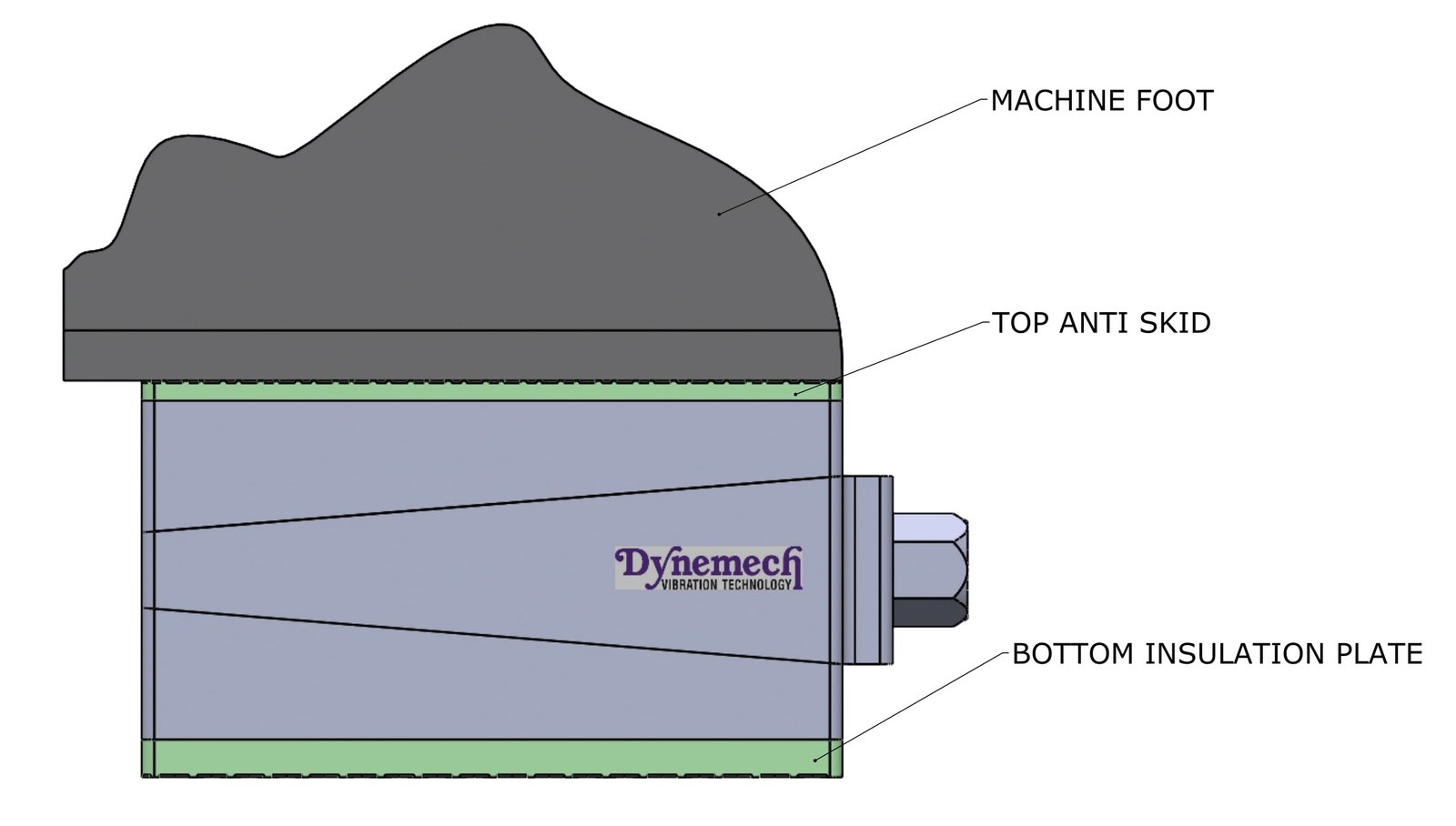

Installation 02
Description
Application:
Tool room machines, plastic injection moulding machines, pressure die casting machines, shaper, printing and textile machines etc.
Technical Data
Model Catologue
Load Capacity Kg/pc
4284
Length (L) mm
280
Width (B) mm
170
Height (H) at mean position (mm)
153
Adjustment Range (mm)
+12.5/-12.5
Bottom pad Type
Du-10
Bottom pad Thickness (mm)
10
Top pad Type
Da2
Top pad Thickness (mm)
8
SW1 (mm)
39
SW2 (mm)
22
Coeff. of Friction against Concrete
0.9
Natural Frequency at Max. Load (Hz)
25
Temperature Range (°C)
From -16 to 90
Color
Dark Grey/Green
