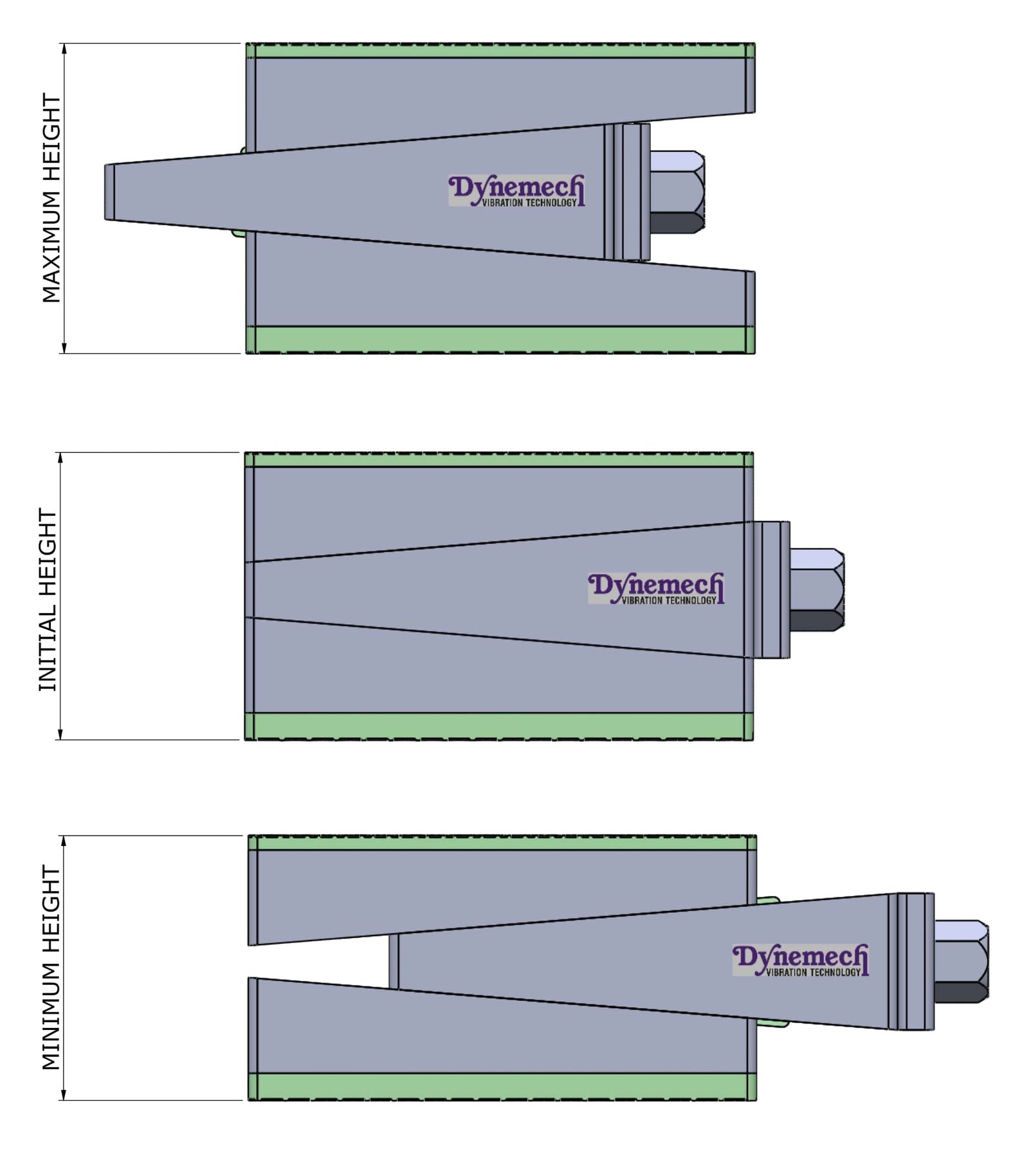

Adjustment Configuration

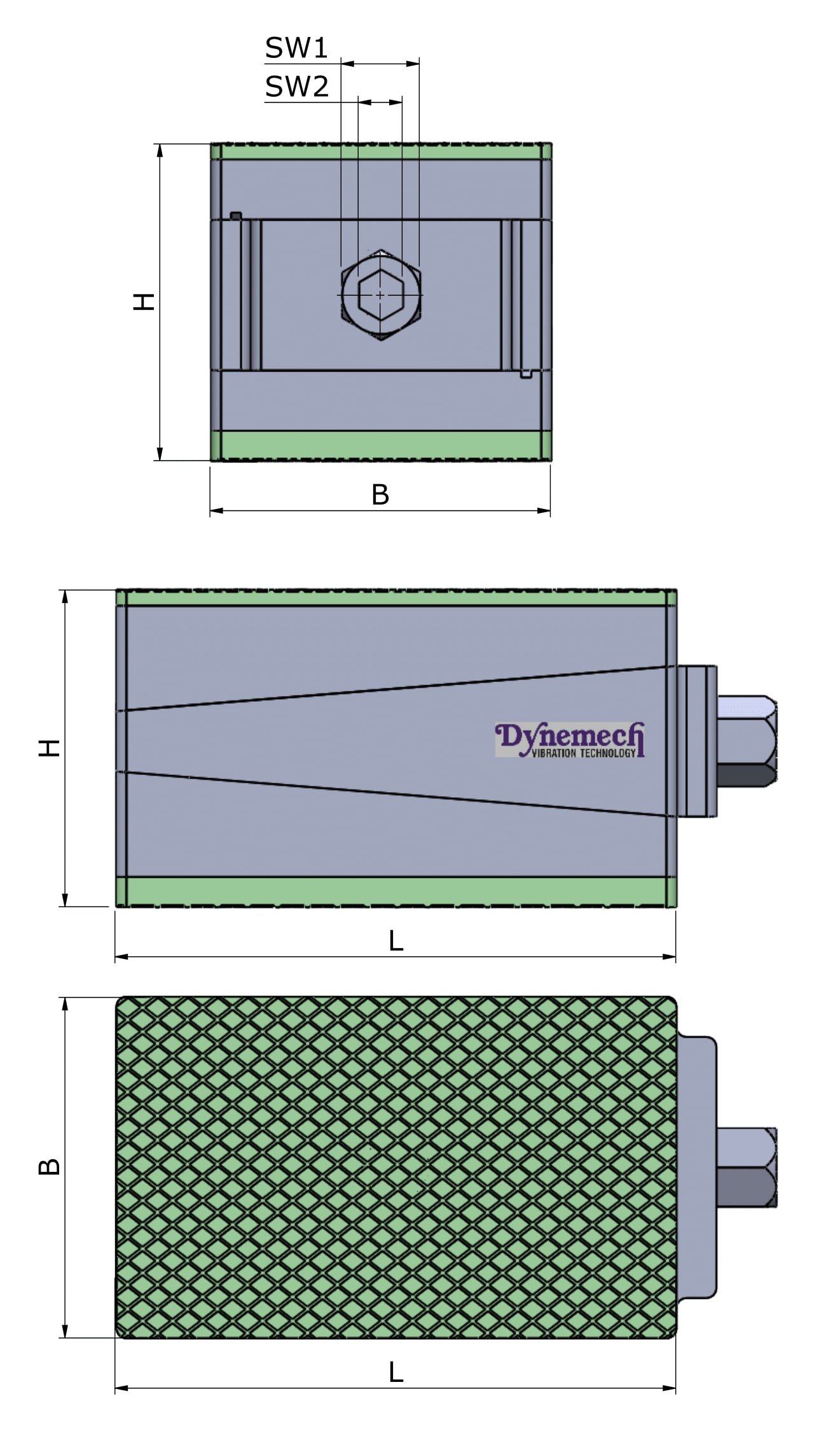

Dimensional Details

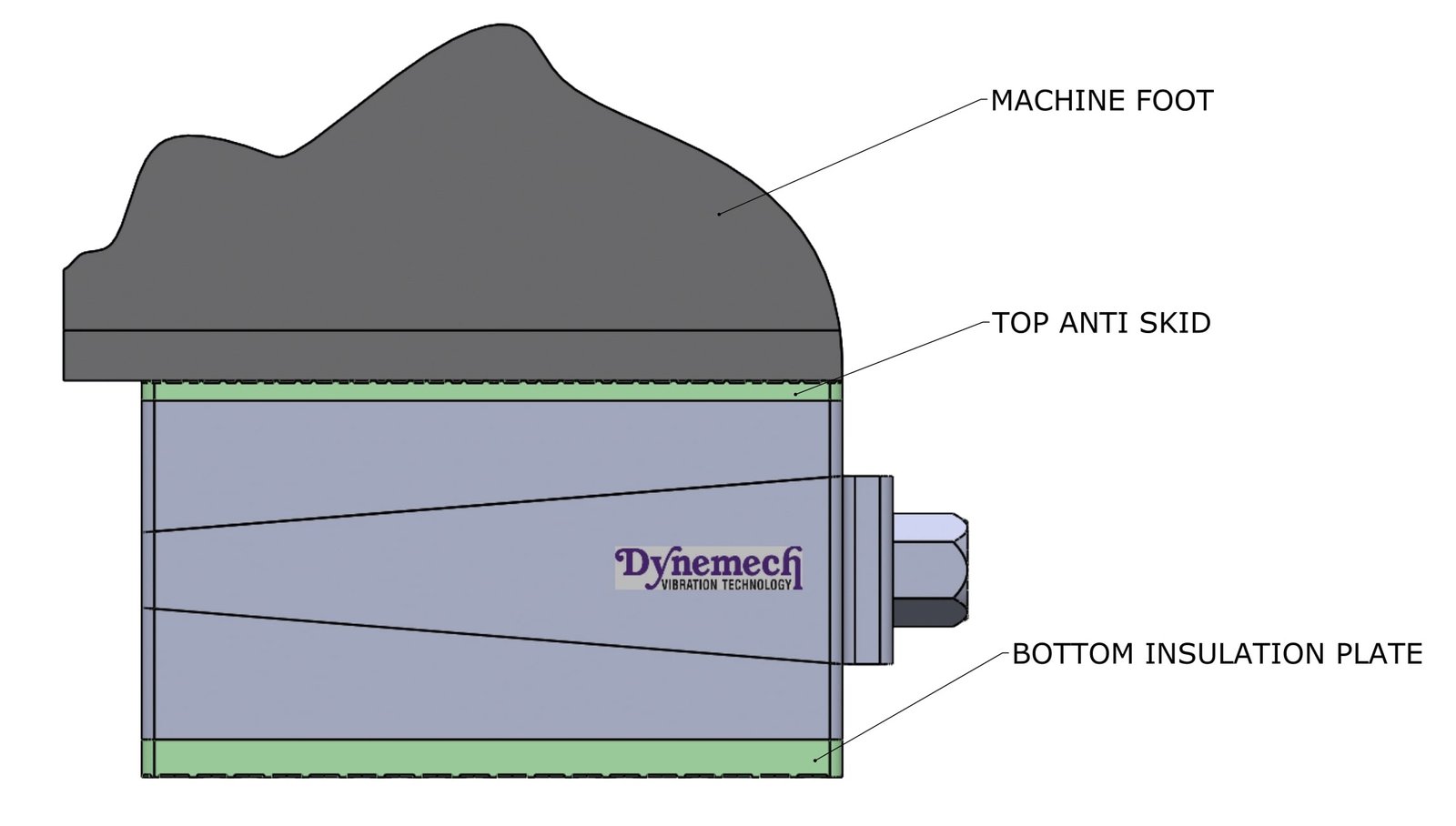

Installation 01
Installation 02

Description

Dynemech Wedge Mounts, Series DFH are sturdy in construction and installed as free standing. They are designed for very heavy and long bedded machines. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces.

Application:

Measuring & Testing Machines, Surface Plates, Hardness Testers, Microscopes, EDM Machines, Profile Projectors etc.

Technical Data

Model Catologue
Load Capacity Kg/pc
2380
Length (L) mm
280
Width (B) mm
170
Height (H) at mean position (mm)
157
Adjustment Range (mm)
+12.5/-12.5
Bottom pad Type
Dp2
Bottom pad Thickness (mm)
20
Top pad Type
Da1
Top pad Thickness (mm)
2
SW1 (mm)
39
SW2 (mm)
22
Coeff. of Friction against Concrete
0.8
Natural Frequency at Max. Load (Hz)
12
Temperature Range (°C)
From -16 to 90
Color
Dark Grey/Green
