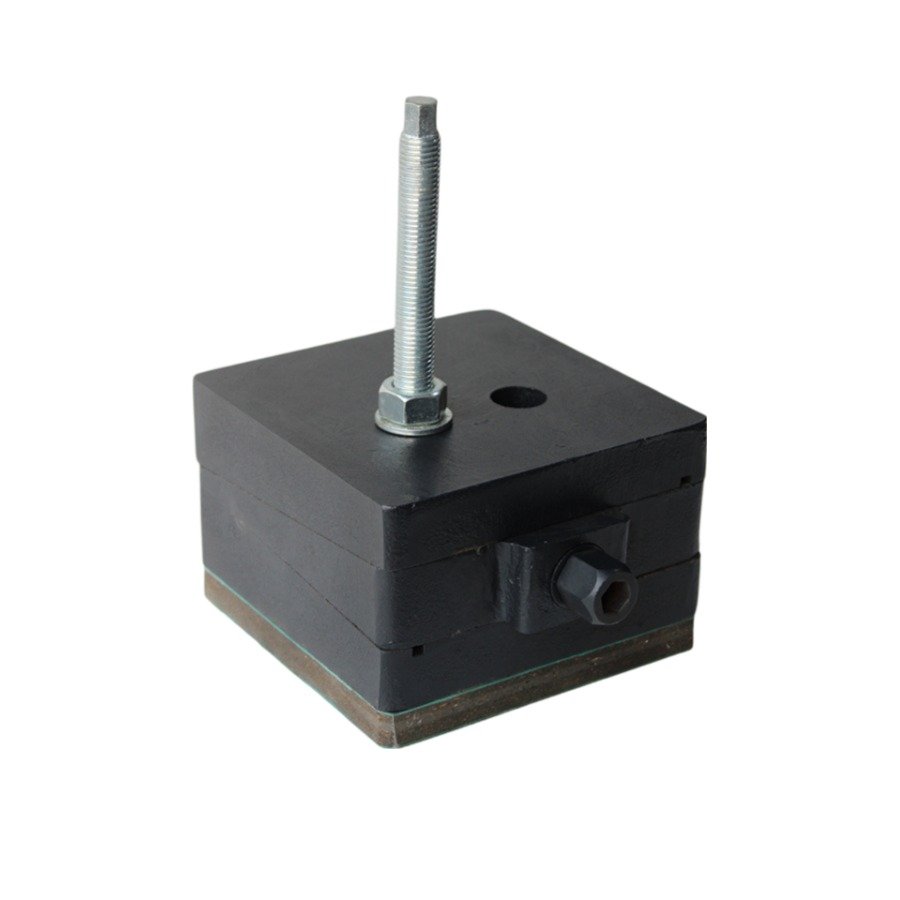

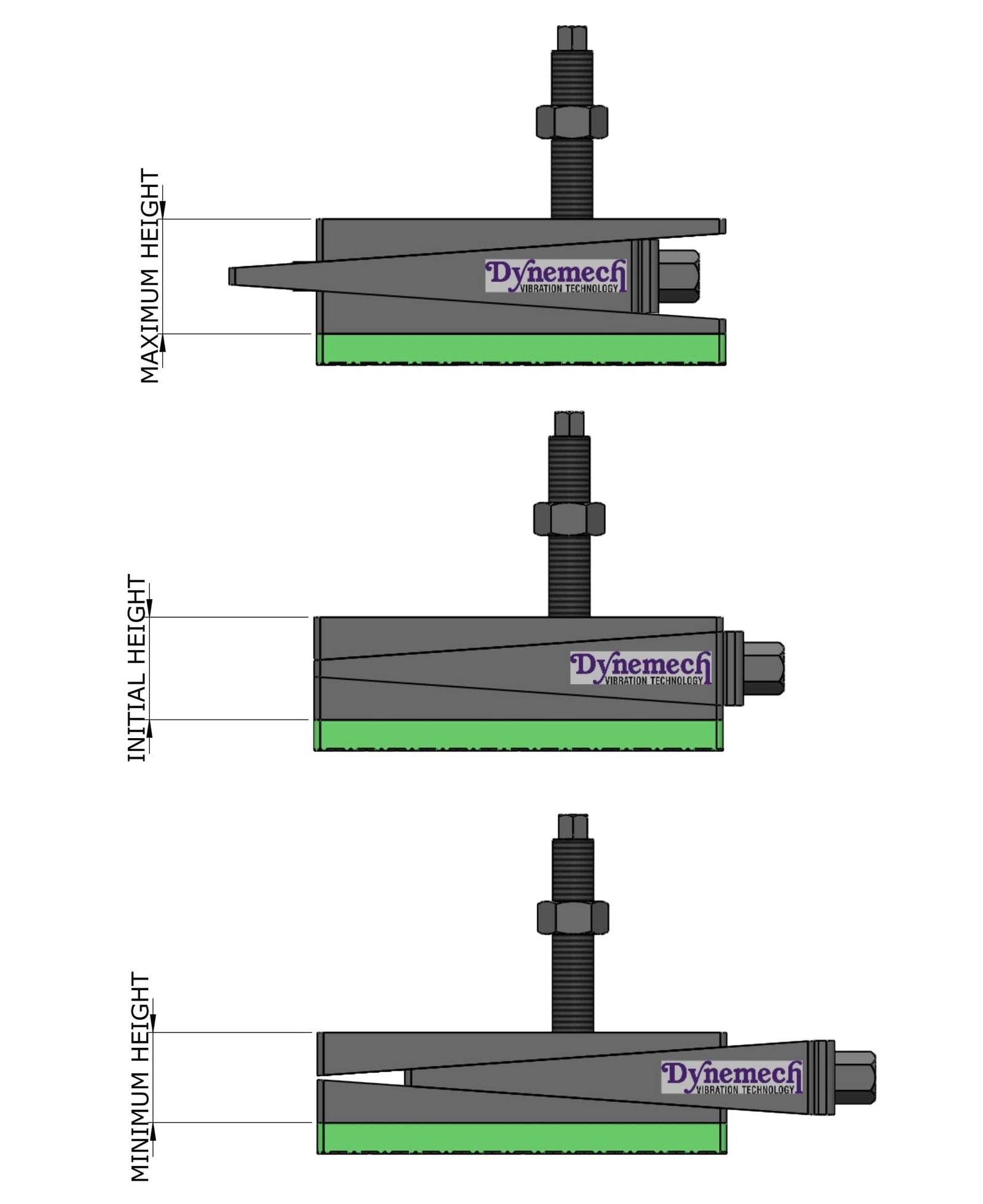

Dynemech Wedge mounts, Series DBP-150 have a height of 150mm at mean position to help proper cleaning and repairing under the machines, with specs similar to series DB.
DBP-s1-150
Description
Catalogue
Series:
DBP-s1-150
Applications:
Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
| Model | Load Capacity(Kg/pc) | Length (L) mm | Width (B) mm | Height (H) (mm) |
|---|---|---|---|---|
| DBP0-s1-155-FG-M12x1.75x200-S-Z-8-GR | 500 | 100 | 100 | 155 |
| DBP1-s1-155-FG-M16x2.0x200-S-Z-8-GR | 600 | 115 | 115 | 155 |
| DBP2-s1-155-FG-M18x2.5x200-S-Z-8-GR | 1000 | 150 | 150 | 155 |
| DBP3-s1-155-FG-M20x2.5x200-S-Z-8-GR | 1800 | 200 | 200 | 155 |
| DBP4-s1-155-FG-M20x2.5x200-S-Z-8-GR | 2200 | 200 | 250 | 155 |
| DBP5-s1-155-FG-M24x3.0x200-S-Z-8-GR | 3500 | 250 | 320 | 155 |
| DBP6-s1-155-FG-M24x3.0x200-S-Z-8-GR | 5200 | 300 | 400 | 155 |
| DBP7-s1-155-FG-M24x3.0x200-S-Z-8-GR | 9500 | 400 | 500 | 155 |
