Dynemech Wedge mounts, Series DBHO mounts are sturdy in construction. Wedge mounts are bolted with the machine base. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces.
DBHO3-M20x2.5×250-FG-DG
Model

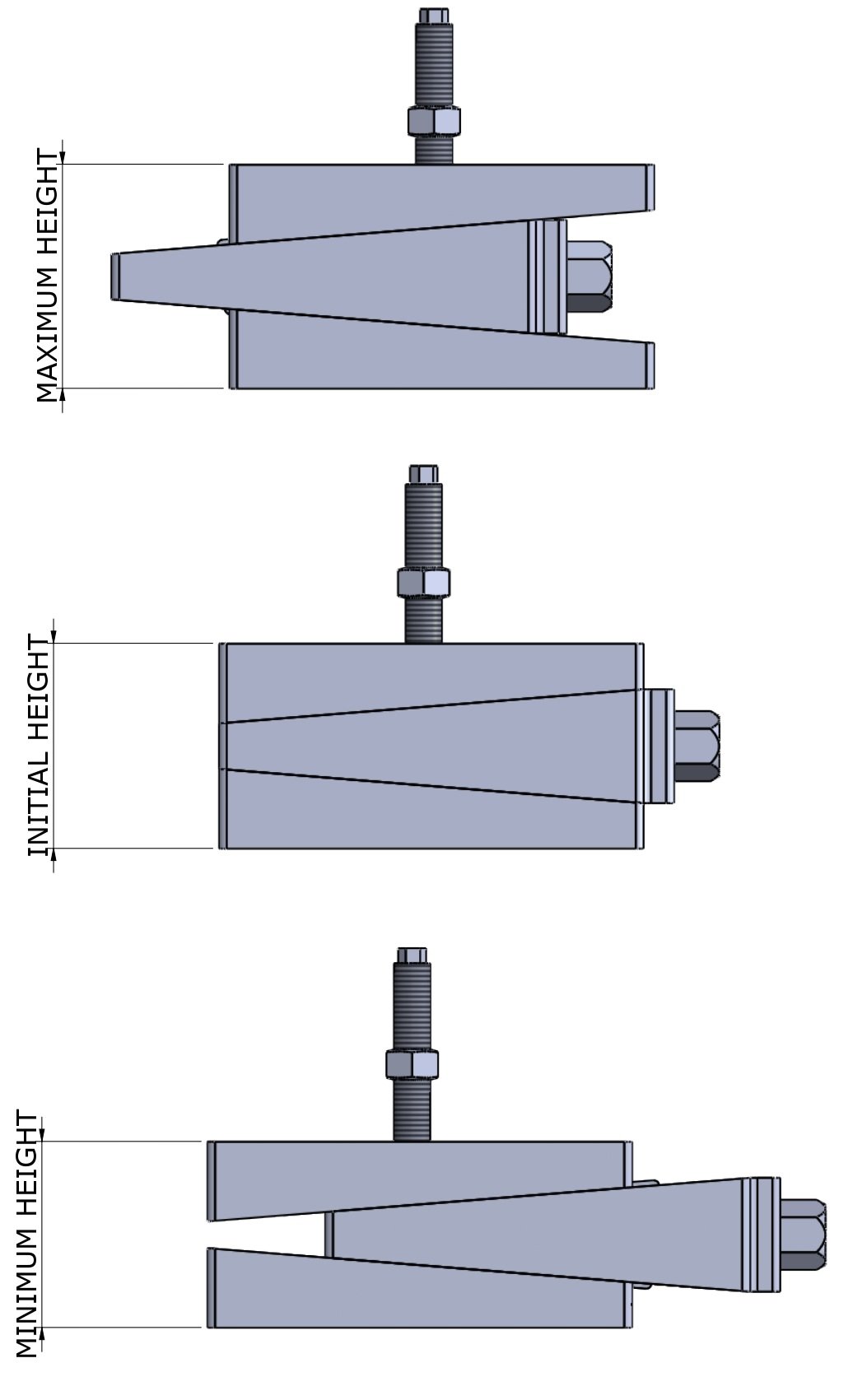

Adjustment Configuration

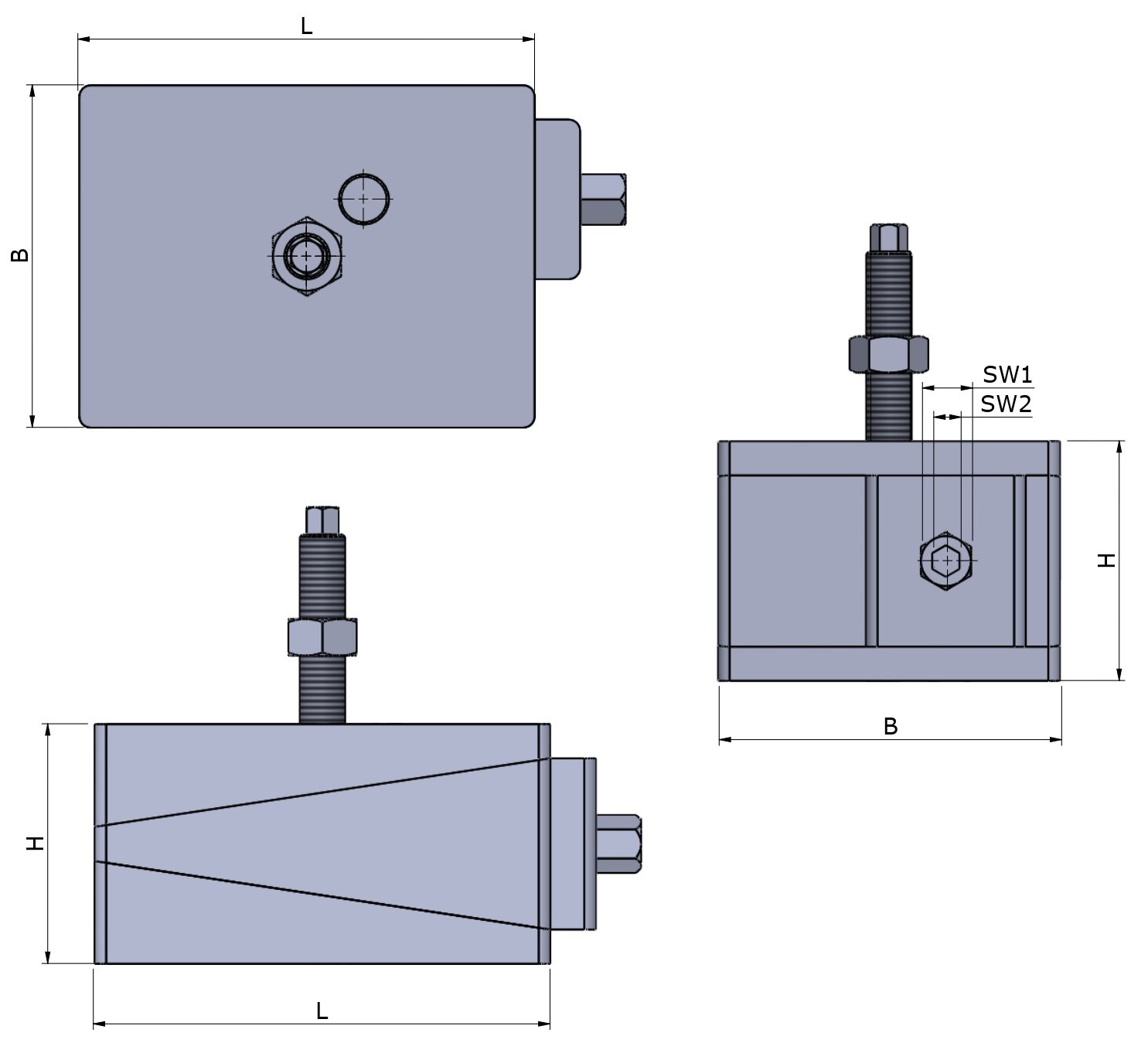

Dimensional Details

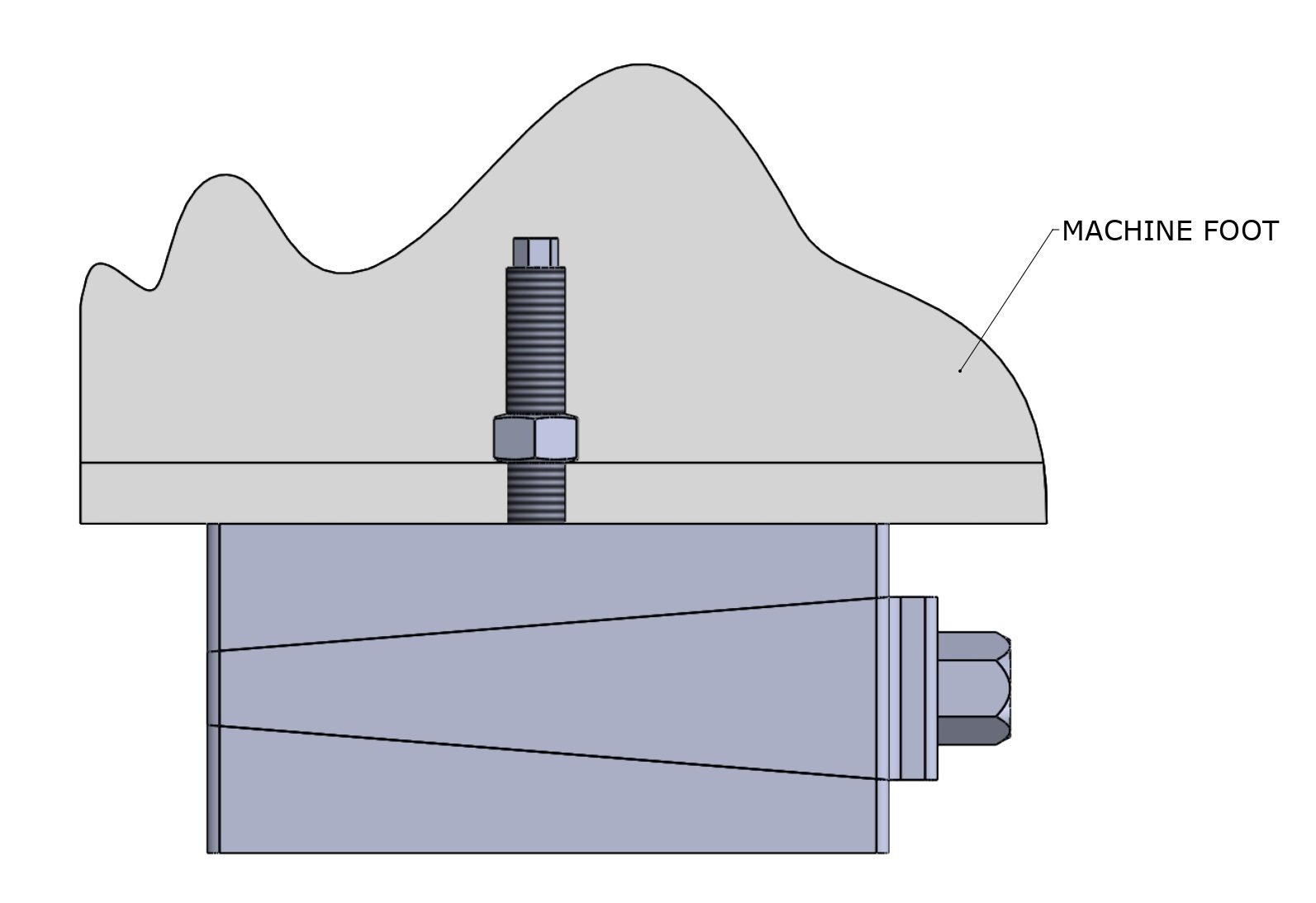

Installation 01

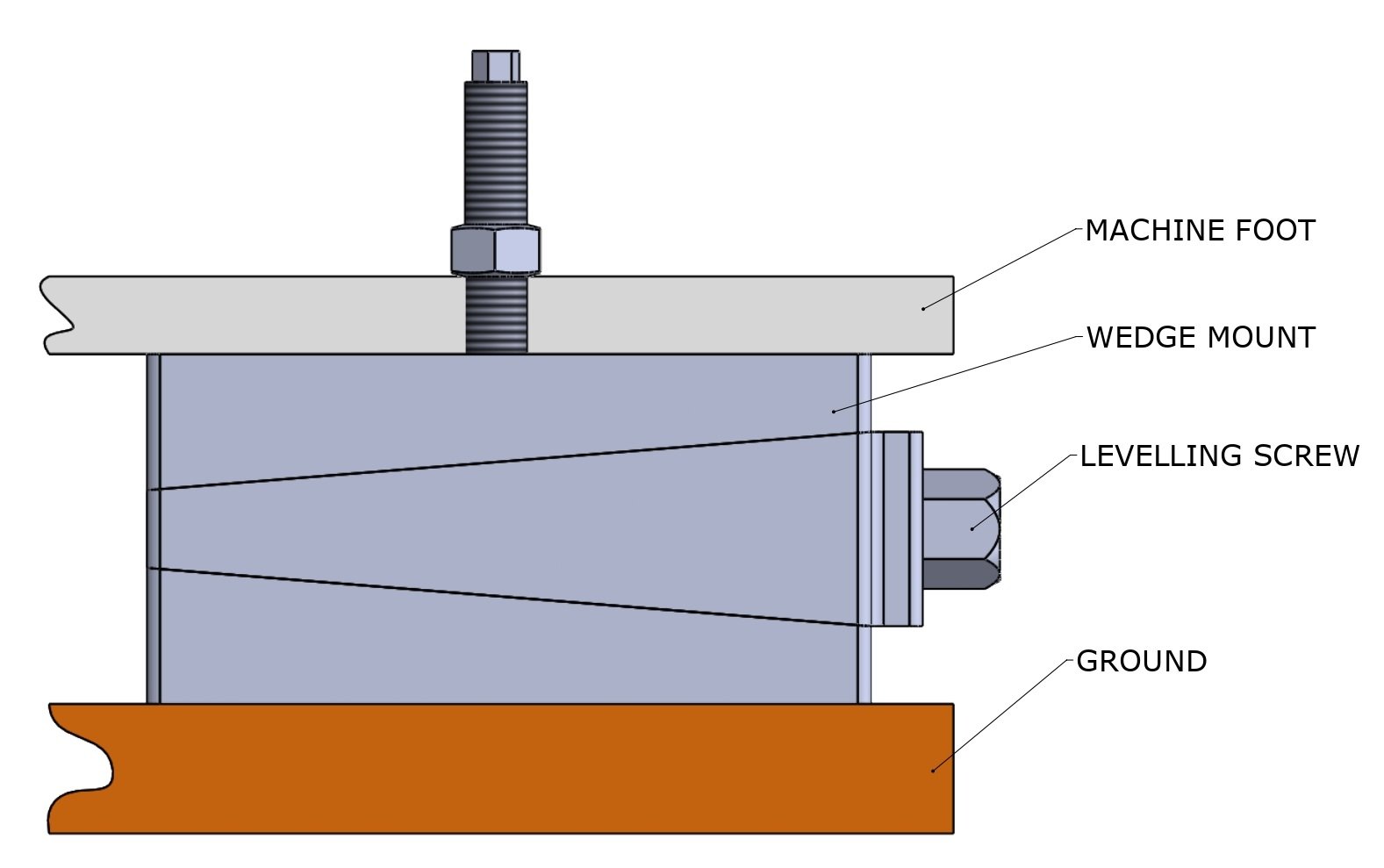

Installation 02
Description
Application:
For levelling of all Precicion Machines.
Technical Data
Load Capacity Kg/pc
23000
Length (L) mm
280
Width (B) mm
170
Height (H) at mean position (mm)
135
Adjustment Range (mm)
+12.5/-12.5
Bottom pad Type
X
Bottom pad Thickness (mm)
X
BOLT SIZE (mm)
M20
SW1 (mm)
39
SW2 (mm)
22
Coeff. of Friction against Concrete
X
Natural Frequency at Max. Load (Hz)
X
Temperature Range (°C)
From -16 to 90
Color
Dark Grey/Green
