Dynemech Wedge mounts, Series DBHO mounts are sturdy in construction. Wedge mounts are bolted with the machine base. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces.
DBHO2-u-12-M20x2.5×200-FG-DG
Model

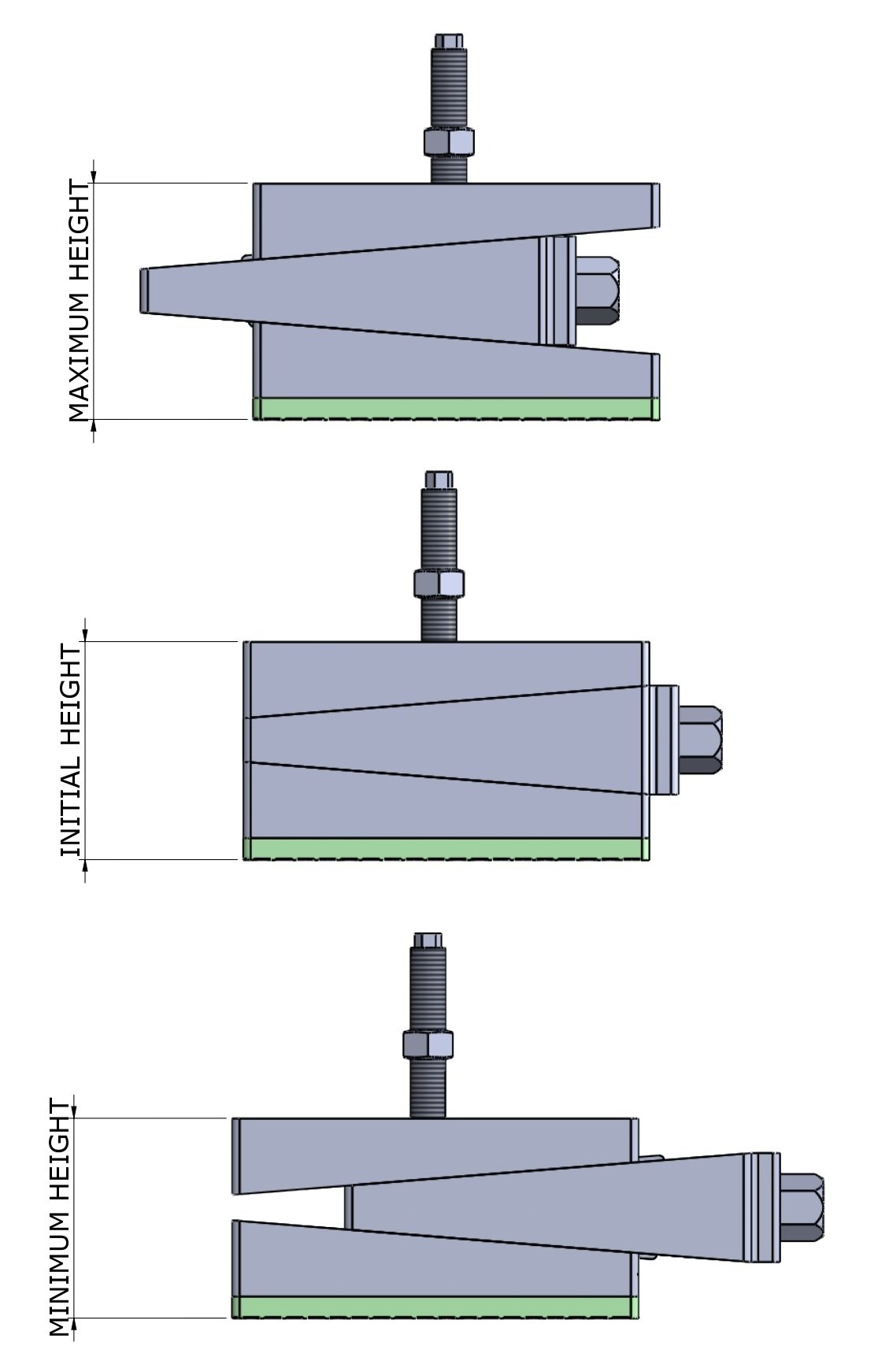

Adjustment Configuration

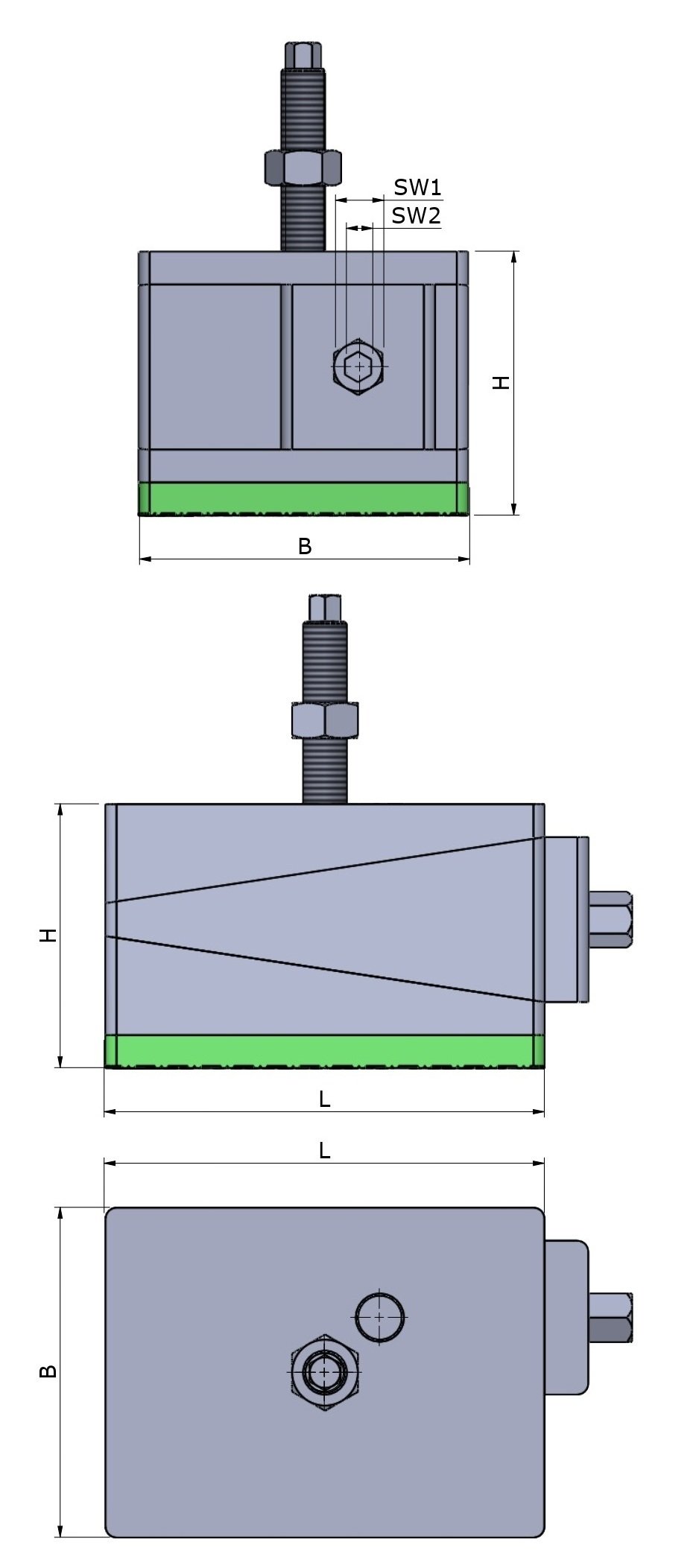

Dimensional Details

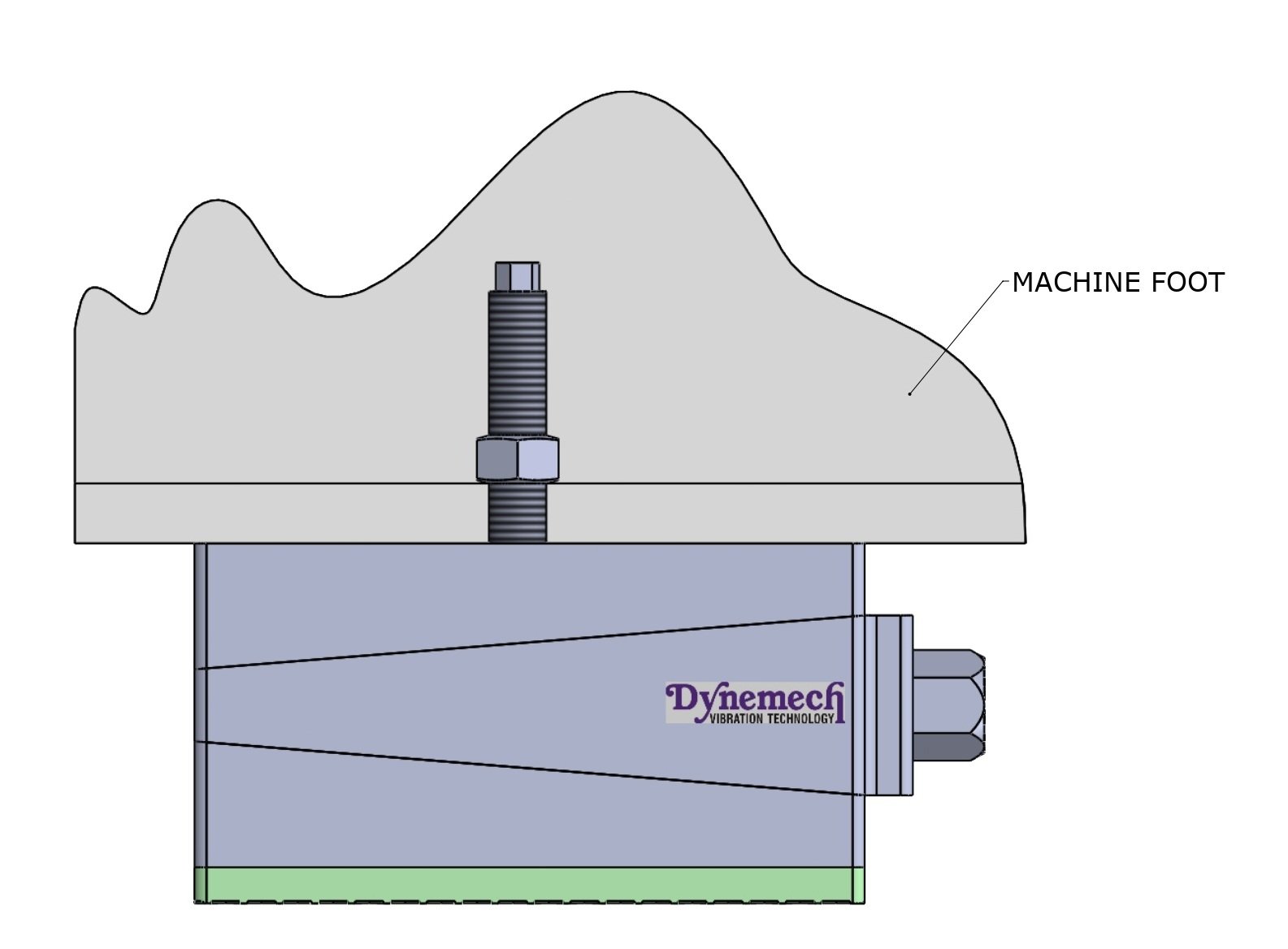

Installation 01

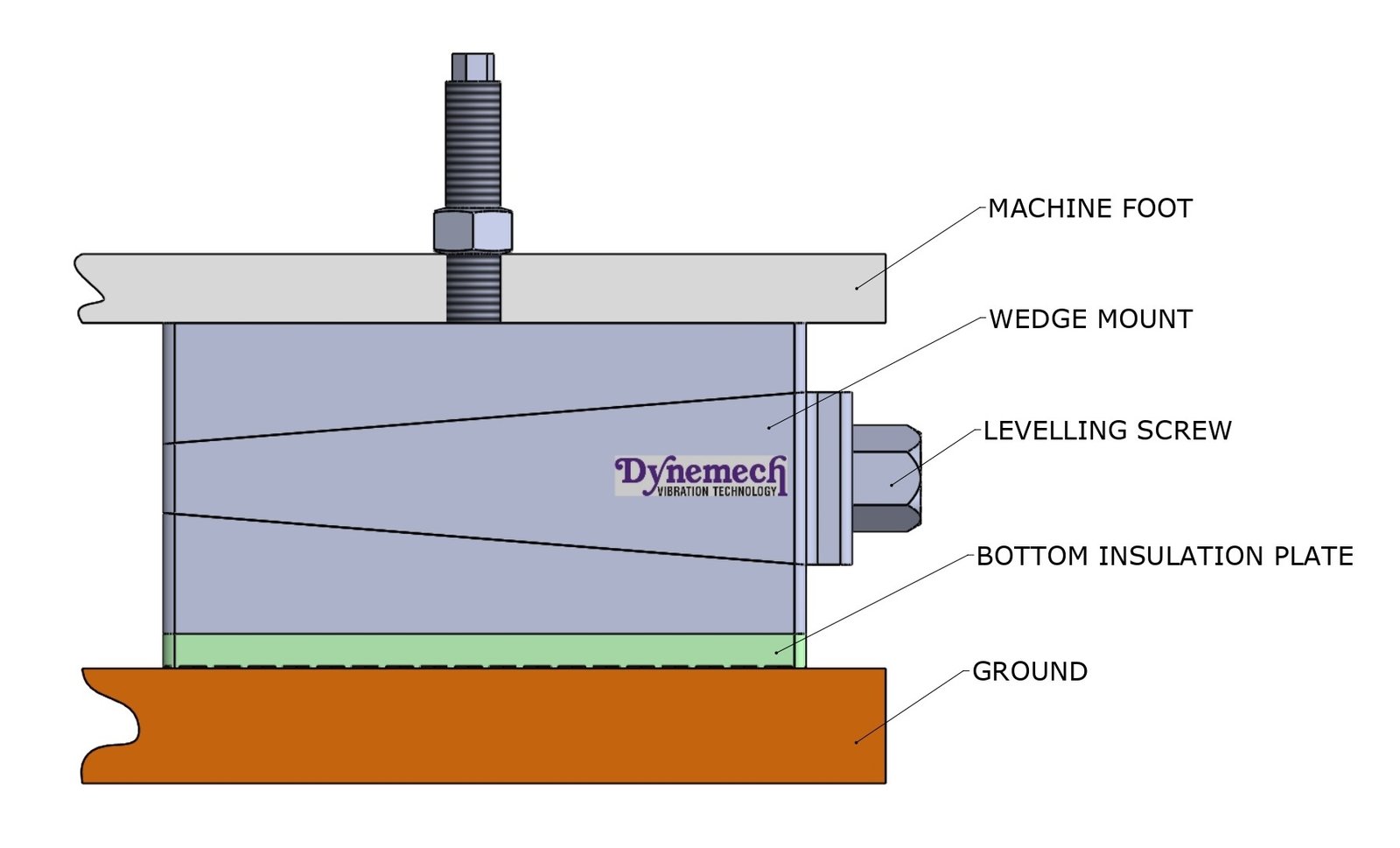

Installation 02
Description
Application:
Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Technical Data
Load Capacity Kg/pc
2700
Length (L) mm
200
Width (B) mm
150
Height (H) at mean position (mm)
117
Adjustment Range (mm)
+10/-10
Bottom pad Type
Du-12
Bottom pad Thickness (mm)
12
BOLT SIZE (mm)
M20
SW1 (mm)
22
SW2 (mm)
12
Coeff. of Friction against Concrete
0.9
Natural Frequency at Max. Load (Hz)
20
Temperature Range (°C)
From -16 to 90
Color
Dark Grey/Green
