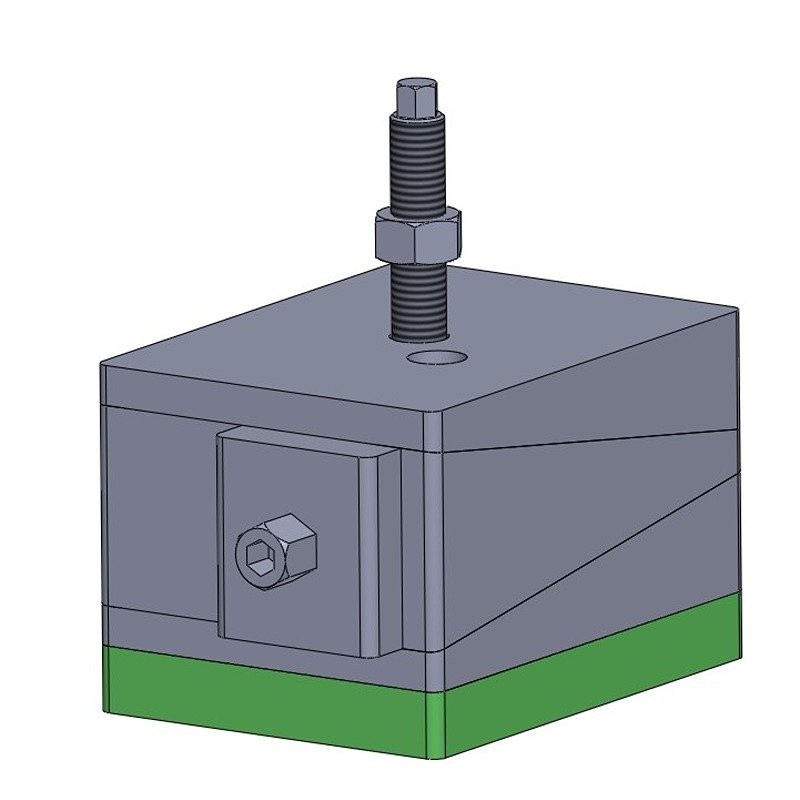

Dynemech Wedge mounts, Series DBHO mounts are sturdy in construction. Wedge mounts are bolted with the machine base. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces.
DBHO3-s2-M20x2.5×250-FG-DG
Model

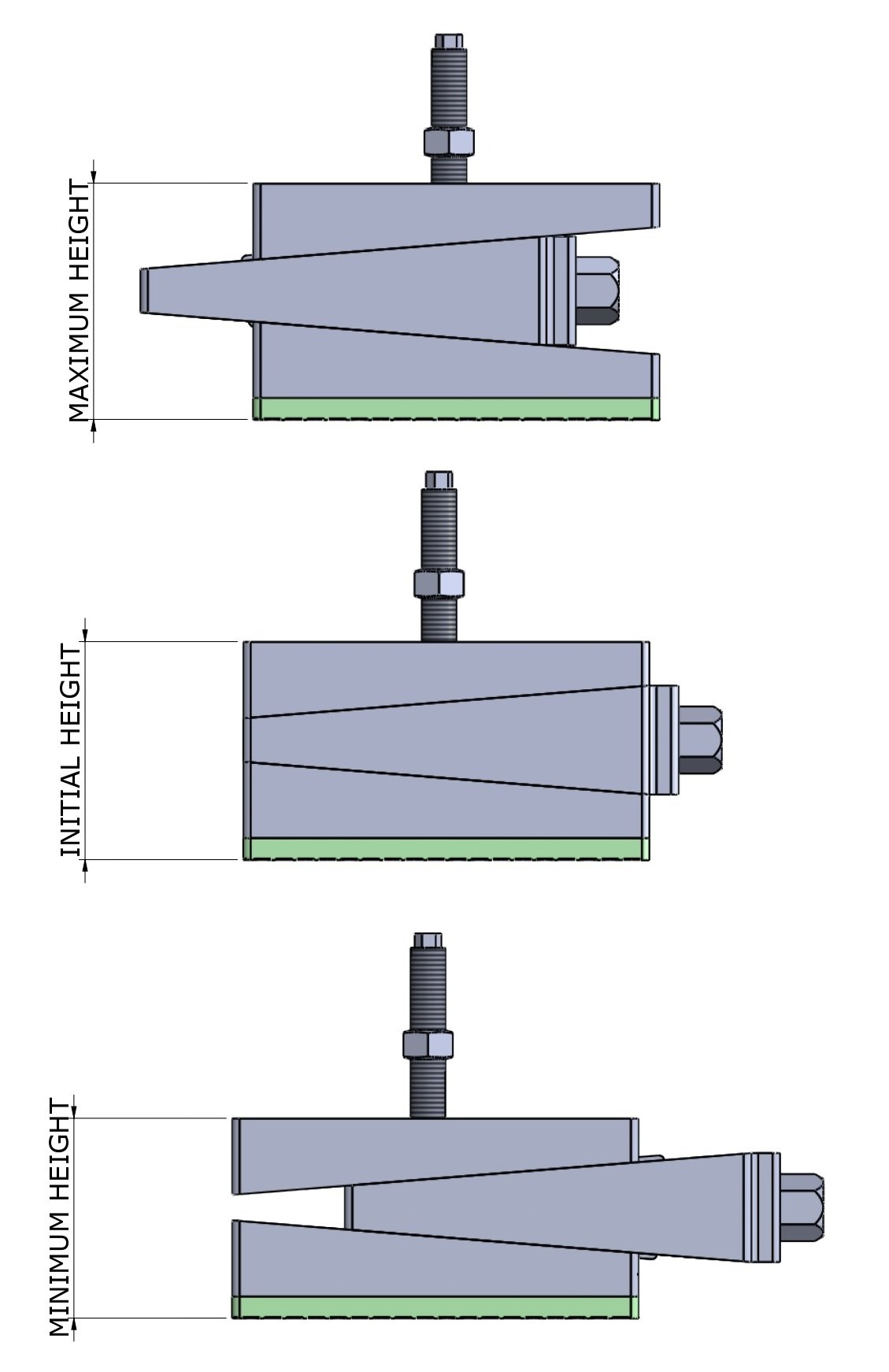

Adjustment Configuration

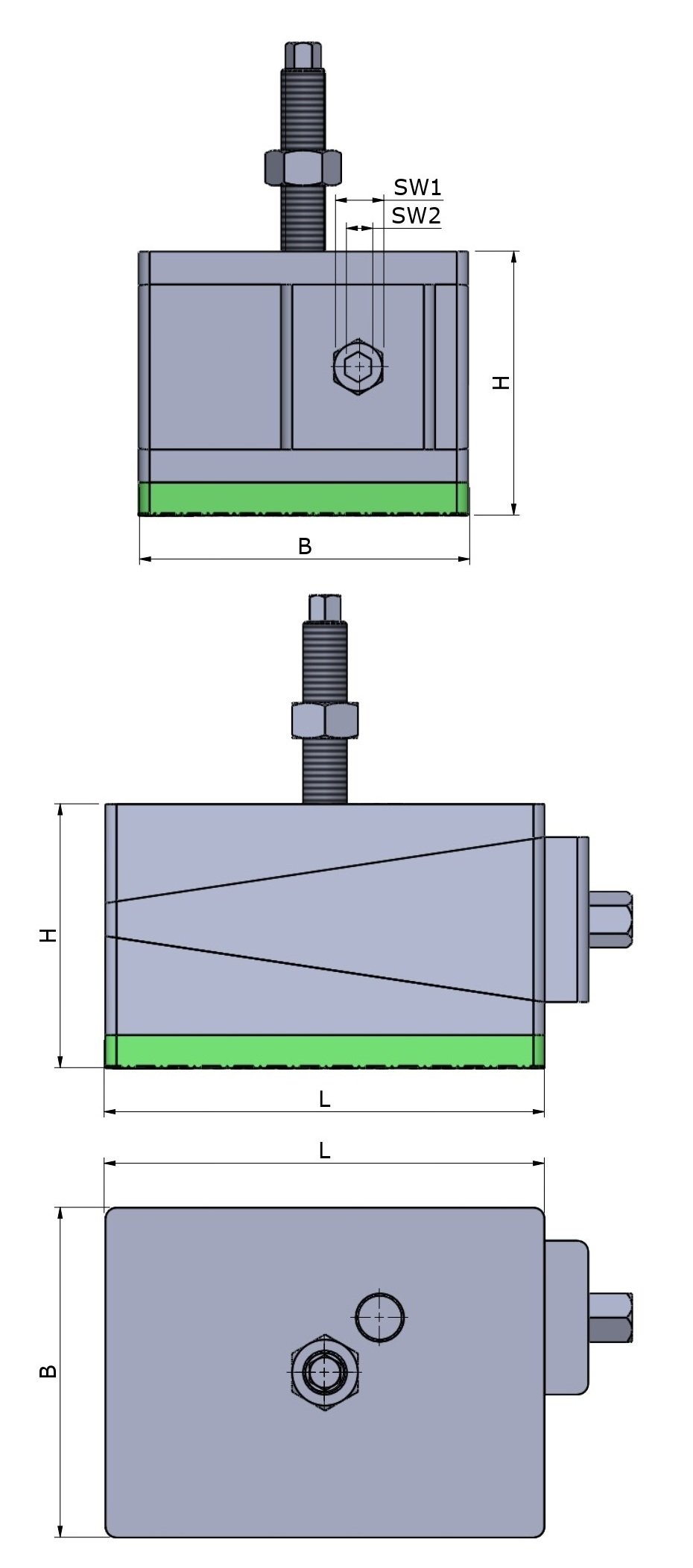

Dimensional Details

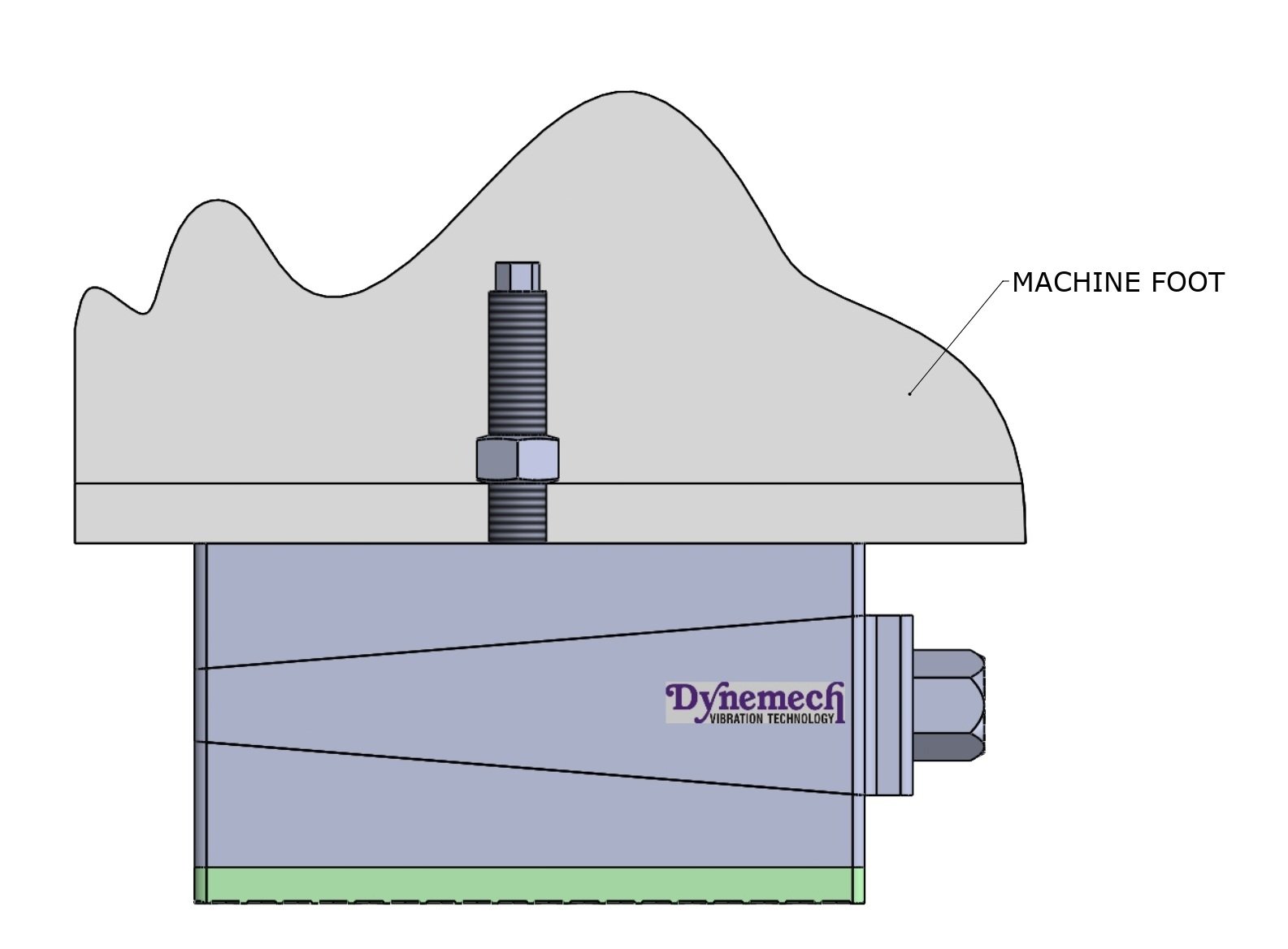

Installation 01

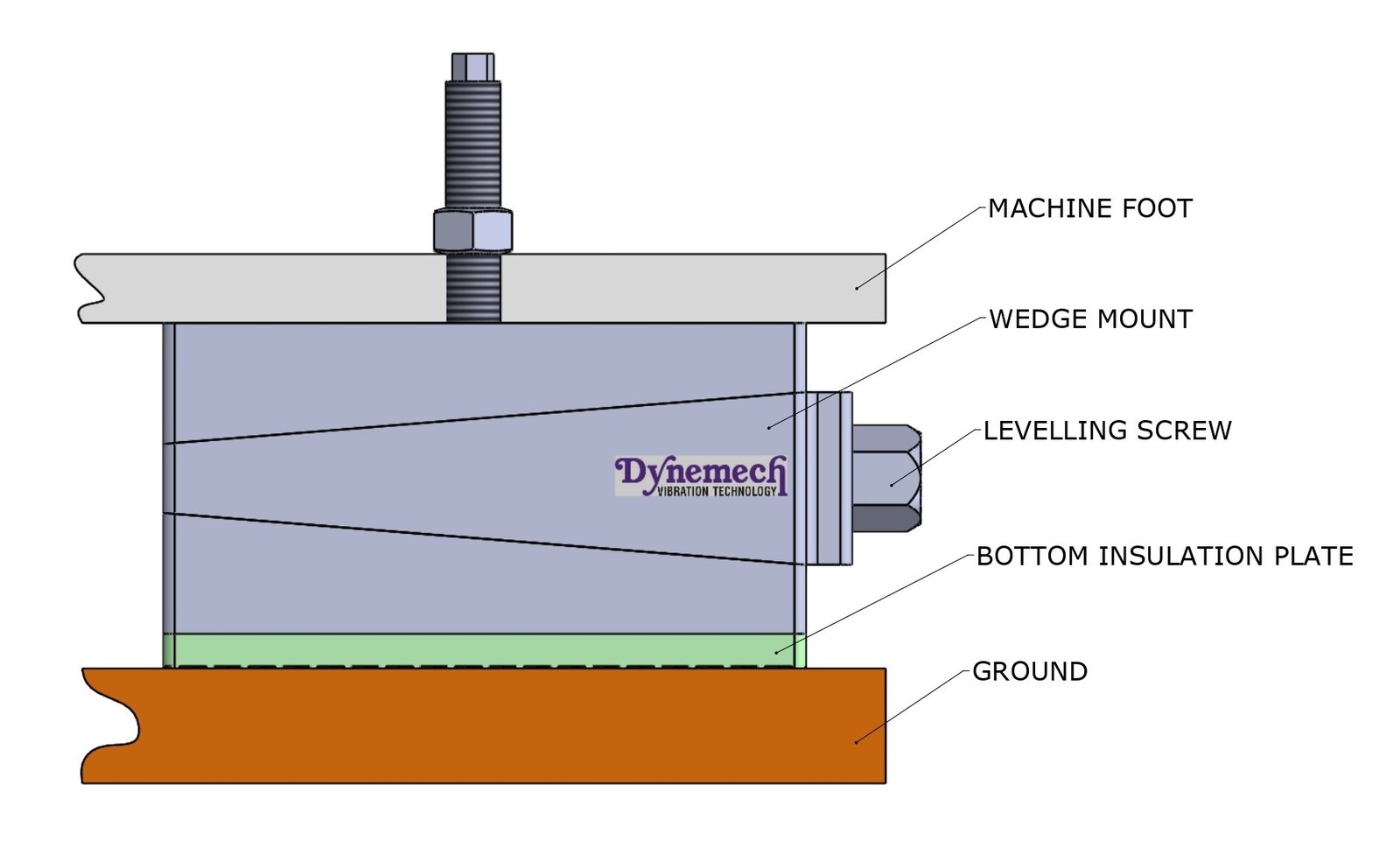

Installation 02
Description
Application:
Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.
Technical Data
Load Capacity Kg/pc
3800
Length (L) mm
280
Width (B) mm
170
Height (H) at mean position (mm)
160
Adjustment Range (mm)
+12.5/-12.5
Bottom pad Type
Ds2
Bottom pad Thickness (mm)
25
BOLT SIZE (mm)
M20
SW1 (mm)
39
SW2 (mm)
22
Coeff. of Friction against Concrete
0.8
Natural Frequency at Max. Load (Hz)
8
Temperature Range (°C)
From -16 to 90
Color
Dark Grey/Green
