Dynemech Wedge mounts, Series DBHO mounts are sturdy in construction. Wedge mounts are bolted with the machine base. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces.
DBHO2-p2-M20x2.5×200-FG-DG
Model
Adjustment Configuration

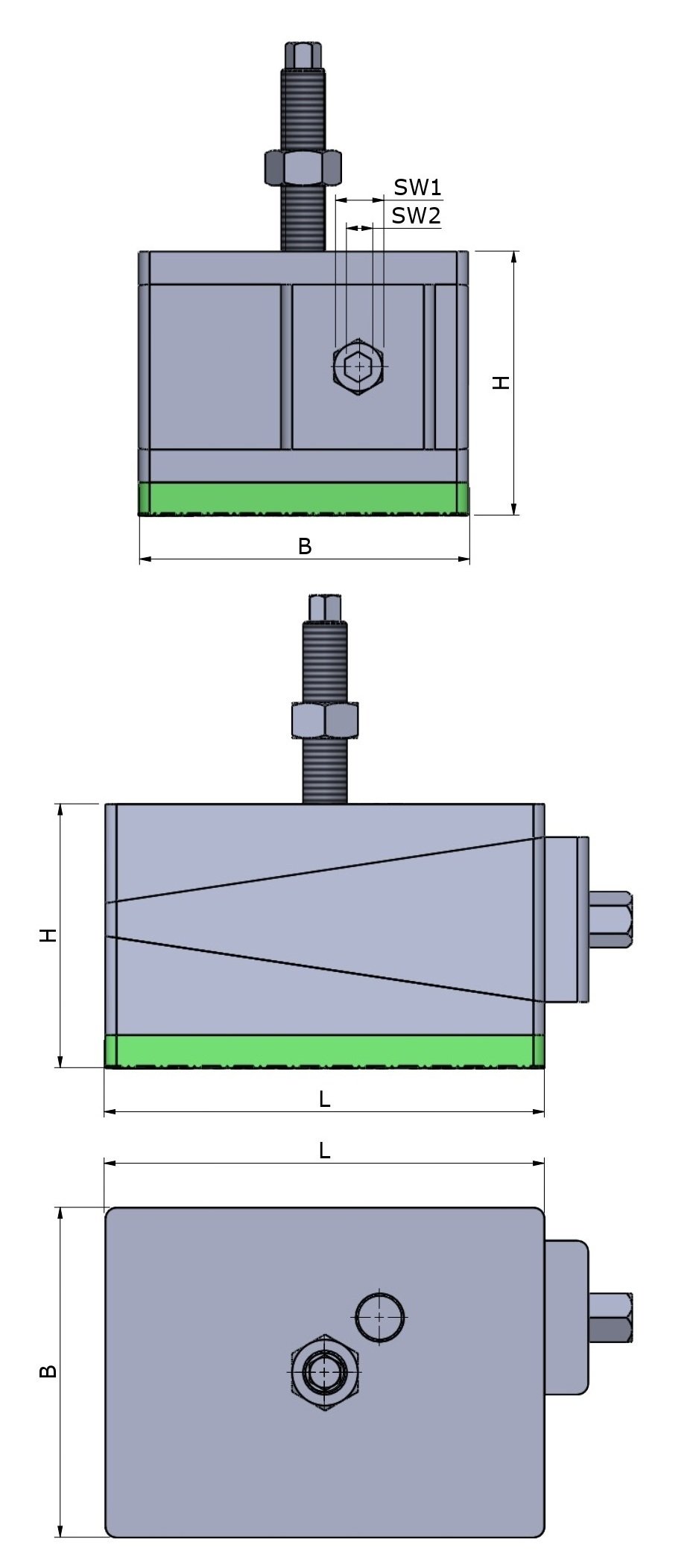

Dimensional Details

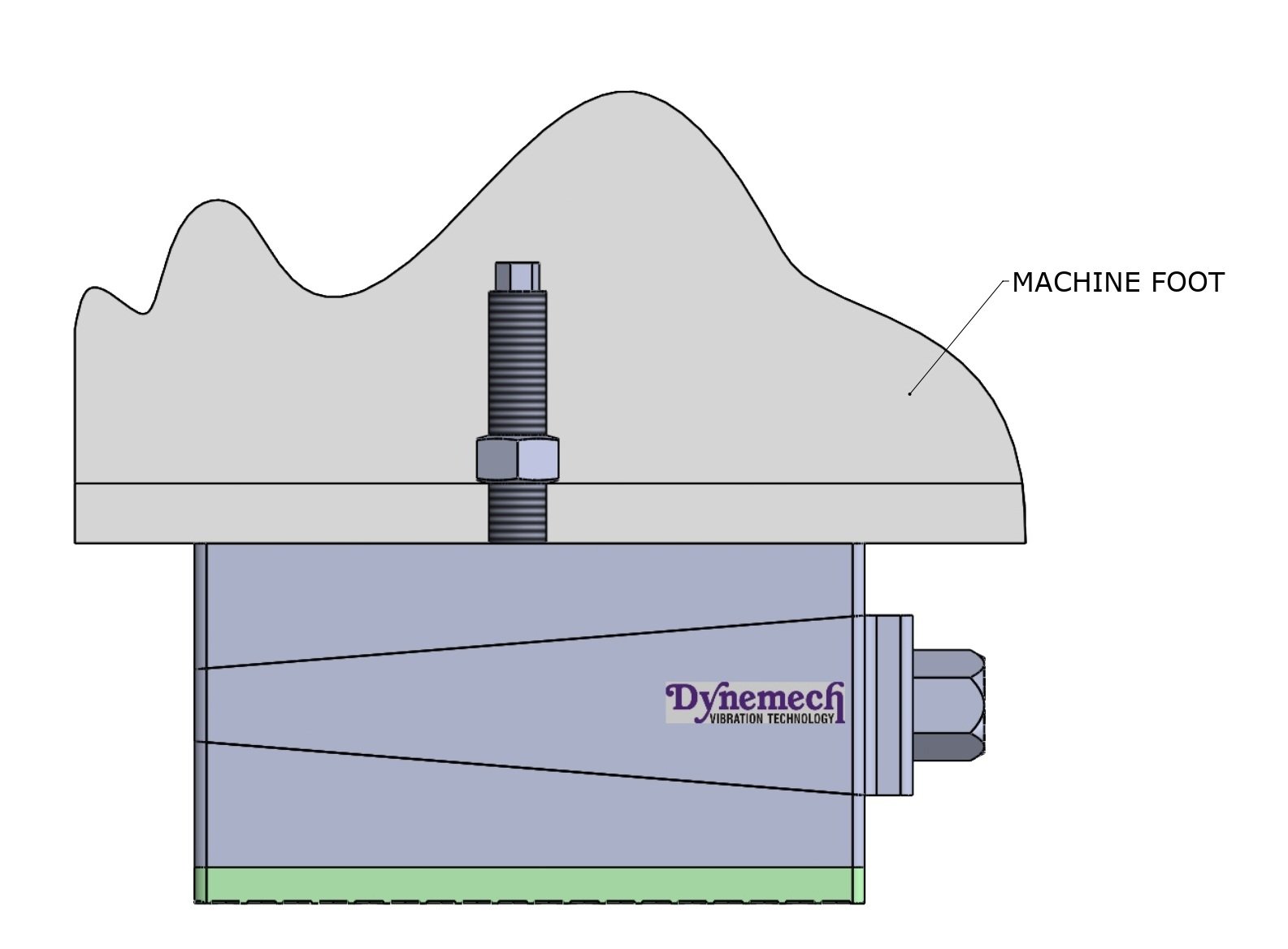

Installation 01

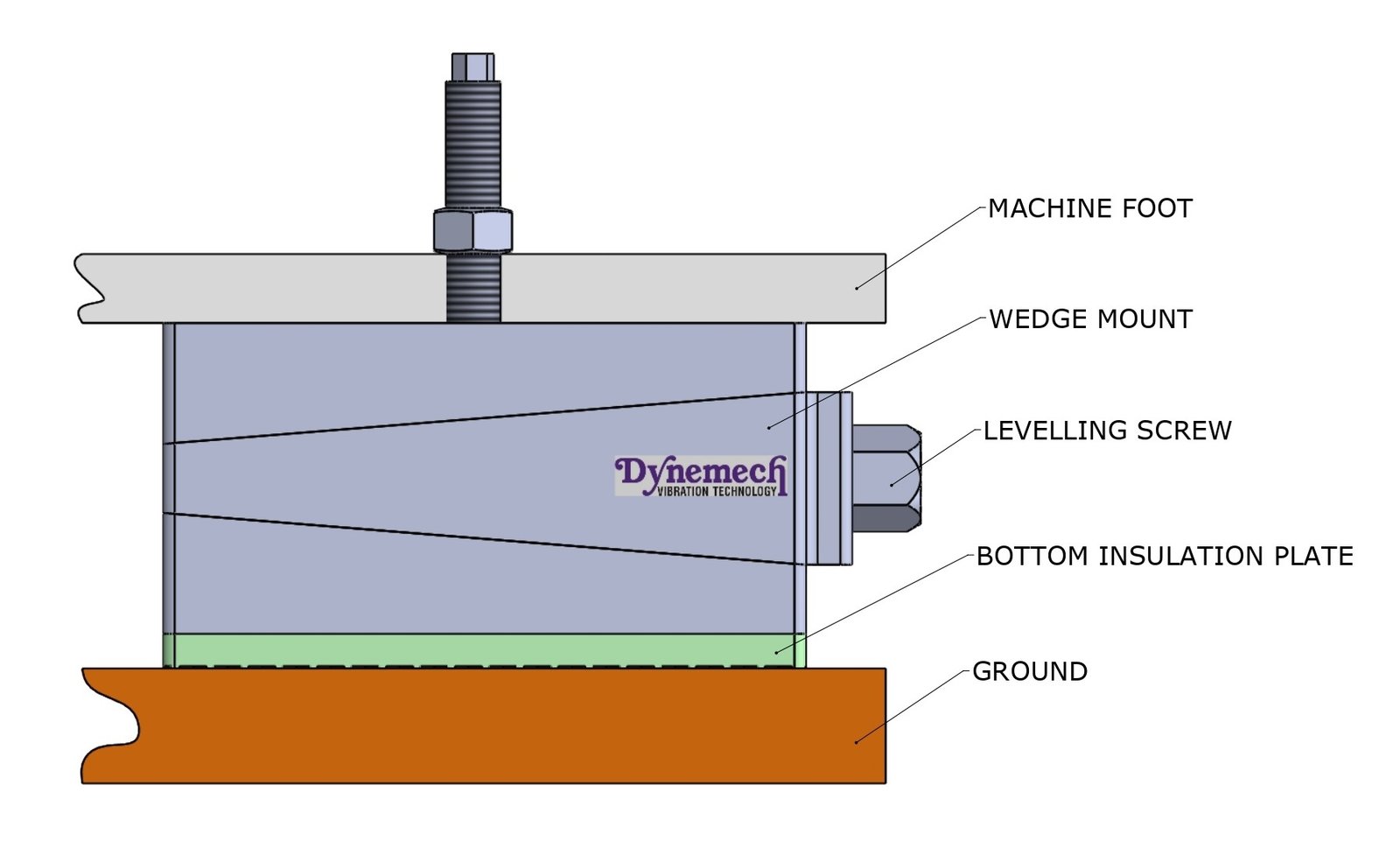

Installation 02
Description
Application:
Medium Presses, Punching Presses, Centreless Grinding Machines, Gear Shapers, High Speed Machines on upper floors.
Technical Data
Load Capacity Kg/pc
1500
Length (L) mm
200
Width (B) mm
150
Height (H) at mean position (mm)
125
Adjustment Range (mm)
+10/-10
Bottom pad Type
Dp2
Bottom pad Thickness (mm)
20
BOLT SIZE (mm)
M20
SW1 (mm)
22
SW2 (mm)
12
Coeff. of Friction against Concrete
0.8
Natural Frequency at Max. Load (Hz)
12
Temperature Range (°C)
From -16 to 90
Color
Dark Grey/Green
