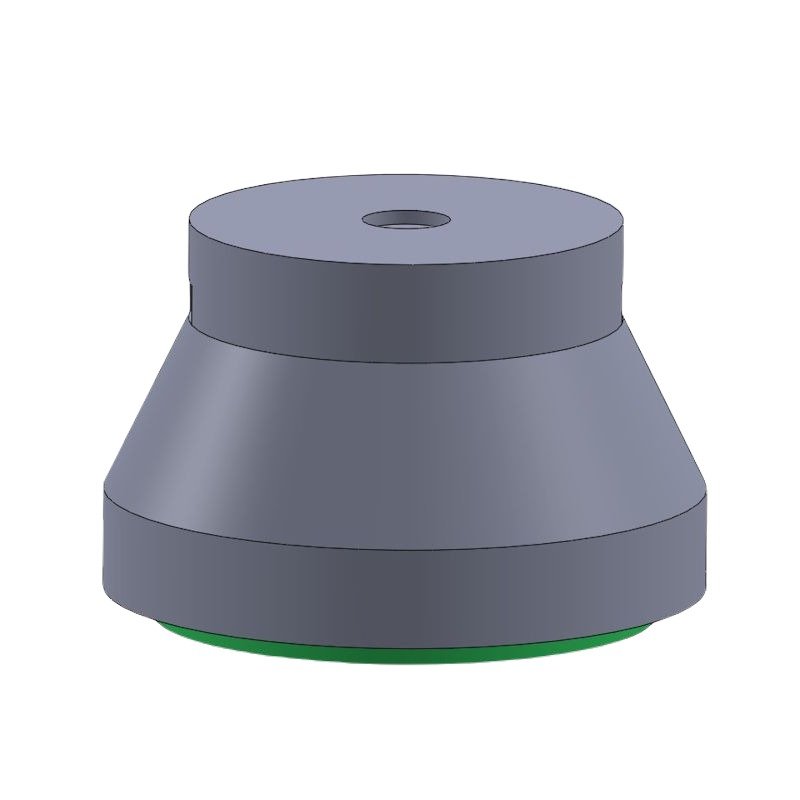

DR1-h-100-FG-GR
Model
Description
DYNEMECH Series DR-100 are suitable for machines having tapped hole in the base. The bolt rests over the dimple provided on the top face of the mount. Dimple size is provided as per the bolt diameter in the machine base.
Application
Very Heavy and long bed machines, long machining centres, planners etc.
Technical Data
Load Capacity Kg/pc
1200
d (mm)
87
Dia D (mm)
109
H (mm)
100
Bottom pad Type
Dh
Bottom pad Thickness (mm)
15
Coeff. of Friction against Concrete
0.6
Natural Frequency at Max. Load (Hz)
45
Temperature Range (°C)
From -16 to 90
